Optical Drive Eject Button
The optical drive eject button is mounted to the front of the chassis under the front bezel. It has a cable
that plugs into the back of the optical drive.
1.
Prepare the computer for disassembly
2.
Remove the access panel
3.
Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel
5.
Disconnect the cable from the rear of the optical drive.

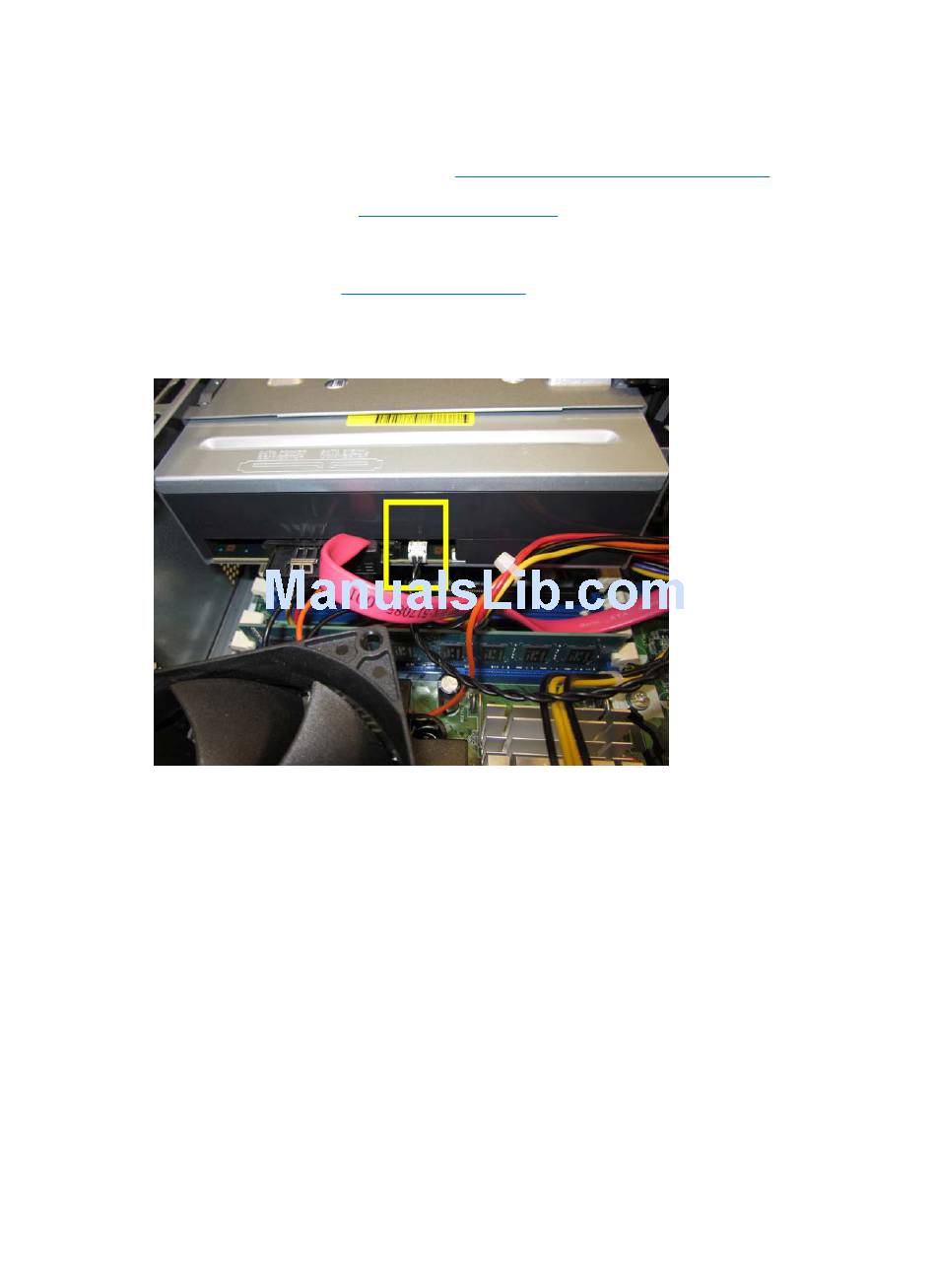

Figure 6-17
(Preparation for Disassembly on page
(Access Panel on page
(Front Bezel on page
Optical drive eject button cable
43).
44).
Optical Drive Eject Button
42).
107
