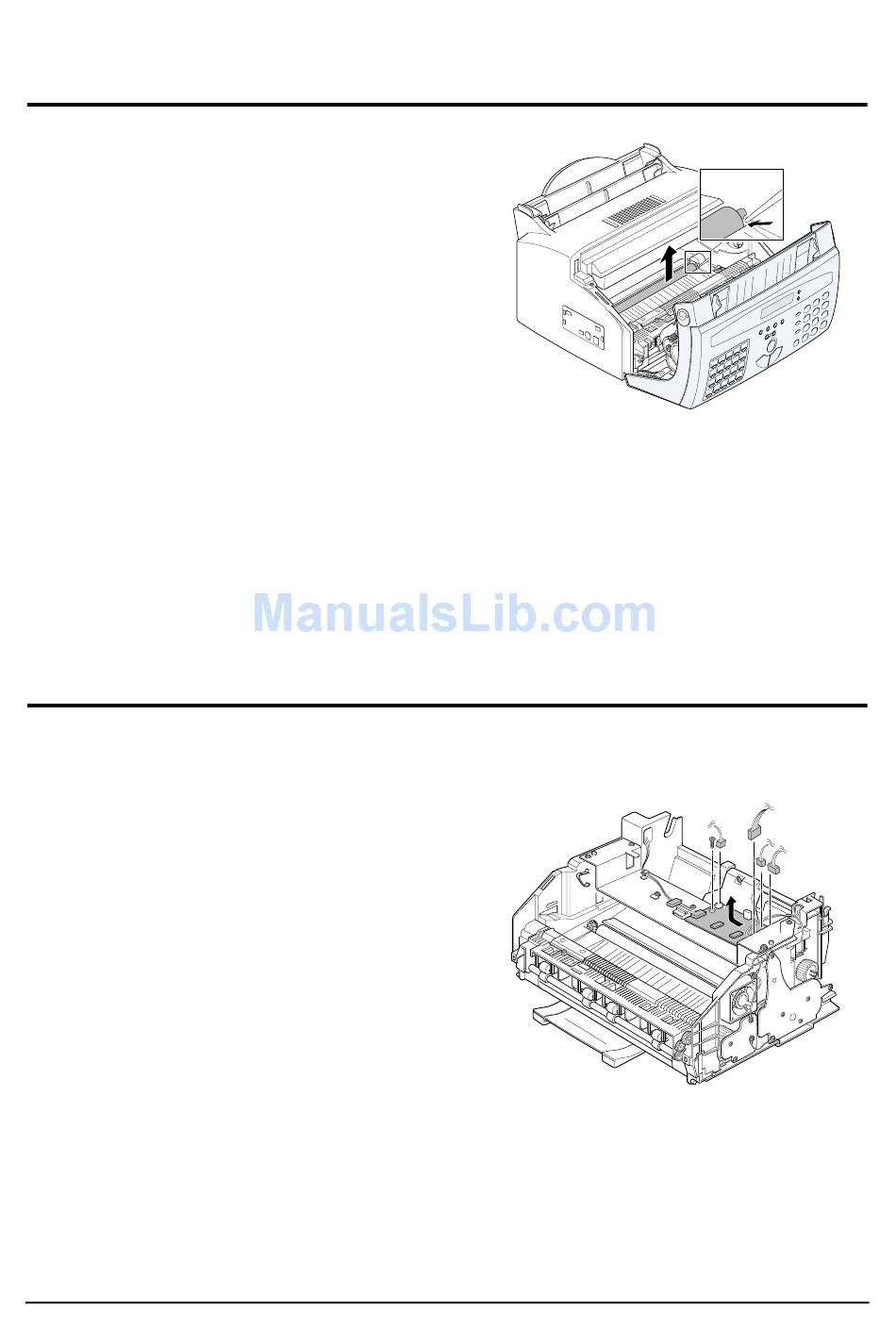

3-17 Transfer roller

1. Pull the cover release button on both sides of the
machine, and open the front cover.
2. Lift the transfer roller using a proper tool (-Driver) and
take out the roller.
3-18 Engine board
1. Before you remove the Engine board, you should
remove:
– All covers (see page 3-3, 3-9)
– LSU (see page 3-10)
2. Unplug five connectors and remove one screw from
the engine board, then remove the board.
