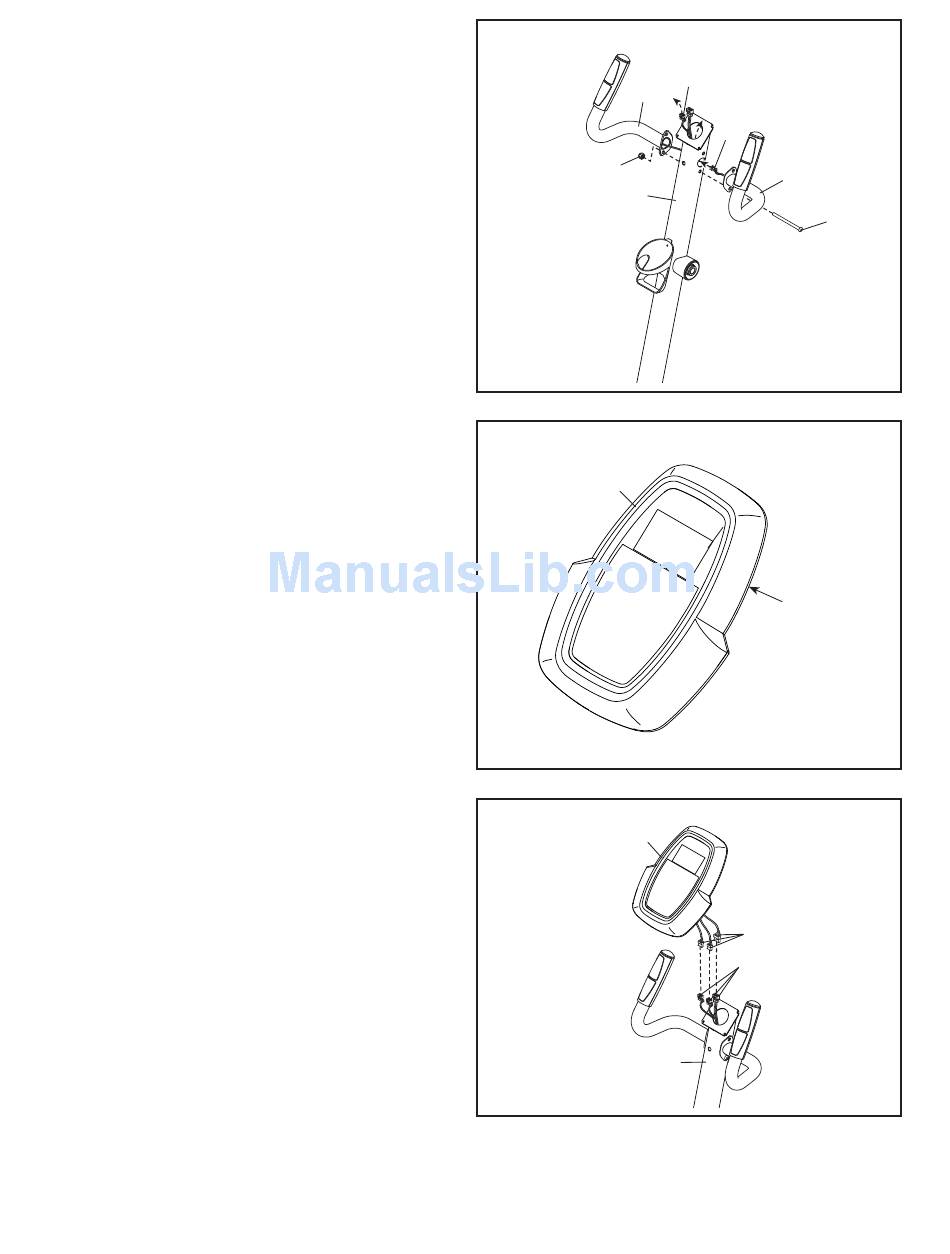

5. Identify the Left and Right Handlebars (85, 86),
which are marked with "Left" and "Right" stickers.
While a second person holds the Left and Right
Handlebars (85, 86) near the Upright (2), insert
the Sensor Wires (84) into the holes in the
Upright and pull them upward out of the Upright.
Tip: Avoid pinching the wires. Attach the Left
and Right Handlebars (85, 86) to the Upright (2)
with an M8 x 77mm Bolt (79) and an M8 Locknut
(38). Do not tighten the Bolt yet.
Make sure that the M8 x 77mm Bolt (79) is
inserted through the bottom hole in the Left
and Right Handlebars (85, 86) and the
Upright (2).
6. The Console (23) can use four AA batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batter-
ies together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components.
Remove the battery cover from the back of the
Console (23), and insert batteries into the battery
compartment. Make sure to orient the bat-
teries as shown by the diagram inside the
battery compartment. Then, reattach the bat-
tery cover.
7. Untie and discard the wire tie on the Wire
Harness (73).
While a second person holds the Console (23)
near the Upright (2), connect the console wires
to the Wire Harness (73) and to the Sensor
Wires (84).
