MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild dish soap. IMPORTANT: Keep liquids
away from the console and keep the console out of
direct sunlight. During storage, remove the batter-
ies from the console.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batteries.
See assembly step 6 on page 8 for replacement
instructions.
If the handgrip heart rate monitor does not function
properly, see step 5 on page 15.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
See EXPLODED DRAWING A on page 22. Using a
flat screwdriver, remove the Top Shield (41).

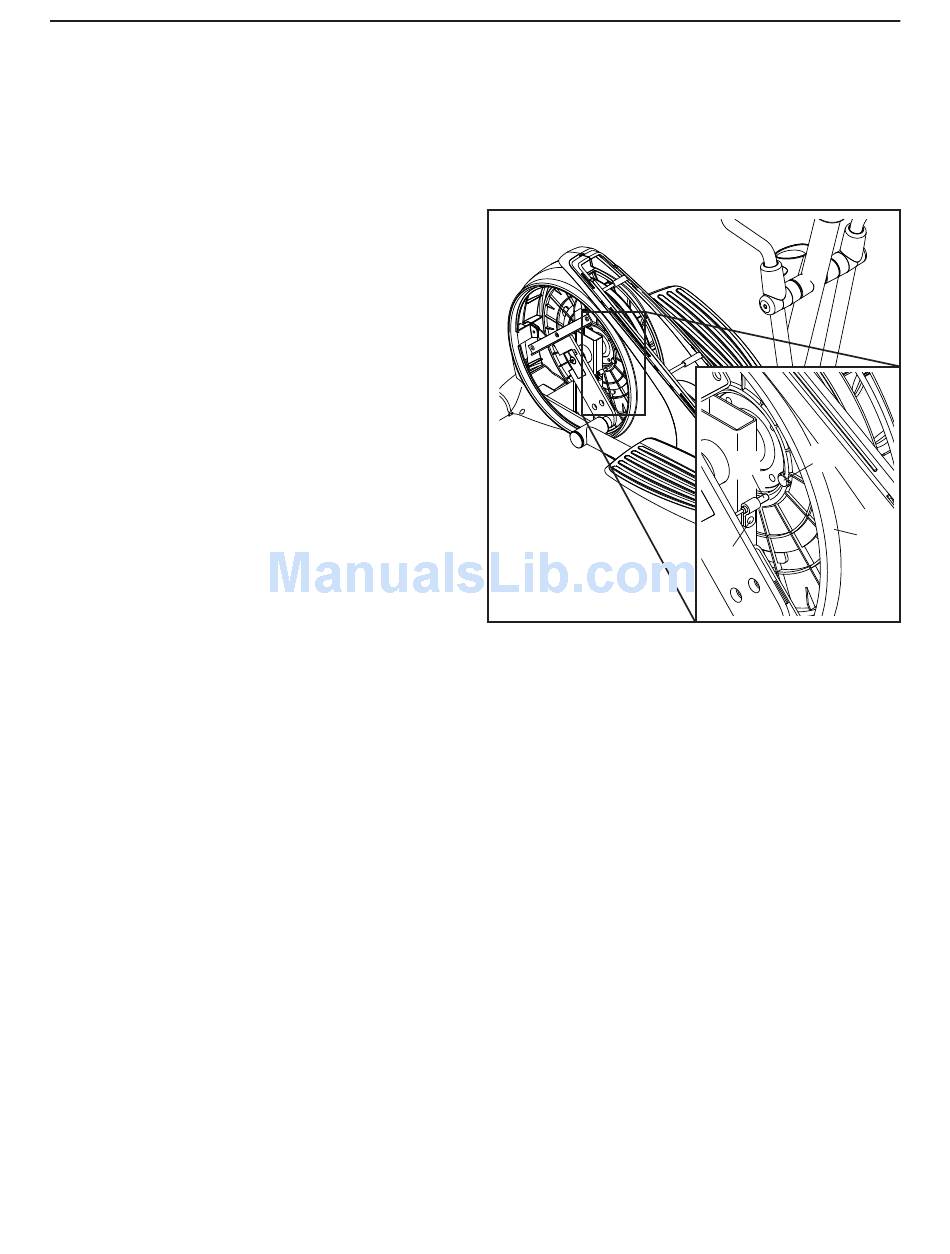

Note: For clarity, the right pedal disc is shown removed
in the drawing below.
Locate the Reed Switch (53). Loosen, but do not
remove, the M4 x 16mm Self-tapping Screw (52).
Next, rotate the Pulley (61) until a Magnet (58) is
aligned with the Reed Switch (53). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Self-tapping Screw (52).
Rotate the Pulley for a moment.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the top shield.
17
58
53
61
52
