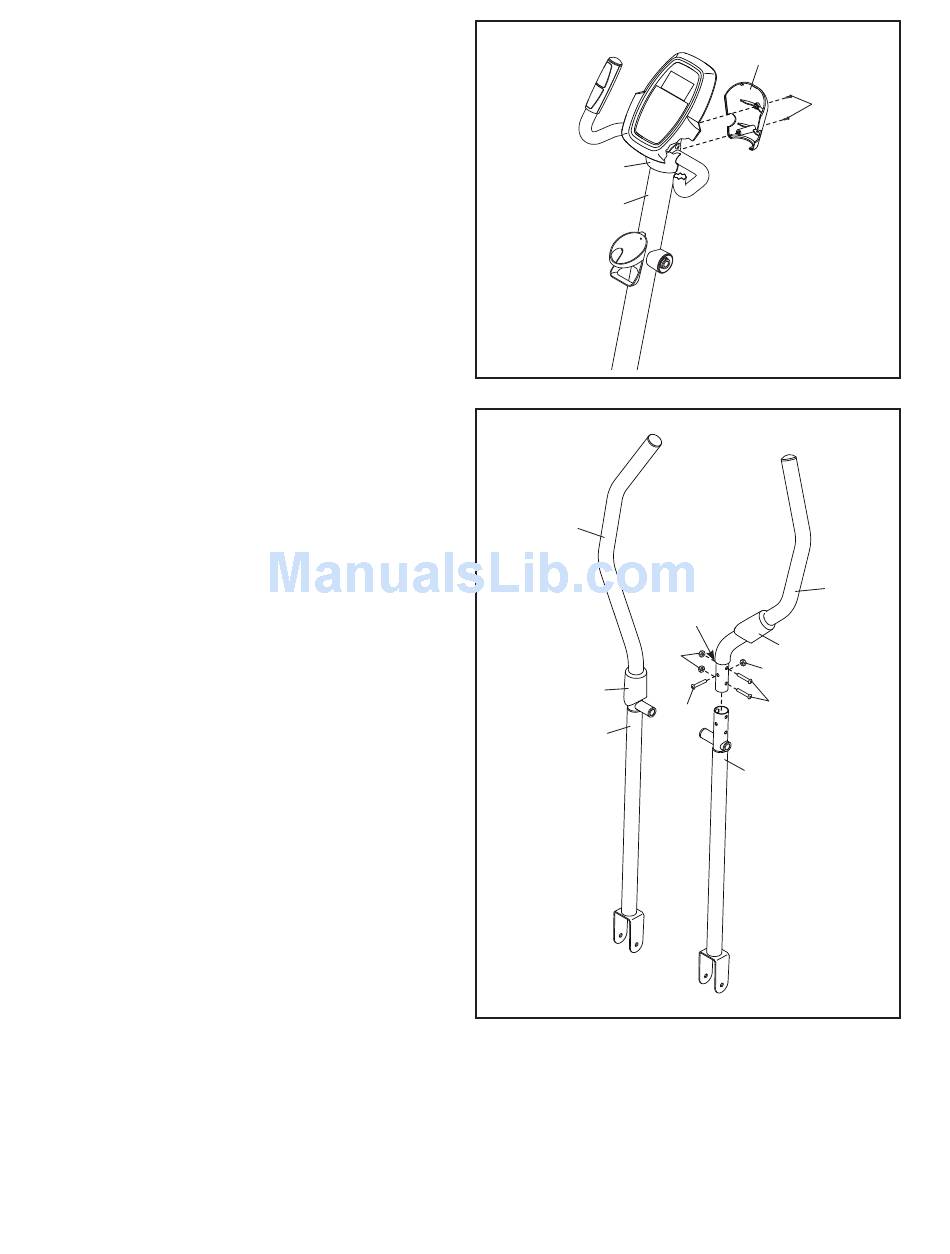

10. Attach the Front Upright Cover (81) to the
Upright (2) and the Rear Upright Cover (75) with
two M4 x 16mm Self-tapping Screws (52).
11. Identify the Right Upper Body Arm (8), which is
marked with an "R" sticker.
Slide an Upper Body Arm Cover (28) upward
onto the Right Upper Body Arm (8).
Slide the Right Upper Body Arm (8) onto an
Upper Body Leg (5).
Tip: Have a second person hold the Upper
Body Arm Cover (28) while you perform this
action:
Attach the Right Upper Body Arm (8) to the
Upper Body Leg (5) with three M8 x 41mm Bolts
(50) and three M8 Locknuts (38). Make sure
that the Locknuts are inside the hexagonal
holes.
Assemble the Left Upper Body Arm (6) and
the other Upper Body Leg (5) in the same
way.
10
75
2
11
6
28
5
10
81
52
Hexagonal
Holes
28
38
38
50
50
5
8
