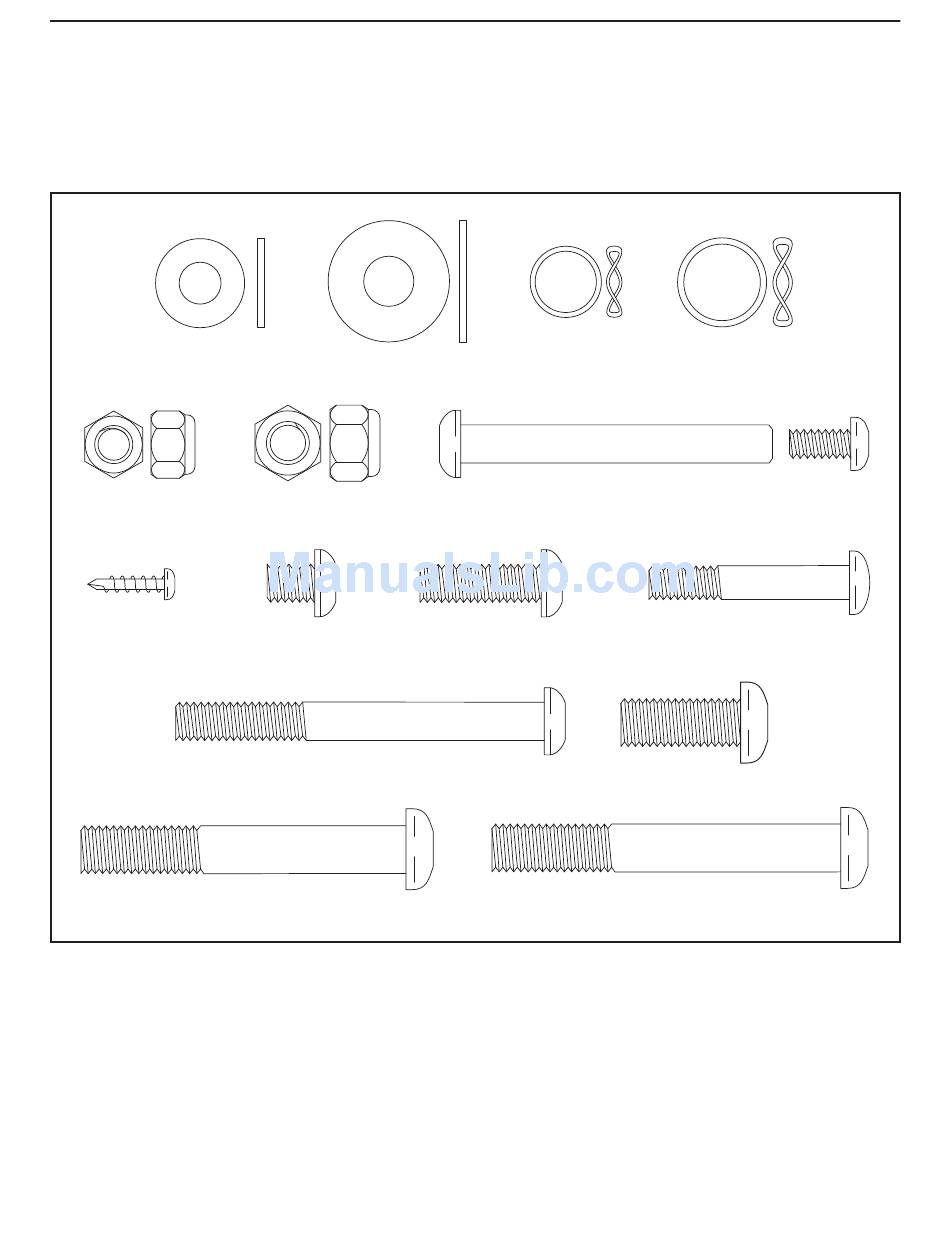

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled.
M8 Washer Small Wave
Large Wave
M10
(55)–2 Washer (69)–2
Washer (76)–2
Washer (35)–2
M6 Bolt Set (25)–2
M8 Locknut
M10 Locknut
(38)–8
(33)–2
M4 x 16mm
M8 x 10mm M8 x 25mm
M8 x 41mm Bolt (50)–6
Self-tapping
Screw (27)–6 Screw (56)–2
Screw (52)–8
M8 x 77mm Bolt (79)–2
M10 x 25mm
Screw (40)–2
M10 x 73mm Bolt (7)–2
M10 x 68mm Bolt (34)–4
5
