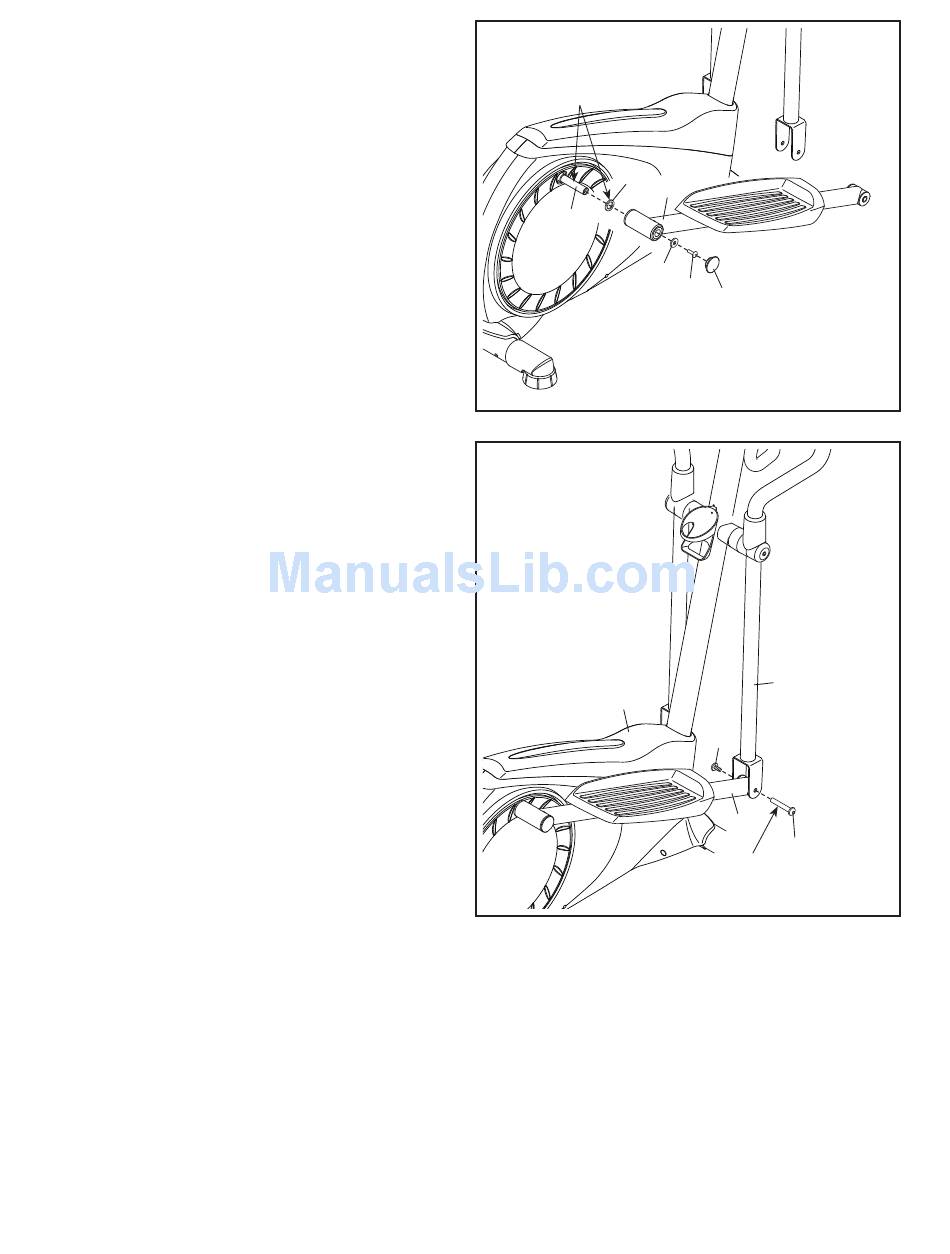

14. Apply a small amount of grease to the axle on
the Right Crank Arm (16) and to a Large Wave
Washer (76).
Slide the Large Wave Washer (76) and the Right
Pedal Arm (12) onto the axle on the Right Crank
Arm (16).
Slide an M10 Washer (35) onto an M10 x 25mm
Screw (40), and tighten the Screw into the axle.
Then, press a Pedal Arm Cap (74) into the Right
Pedal Arm (12).
Repeat this step on the other side of the
elliptical.
15. Apply a small amount of grease to an M6 Bolt
Set (25).
Hold the end of the Right Pedal Arm (12) inside
the bracket on the right Upper Body Leg (5).
Attach the right Upper Body Leg (5) to the Right
Pedal Arm (12) with the M6 Bolt Set (25). Do
not overtighten the Bolt Set; the right Upper
Body Leg must pivot freely.
Repeat this step on the other side of the
elliptical.
See step 3. Tighten the M10 x 73mm Bolts (7)
and press the Top Shield (41) into place.
16. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
14
Grease
76
16
15
41
12
12
35
40
74
5
25
12
25
Grease
