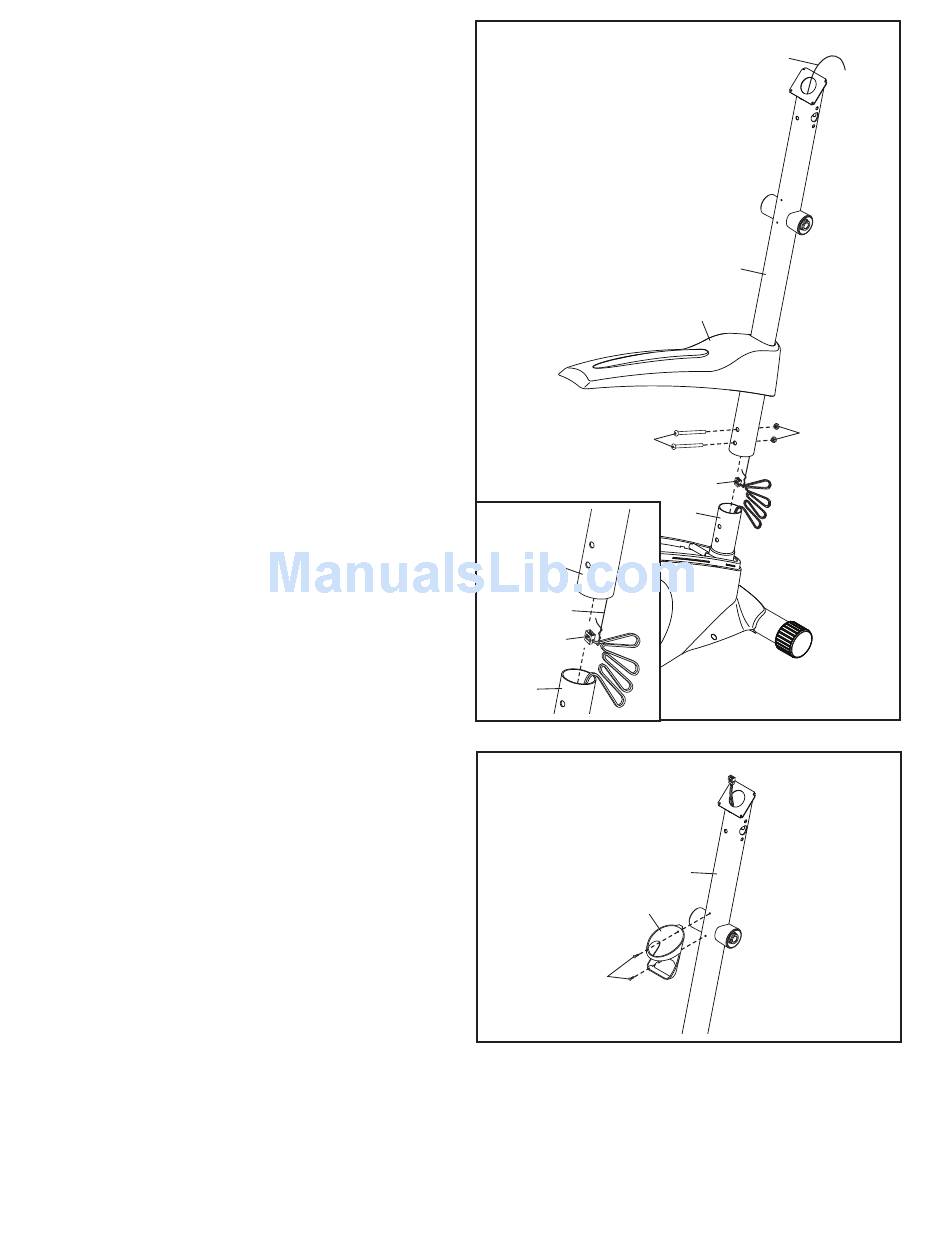

3. Orient the Upright (2) and the Top Shield (41)
as shown. Slide the Top Shield upward onto the
Upright.
Have a second person hold the Upright (2) and
the Top Shield (41) near the Frame (1).
See the inset drawing. Locate the wire tie in
the Upright (2). Tie the lower end of the wire tie
to the Wire Harness (73). Next, pull the upper
end of the wire tie upward out of the top of the
Upright.
Tip: To prevent the Wire Harness (73) from
falling into the Upright (2), secure the Wire
Harness with the wire tie.
Slide the Upright (2) onto the Frame (1).
Tip: Avoid pinching the Wire Harness (73).
Attach the Upright (2) with two M10 x 73mm
Bolts (7) and two M10 Locknuts (33). Do not
tighten the Bolts yet.
Slide the Top Shield (41) downward to the
Frame (1). Do not press the Top Shield into
place yet.
4. Attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Self-tapping
Screws (52).
3
Avoid pinching the
Wire Harness (73)
7
2
Wire Tie
73
1
4
29
52
7
Wire Tie
2
41
33
73
1
2
