Pro-Form 220 Zle Elliptical User Manual page 11

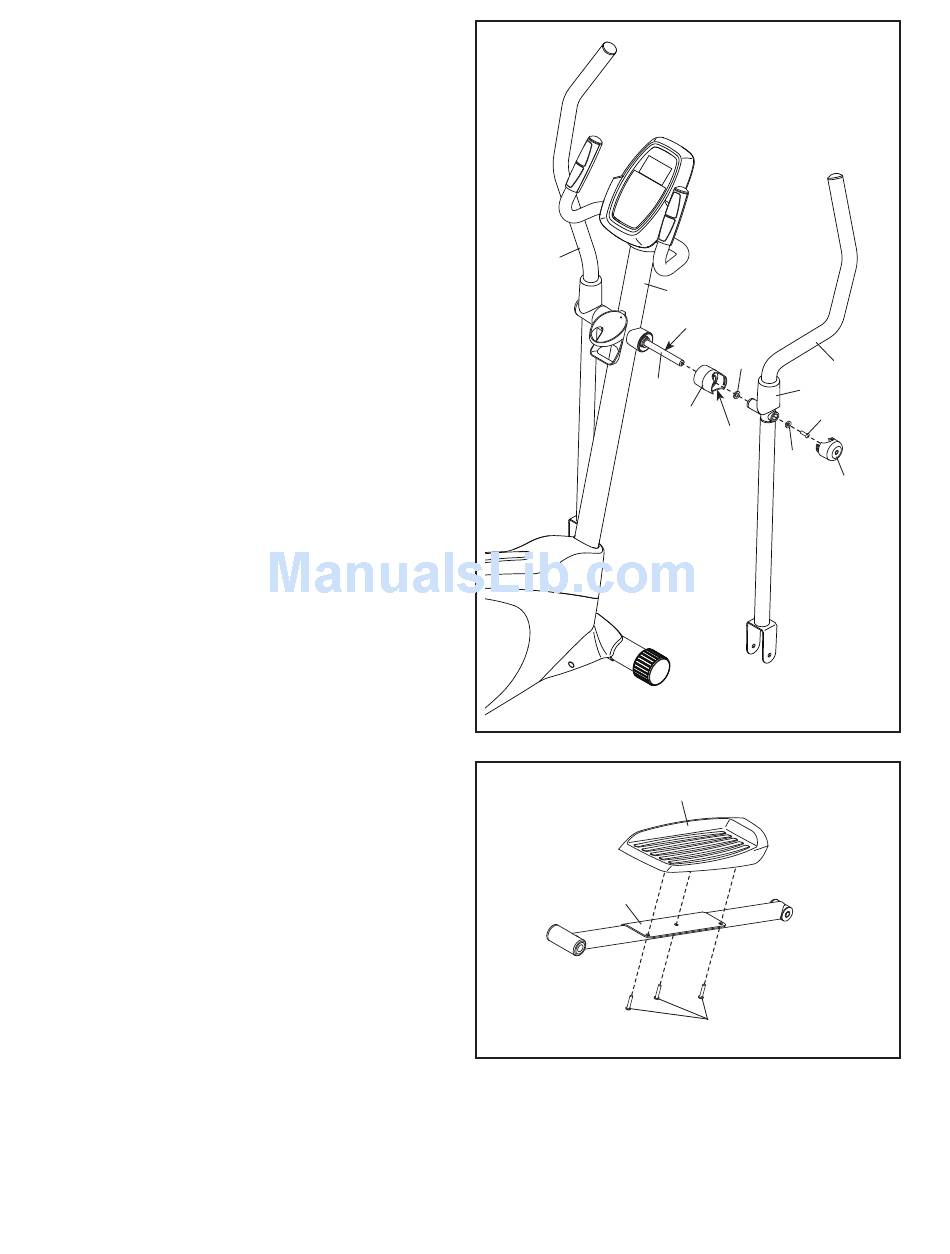

12. Insert the Pivot Axle (26) into the Upright (2), and
center the Pivot Axle.
Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to both ends of the Pivot Axle (26).
Orient an Upper Body Arm Spacer (47) so that
the arrow points toward the floor. Slide the Upper
Body Arm Spacer onto the right side of the Pivot
Axle (26). Repeat this action on the other side
of the elliptical.
Slide a Small Wave Washer (69) onto the right
side of the Pivot Axle (26). Then, slide the Right
Upper Body Arm (8) onto the Pivot Axle. Repeat
this action on the other side of the elliptical.
Tighten an M8 x 25mm Screw (56) and an M8
Washer (55) into each end of the Pivot Axle (26)
at the same time.
Slide the right Upper Body Arm Cover (28)
upward. Then, press the tabs on an Axle Cap
(46) into the Upper Body Arm Spacer (47).
Repeat this action on the other side of the
elliptical.
Slide the Upper Body Arm Cover (28) downward
to cover the M8 x 41mm Bolts (not shown).
Repeat this action on the other side of the
elliptical.
13. Identify the Right Pedal (14) and the Right Pedal
Arm (12), which are marked with "Right" stickers,
and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with three M8 x 10mm Screws (27).
Assemble the Left Pedal (not shown) and the
Left Pedal Arm (not shown) in the same way.
12
6
13
12
11
2
Grease
69
26
28
56
47
Arrow
55
14
27
8
46
