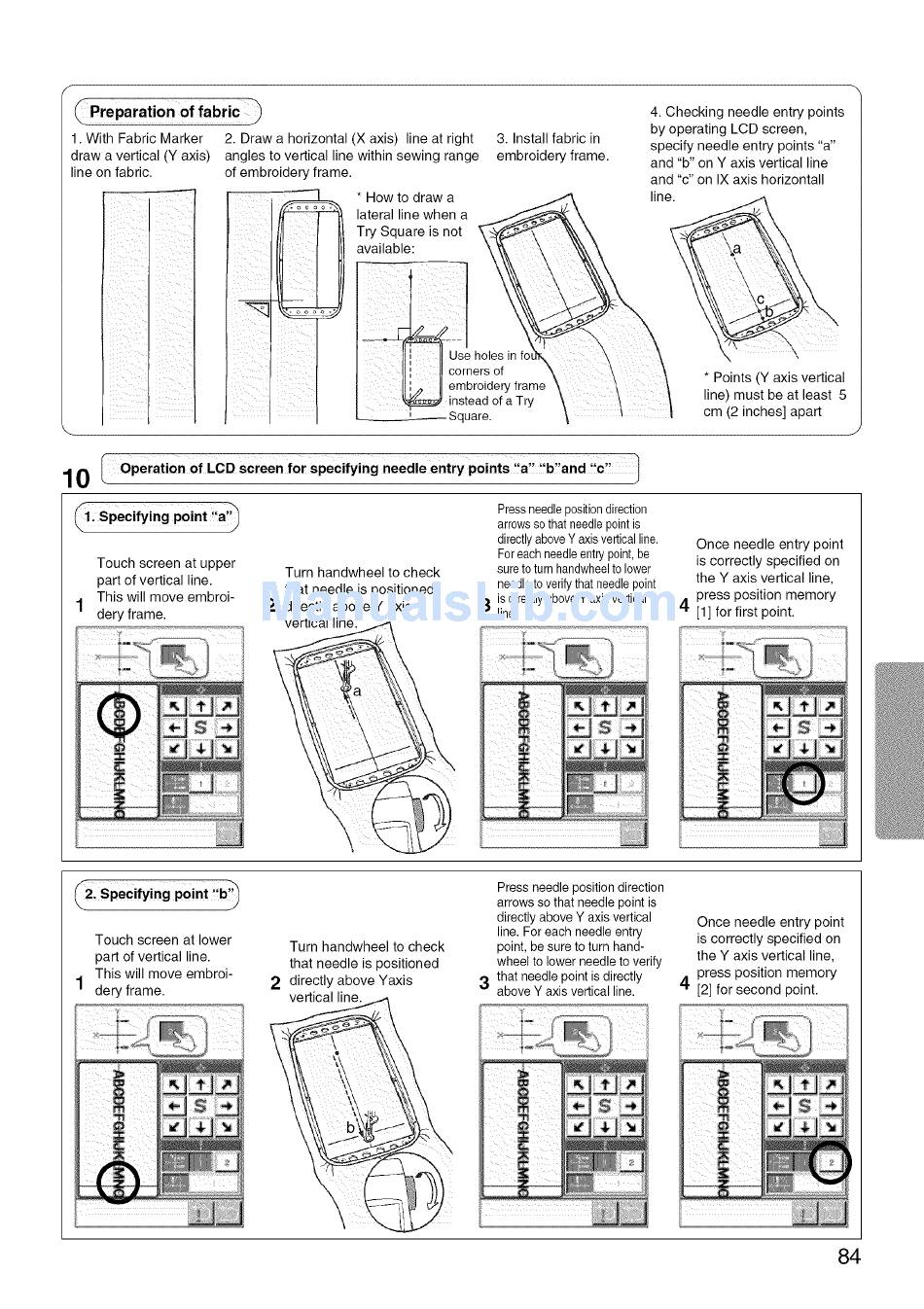

1. With Fabric Marker
draw a vertical (Y axis)
line on fabric.
2. Draw a horizontal (X axis) line at right
angles to vertical line within sewing range
of embroidery frame.
i
I
!
I
, _
i
!
1
3. Install fabric in
embroidery frame.
* How to draw a
lateral line when a
Try Square is not
available:
IIUse ho es
I1 corners of
/7 IIembroidery frame
_ _ instead of a Try
_ Square.
4. Checking needle entry points
by operating LCD screen,
specify needle entry points "a"
and "b" on Y axis vertical line
and "c" on IX axis horizontall
line.
* Points (Y axis vertical
line) must be at least 5
cm (2 inches] apart
10 [
operation of LCD screen for specifying needle entry points "a" "b"and "€"
_11 sPecifYing poin t !'ai_
Touch screen at upper
part of vertical line.
1 This will move embroi-
dery frame.
s
Turn handwheel to check
that needle is positioned
2 directly above Y axis
vertical line.
Pressneedlepositiondirection
arrows so thatneedlepointis
directlyaboveYaxisverticalline.
Foreachneedleentrypoint,be
sureto turnhandwheel to lower
needle to verifythatneedlepoint
3 is directlyaboveYaxisvertical
line.
¢ .... ..,
Once needle entry point
is correctly specified on
the Y axis vertical line,
press position memory
4 [1] for first point.
I;
: S
_21 SPecifying point i'b_
Touch screen at lower
part of vertical line.
This will move embroi-
l
dery frame.
_d
Turn handwheel to check
that needle is positioned
2 directly above Yaxis
vertical line.
Press needle position direction
arrows so that needle point is
directly above Y axis vertical
line. For each needle entry
point, be sure to turn hand-
wheel to lower needle to verify
3 that needle point is directly
above Y axis vertical line.
i , ii ii _' .......
Once needle entry point
is correctly specified on
the Y axis vertical line,
press position memory
4 [2] for second point.
84
