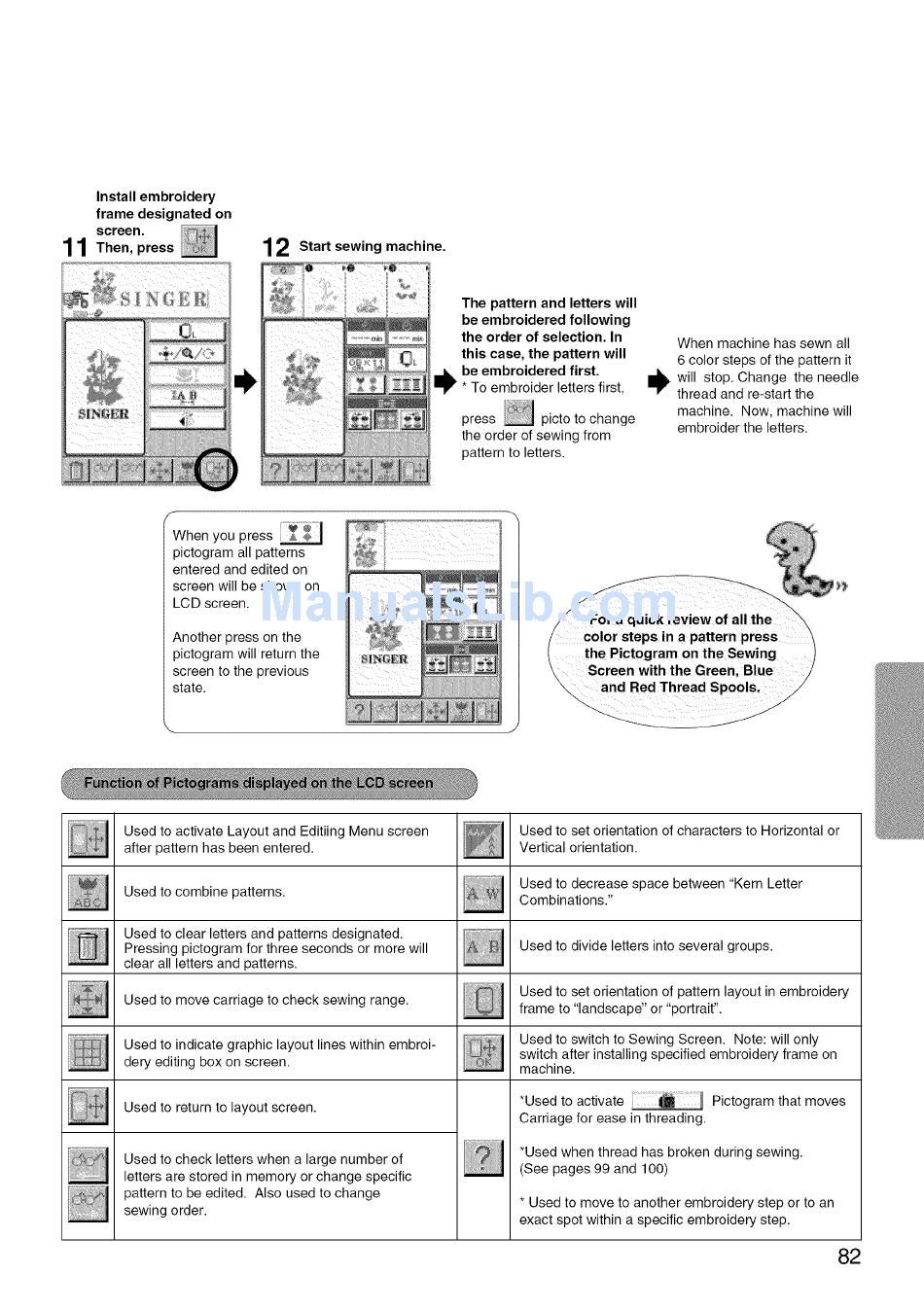

Install embroidery
frame designated on
screen.
11
Then, press
12
Start sewing machine.
The pattern and letters will
be embroidered following
the order of selection. In
this case, the pattern will
i_be embroidered first.
* To embroider letters first,
press _ picto to change
the order of sewing from
pattern to letters.
When machine has sewn all
6 color steps of the pattern it
i_ will stop. Change the needle
thread and re-start the
machine. Now, machine will
embroider the letters.
f
When you press
pictogram all patterns
entered and edited on
screen will be shown on
LCD screen.
Another press on the
pictogram will return the
screen to the prevtous
state.
Used to activate Layout and Editiing Menu screen
after pattern has been entered.
Used to set orientation of characters to Horizontal or
Vertical orientation.
Used to combine patterns.
Used to decrease space between "Kern Letter
Combinations."
Used to clear letters and patterns designated.
Pressing pictogram for three seconds or more will
clear all letters and patterns.
Used to move carriage to check sewing range.
Used to divide letters into several groups.
Used to set orientation of pattern layout in embroidery
frame to "landscape" or "portrait".
Used to indicate graphic layout lines within embroi-
dery editing box on screen.
Used to switch to Sewing Screen. Note: will only
switch after installing specified embroidery frame on
machine.
Used to return to layout screen.
*Used to activate Pictogram that moves
Carriage for ease in threading.
Used to check letters when a large number of
letters are stored in memory or change specific
pattern to be edited. Also used to change
sewing order.
*Used when thread has broken during sewing.
(See pages 99 and 100)
* Used to move to another embroidery step or to an
exact spot within a specific embroidery step.
82
