Audio Interface And Control Surface - Zoom R16 Operation Manual

Audio interface and control surface

This section explains how to set up and use the functions of the R16 audio interface and
control surface with DAW software installed on your computer.

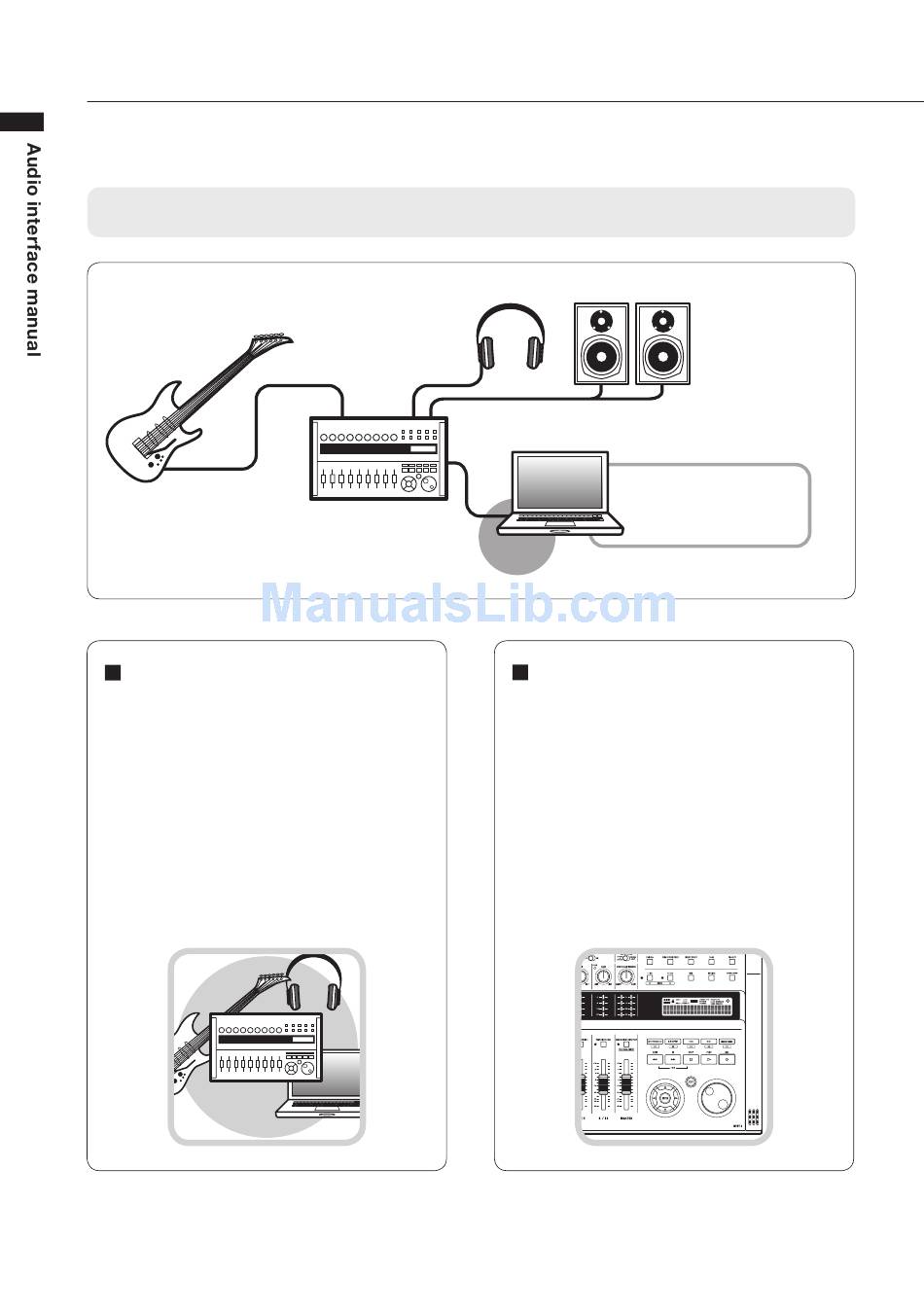

Functions of the audio interface and control surface
[INPUT 1-8] jacks
Guitars and other
musical instruments,
internal stereo mic
Audio interface
The various input and output jacks of the
R16 can be used as a Hi-Speed USB (USB
2.0) audio interface with support for 8 ins
and 2 outs and input and output quality up
to 24-bit/96kHz. Effects can also be used
when the sampling rate is 44.1 kHz, and
the unit can be powered by the computer's
USB bus.
3
[PHONES] jack
Playback device like
headphones or an
audio system
R16
USB Cable
Windows/Mac
DAW software
Cubase LE 4, etc.
Audio driver
Control surface functions
The on-board control surface functions can
be used to control DAW software on your
computer via USB. Transport operations,
including playback, recording and stopping,
and physical control of the DAW faders
are possible. Furthermore, various other
DAW software functions can be mapped
to the F1~F5 keys. (The available functions
depend on the DAW software used.)
[OUTPUT] jacks
Stereo system,
speakers with built-in
amplifiers, etc.
