Cubase LE 4
Startup Guide
Windows Vista / XP

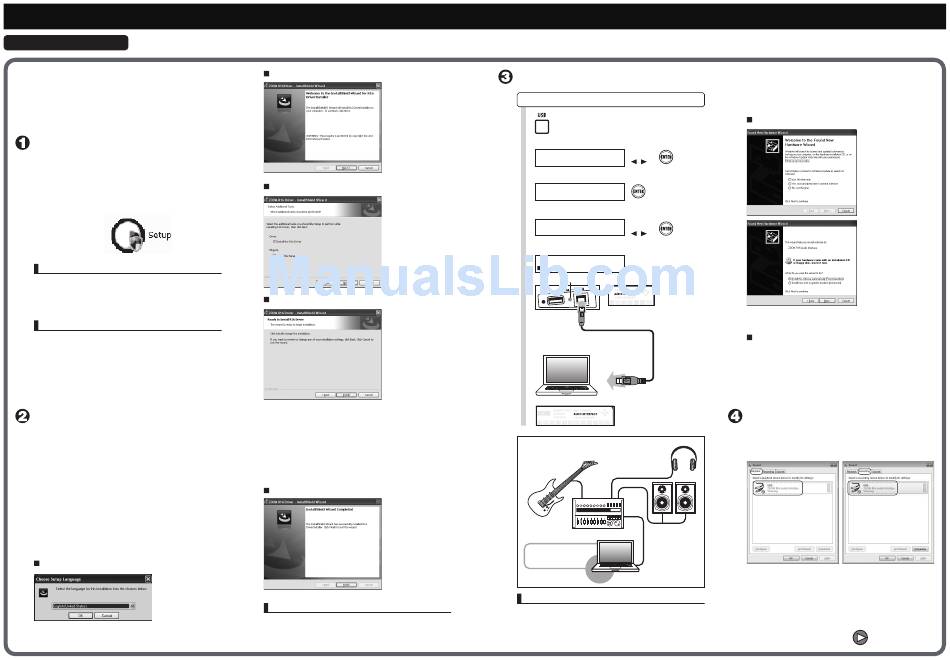

This Cubase LE 4 Startup Guide explains how to install Cubase LE 4 on a computer, make connections and other settings for the R16.
To connect the R16 to a computer running Windows Vista
(or Windows XP) and to enable audio input/output, proceed
as follows. The installation description uses Windows Vista
as an example.
Insert the supplied "Cubase LE 4" DVD-ROM into
the DVD drive of the computer.
When you insert the DVD-ROM, a screen asking what you want
to do appears. Select "Open folder to view files".
When the contents of the DVD-ROM are shown, open the
Cubase LE 4 for Windows folder by double-clicking on it, and
then double-click the executable "Setup" ("Setup.exe") file to start
the installation process.
HINT
If nothing happens when you insert the DVD-ROM, open the Start
menu and select "Computer" ("My Computer" in Windows XP). Then
double-click the "Cubase LE 4" DVD-ROM icon to display the contents
of the DVD-ROM.
NOTE
To use Cubase LE 4 continuously, it is necessary to have the User
Registration and the Software License Authentication. The Registration
and Authentication are available to be processed when Cubase LE 4 is
activated on a computer connected to the internet. Click "Register now"
which is shown when activating, enter all the items. If it is not recognized
as Registration, Cubase LE 4 can only be used for a limited period after
installation.
"PDF Manuals and Drivers" CD-ROM supplied with R16
Drivers>Windows "Setup.exe"
or
Download the latest "ZOOM R16 Audio Driver" from
ZOOM homepage (http://zoom.co.jp)
and install it on a computer.
ZOOM R16 Audio Driver software is required to enable use of
Cubase LE 4 for audio input and output with a computer. Refer
to the read_me file included in the download package for
instructions on how to install the driver correctly.
[How to install the driver]
Double-click Setup.exe file to activate the installer.
Set language selection
Choose language and
click [OK].
Start InstallShield Wizard
Click [Next] to start
installation.
Driver-Plug In selection screen
If you use SONER,
s e l e ct I n s t a l l a t i o n
Plug In for Control
Surface.
Ready to install the program
Click [Install] to start
installation.
If a warning dialogue "Install software" appears, click [Continue].
If a warning dialogue "Windows security Driver Software Licensee
cannot be verified." appears, click [Install this driver software].
*A message "ZOOM R16 Audio Driver (No Response)" may appear,
but it is not a problem. Wait until it responds.
InstallShield Wizard was completed
Click [Complete] to
finish installation.
NOTE
We recommend you upgrade the system software to the latest version on
the R16. An R16 operated on an old system may not be recognized
correctly. The latest version can also be downloaded from our homepage.
Set and connect the R16 to the computer
using a USB cable.
How to set and connect the R16
1
Press.
2
>AUDIO INTERFACE
Select
Menu moves
U S B 1 / 3
Press.
> A U D I O I N T E R F A C E
3
Execute.
A U D I O I N T E R F A C E
Press.
E n t e r ?
4
Select of how to continue settings.
S E T T I N G
Menu moves
Press.
[ C O N T I N U E ] R E S E T
5
Connect USB cable to the R16
S a m p l e R a t e = 4 8 . 0 H z
s : S o l o
[DEVICE] flashes
USB indicator
Rate=48.0Hz
AUDIO INTERFACE flashes
6
Connect USB cable
to computer
INTERFACE flashes when the connection is complete Connection setting completed
Rate=48.0Hz
[INPUT 1-8]Jack [PHONES]Jack
Guitar, other instrument or Audio system,
built-in stereo mic headphones or other
playback equipment
R16
[OUTPUT]Jack
Windows PC
Audio components,
amp built-in
DAW software
speakers etc
Cubase LE 4 etc
USB cable
ZOOM R16 Audio Driver
NOTE
Use a high-quality USB cable and keep the connection as short as
possible. If USB bus power is supplied to the R16 via a USB cable
which is more than 3 meters in length, the low voltage warning
indication may appear.
When the connection is operated on the R16, it is recognized by
the computer.
If this is the first time to connect the R16, wait until the message
"Your devices are ready to use" appears.
Start to "Found New Hardware Wizard"
Choose [No, not this
t i m e ] o f W i n d o w s
Update and click[Next].
C h o o s e [ I n s t a l l t h e
software automatically]
and click [Next]to start
installation.
If a warning dialogue "Install hardware" appears, click [Continue].
"Found New Hardware Wizard completed"
Click [Finish] to complete installation.
When connected operation on the R16 side is finished, it is
recognized by the computer.
Connects the first time,Please wait until the message of "The
device was able to be prepared" is displayed.
Bring up the "Sound" window from the Control Panel
and make the input device setting for the computer.
To bring up the "Sound" window, select "Control Panel" from the
Start menu and click "Hardware and Sound", then click "Sound".
In the "Sound" window, verify that "R16 Audio Interface" is listed
under the Play and Record devices and that the device is
checked. (To switch between Play and Record, click the tabs at
the top of the window.)
If the device is not checked, right-click on the icon for the device
and click "Set as Default Device" so that a check mark appears.
Continued overleaf
