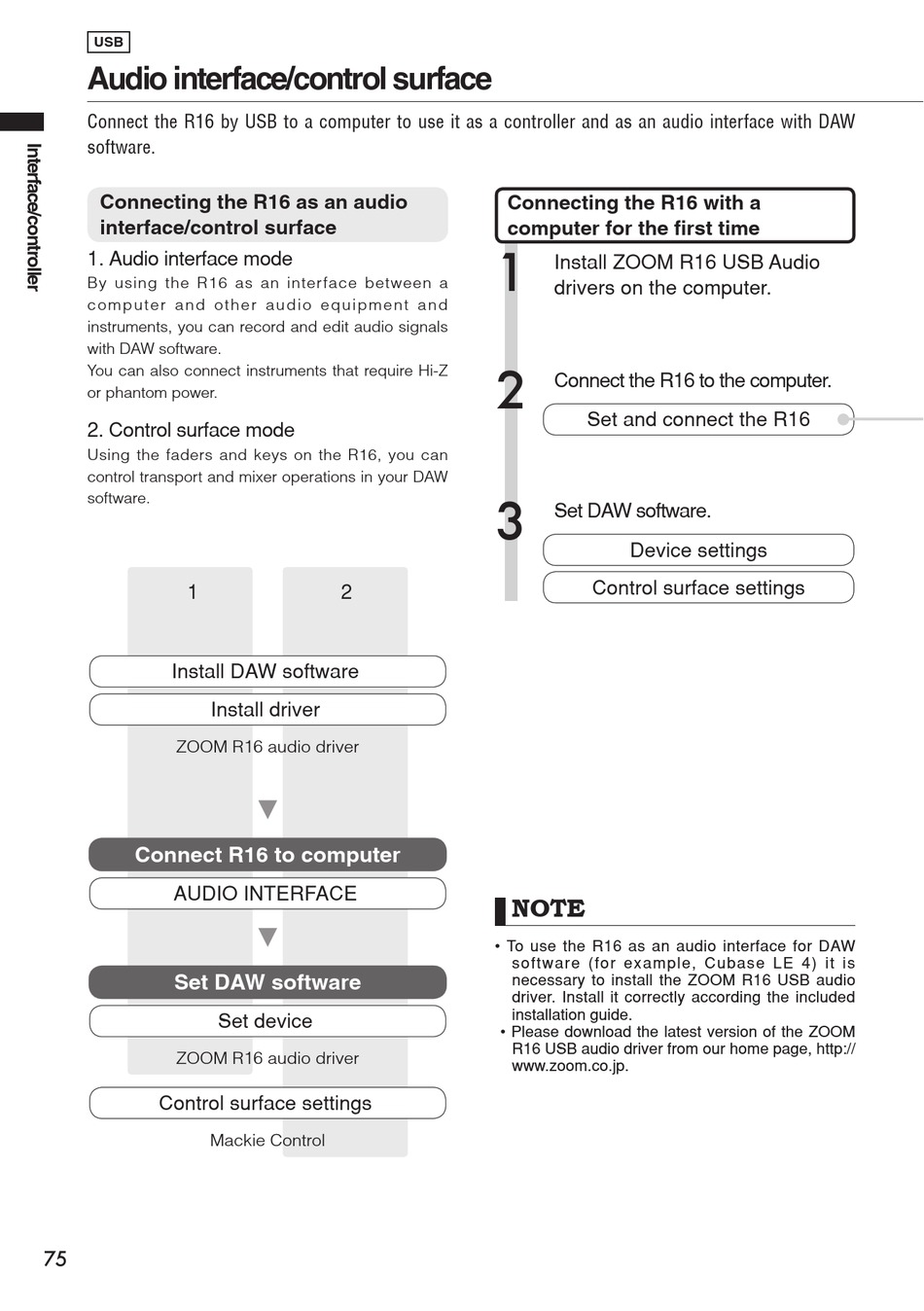

Audio Interface/Control Surface - Zoom R16 Operation Manual

USB

Audio interface/control surface

Connect the R16 by USB to a computer to use it as a controller and as an audio interface with DAW
software.
Connecting the R16 as an audio
interface/control surface
1. Audio interface mode
By using the R16 as an interface between a
c o m p u t e r a n d o t h e r a u d i o e q u i p m e n t a n d
instruments, you can record and edit audio signals
with DAW software.
You can also connect instruments that require Hi-Z
or phantom power.
2. Control surface mode
Using the faders and keys on the R16, you can
control transport and mixer operations in your DAW
software.
1
Install DAW software
Install driver
ZOOM R16 audio driver
Connect R16 to computer
AUDIO INTERFACE
Set DAW software
ZOOM R16 audio driver
Control surface settings
Mackie Control
75
2
Set device
Connecting the R16 with a
computer for the first time
1
Install ZOOM R16 USB Audio
drivers on the computer.
2
Connect the R16 to the computer.
Set and connect the R16
3
Set DAW software.
Device settings
Control surface settings
NOTE
software (for example, Cubase LE 4) it is
necessary to install the ZOOM R16 USB audio
driver. Install it correctly according the included
installation guide.
R16 USB audio driver from our home page, http://
www.zoom.co.jp.
