Token Ring Statistics

The Protocol Statistics Window

At the Protocol Statistics window
received by the MicroMMAC-T for a given protocol.
You can view statistics for the following protocols (note the corresponding
colors):
•
•
•
•
•
•
•
•
These protocol statistics are presented in numerical, bar graph, and pie chart
form.

Total and Delta Graph Display

You can choose whether to view the total count of protocol types (Total), or to
view the count of protocol types during the last polling interval set for NetSight
Element Manager (Delta).
To choose Delta or Total:
•
3-14

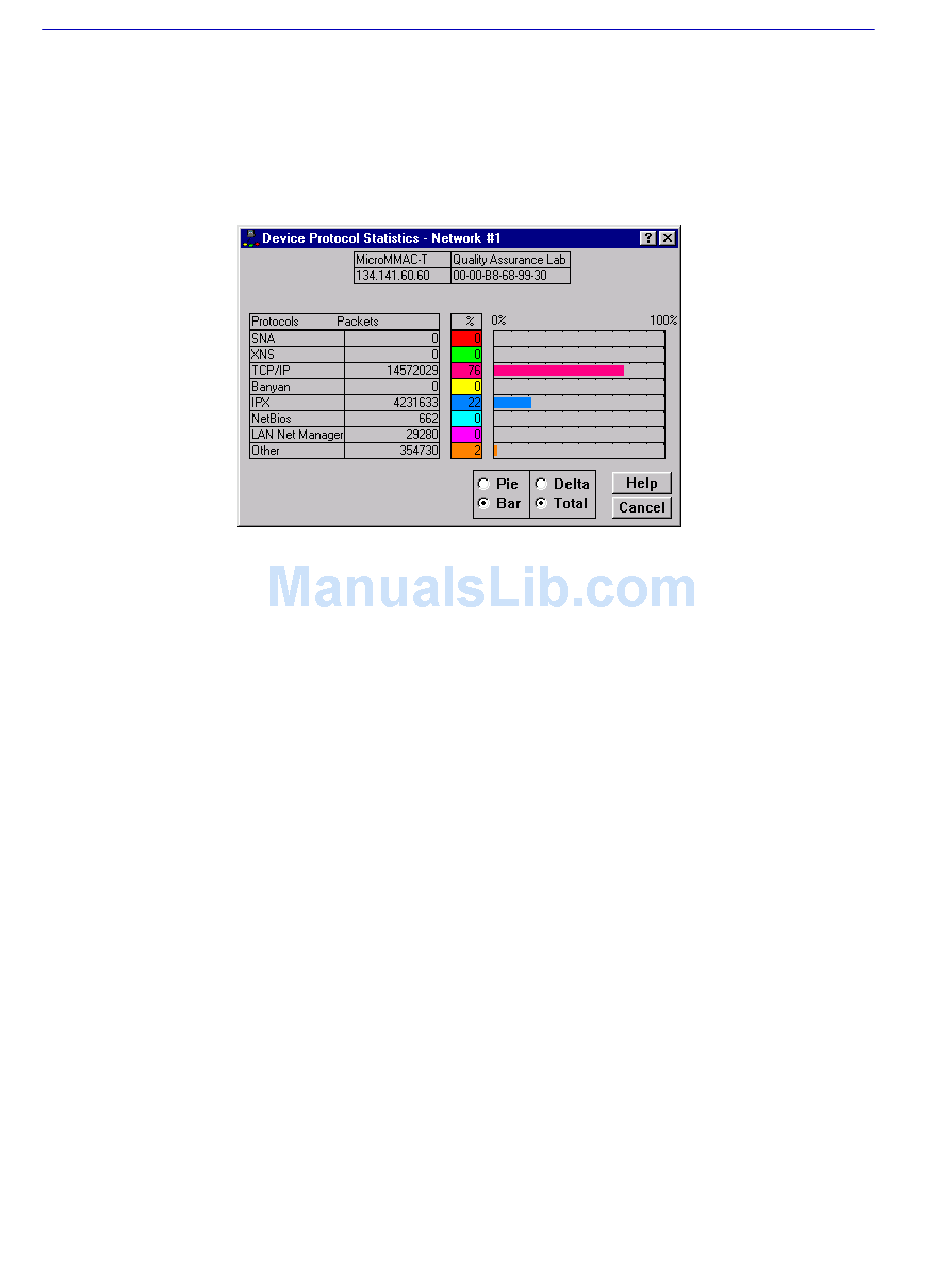

Figure 3-9. Protocol Statistics Window with Bar Graph
SNA™ (Red)
XNS™ (Green)
TCP/IP (Rose)
Banyan™ (Yellow)
IPX™ (Blue)
NetBios™ (Turquoise)
LAN Net Manager™ (Magenta)
All other protocols (Orange)
Click on the Delta radio button. The numbers to the left of the graphs will now
display the count of protocol types processed during the last polling interval.
The dynamic graphs to the right of the numbers give a color-coded real-time
view of the numerical count.
(Figure 3-9) you can see how many frames are
Network Level Statistics
