Token Ring Statistics
The Frame Size Window
At the Frame Size window,
on the ring network controlled by your MicroMMAC-T.
The frame sizes and corresponding colors are:
•
•
•
•
•
•
•
•
These frame size statistics are presented in numerical, bar graph, and pie chart
form.
Total and Delta Graph Display
You can choose whether to view the total count of frame sizes (Total), or to view
the count of frame sizes during the last polling interval set for NetSight Element
Manager (Delta).
To choose Delta or Total:
•
3-12
<<64 (Red)
64-127 (Green)
128-255 (Rose)
256-511 (Yellow)
512-1023 (Gray)
1024-2047 (Cyan)
2048-4095 (Magenta)
>>4095 (Orange)

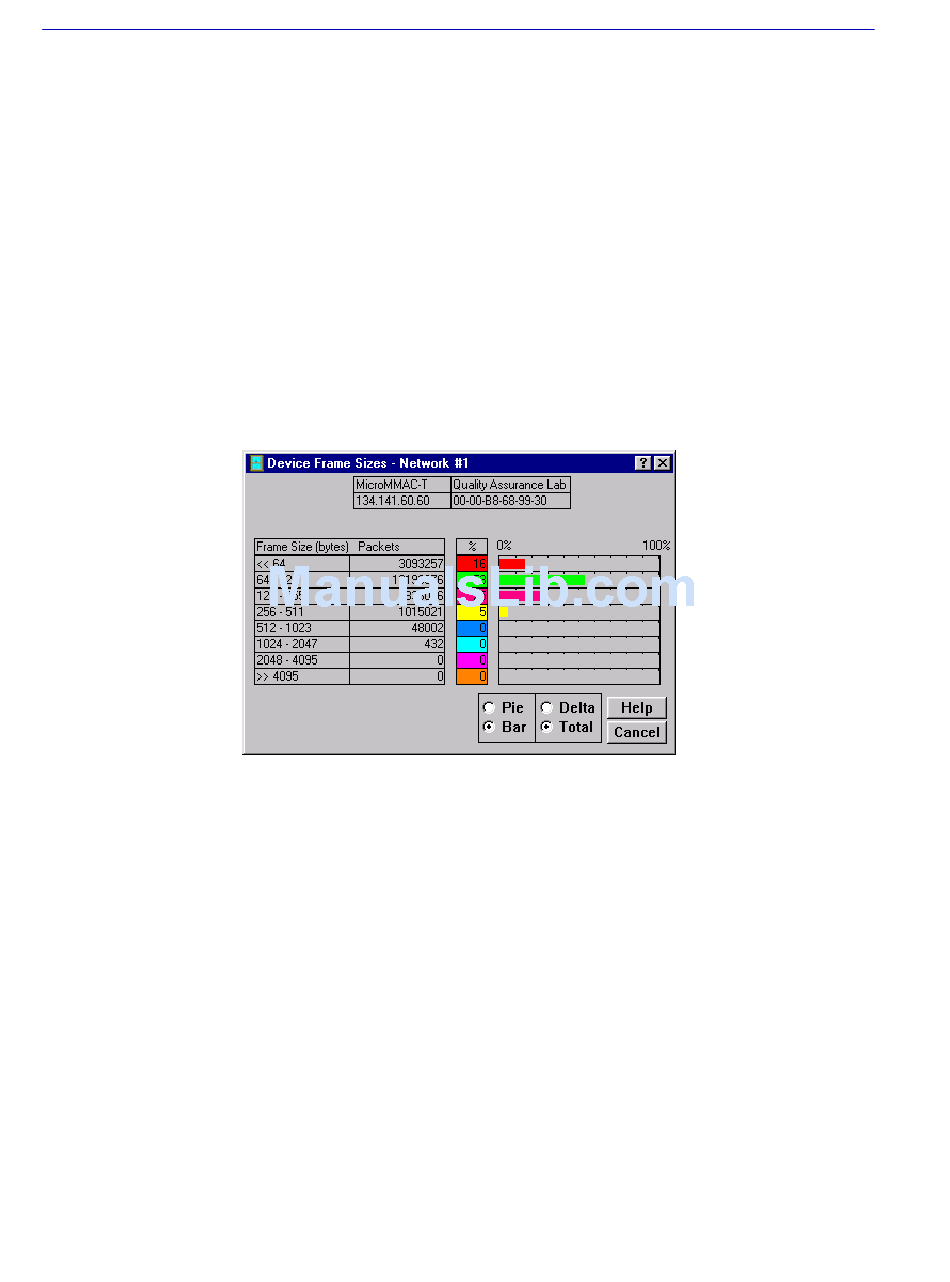

Figure 3-7. The Device Frame Sizes Window
Click on the Delta radio button. The numbers to the left of the selected graph
display the count of frame sizes processed during the last polling interval. The
dynamic bar graph or pie chart to the right of the numbers gives a color-coded
real-time view of the numerical count.
Figure
3-7, you can see the actual sizes of the frames
Network Level Statistics
