The MicroMMAC-T Chassis View
For a complete count on the total number of ports and the number of ports enabled and
inserted — including those not physically residing in the hub — see Network Statistics
NOTE
in Chapter 3.
X (Ring) of X (Configured Rings)
This field indicates the currently selected ring and the number of configured rings
in the hub.

Viewing Module Status

The Token Ring Board Status window
of a selected module in the HubSTACK. To access the Token Ring Board Status
window:
1. Click on the Module Index for the desired module. The Module menu will
2. Drag down to Status.... The Token Ring Board Status window will appear.

Token Ring Board Status Window Fields

Board Number
The HubSTACK Interconnect Bus port number on the MicroMMAC-T occupied
by the currently selected module.
Speed
The ring speed (4 or 16 MBits/sec) for which the module is configured.
2-20
appear.

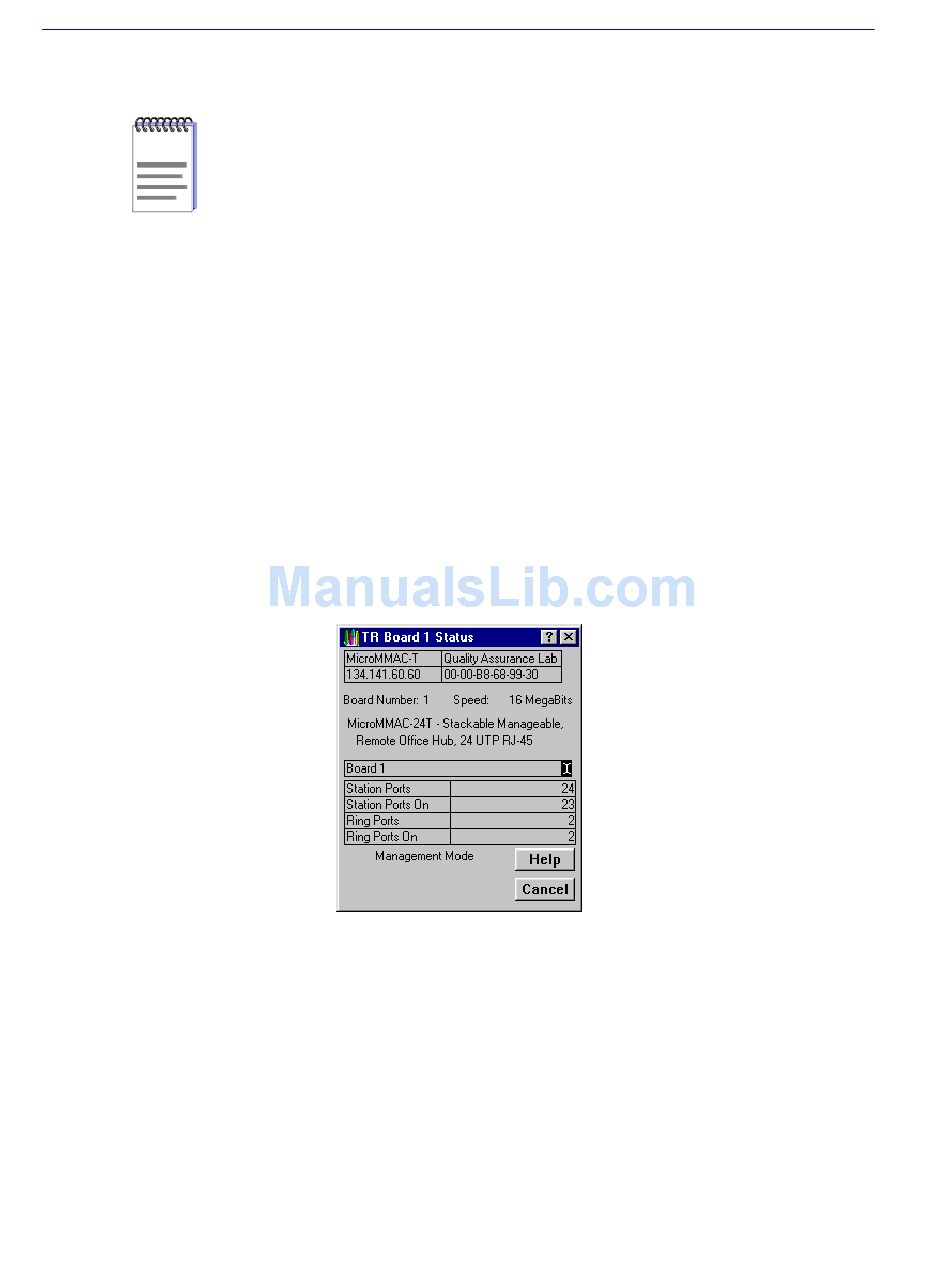

Figure 2-10. The Token Ring Board Status Window
(Figure 2-10) updates you on the condition
Managing the Hub
