Using the Pie and Bar Radio Buttons

You can use the Pie and Bar radio buttons to switch from the bar graph to the pie
chart to view the size of frames passing through the MicroMMAC-T. Both graph
types reflect the type of collection you have chosen: Total or Delta. See
for a view of the Device Frame Sizes window with a pie chart displayed.
To display a pie chart or bar graph:
1. Click on the Pie or Bar radio button. The color-coded Pie chart or the Bar
Network Level Statistics
Click on the Total radio button. The numbers to the left of the selected graph
(in the color-coded boxes) display the total count of frame sizes processed
since the most recent start-up of the MicroMMAC-T. The dynamic bar graph
or pie chart to the right of the numbers reflects counts processed since the last
start-up.
graph will appear on the window, depending on your choice.

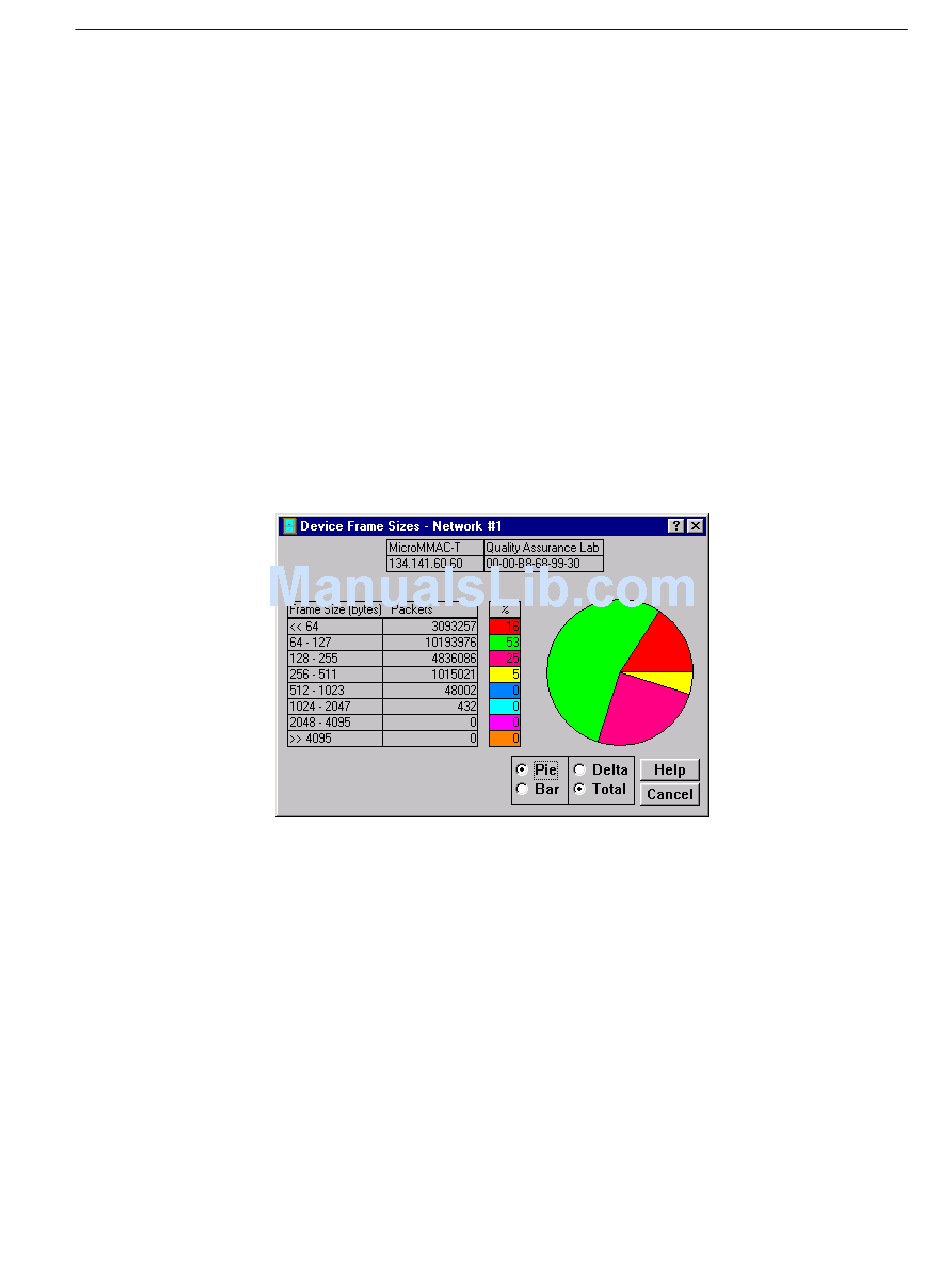

Figure 3-8. Frame Sizes Window with Pie Chart
Token Ring Statistics
Figure 3-8
3-13
