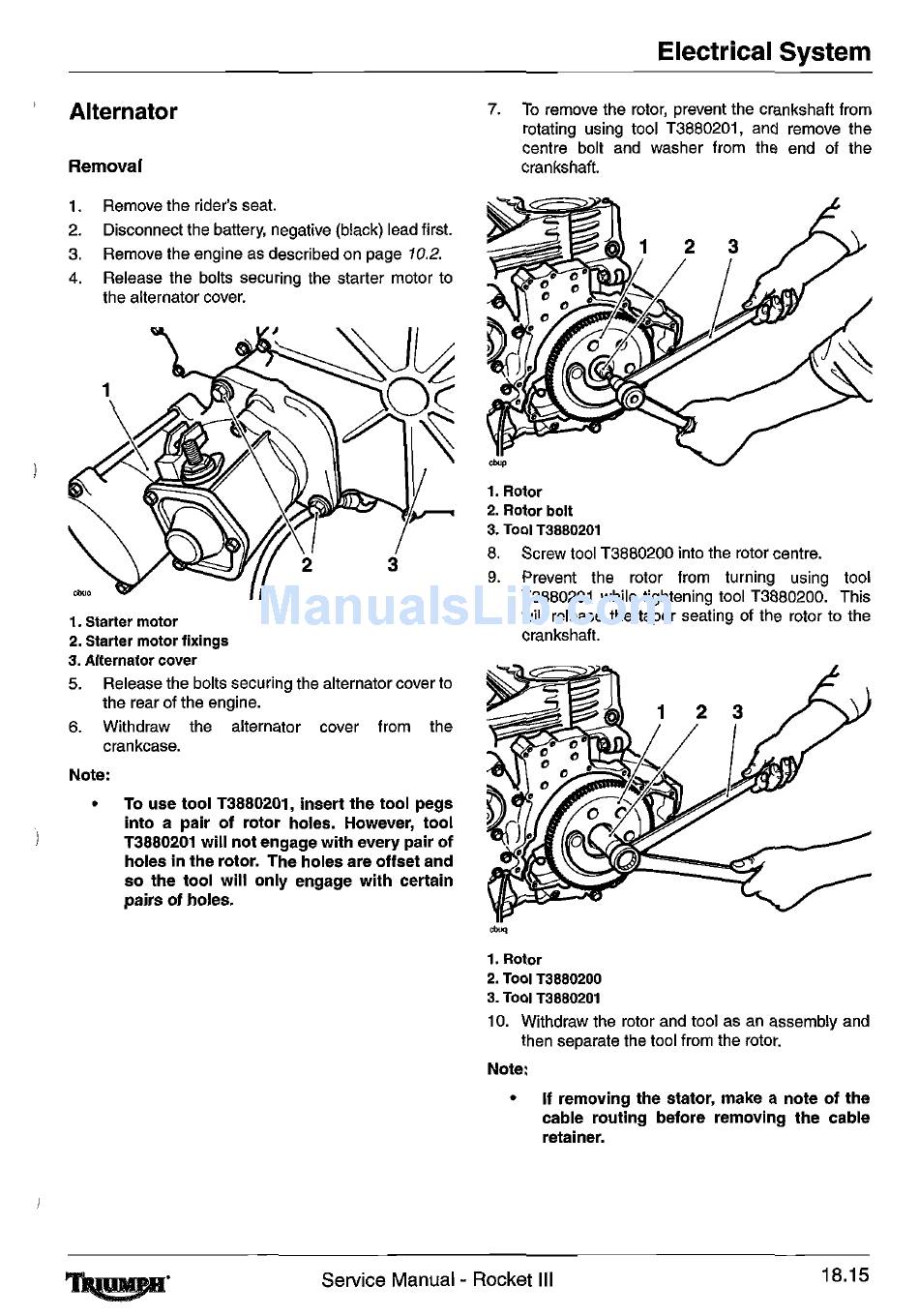

Alternator
Removal
1. Remove the rider's seat.
2. Disconnect the battery, negative (black) lead first.
3. Remove the engine as described on page
10.2.
4. Release the bolts securing the starter motor to
the alternator cover.
1. Starter motor
2. Starter motor fixings
3. Alternator cover
5. Release the bolts securing the alternator cover to
the rear of the engine.
6. Withdraw the alternator cover from the
crankcase.
Note:
• To use tool T3880201, insert the tool pegs
into a pair of rotor holes. However, tool
T3880201 will not engage with every pair of
holes in the rotor. The holes are offset and
so the tool will only engage with certain
pairs of holes.
Electrical System
7. To remove the rotor, prevent the crankshaft from
rotating using tool T3880201, and remove the
centre bolt and washer from the end of the
crankshaft.
1. Rotor
2. Rotor bolt
3. Tool T3880201
8. Screw tool T3880200 into the rotor centre.
9. Prevent the rotor from turning using tool
T38B0201 while tightening tool T3880200. This
will release the taper seating of the rotor to the
crankshaft.
-
1 . Rotor
2. TooIT3880200
3. Tool T3880201
10. Withdraw the rotor and tool as an assembly and
then separate the tool from the rotor.
Note:
• If removing the stator, make a note of the
cable routing before removing the cable
retainer.
Service Manual- Rocket III
18.15
