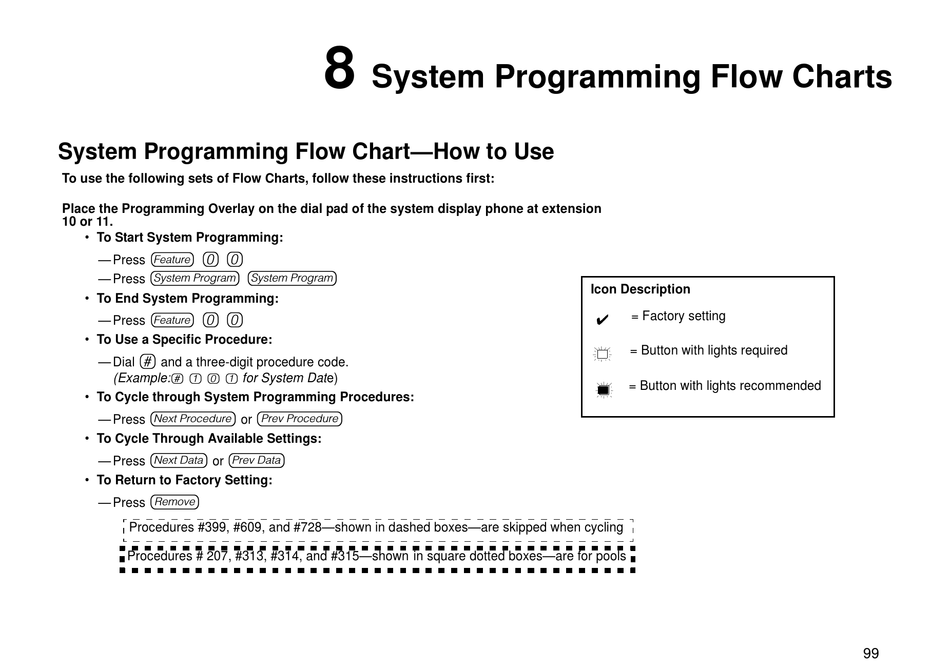

System Programming Flow Chart—How to Use
To use the following sets of Flow Charts, follow these instructions first:
Place the Programming Overlay on the dial pad of the system display phone at extension
10 or 11.
• To Start System Programming:
f 0 0
— Press
s s
— Press
• To End System Programming:
f 0 0
— Press
• To Use a Specific Procedure:
#
— Dial and a three-digit procedure code.
(Example: # 1 0 1
• To Cycle through System Programming Procedures:
N
— Press
• To Cycle Through Available Settings:
D d
— Press or
• To Return to Factory Setting:
r
— Press
Procedures #399, #609, and #728—shown in dashed boxes—are skipped when cycling
Procedures # 207, #313, #314, and #315—shown in square dotted boxes—are for pools
8

System Programming Flow Charts

for System Date)
P
or
Icon Description
= Factory setting
= Button with lights required
= Button with lights recommended
