Avaya PARTNER Advanced Communications System Quick Reference Manual page 112

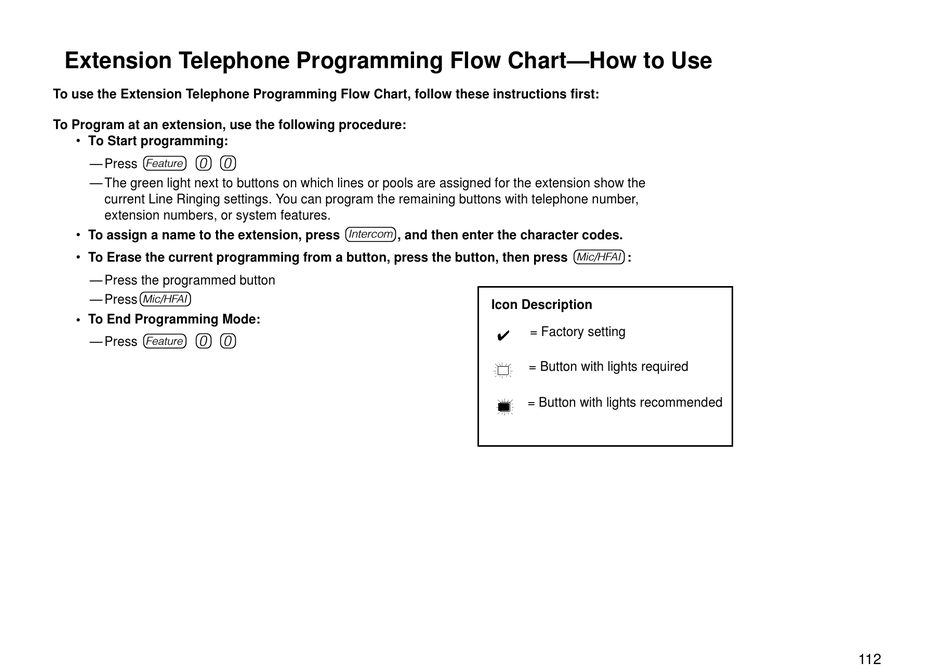

Extension Telephone Programming Flow Chart—How to Use
To use the Extension Telephone Programming Flow Chart, follow these instructions first:
To Program at an extension, use the following procedure:
• To Start programming :
f 0 0
— Press
— The green light next to buttons on which lines or pools are assigned for the extension show the
current Line Ringing settings. You can program the remaining buttons with telephone number,
extension numbers, or system features.
• To assign a name to the extension, press
• To Erase the current programming from a button, press the button, then press
— Press the programmed button
!
— Press
• To End Programming Mode:
f 0 0
— Press
i
, and then enter the character codes.
Icon Description
!
:
= Factory setting
= Button with lights required
= Button with lights recommended
112
