Chapter 7
Close both latches
to secure
processor.

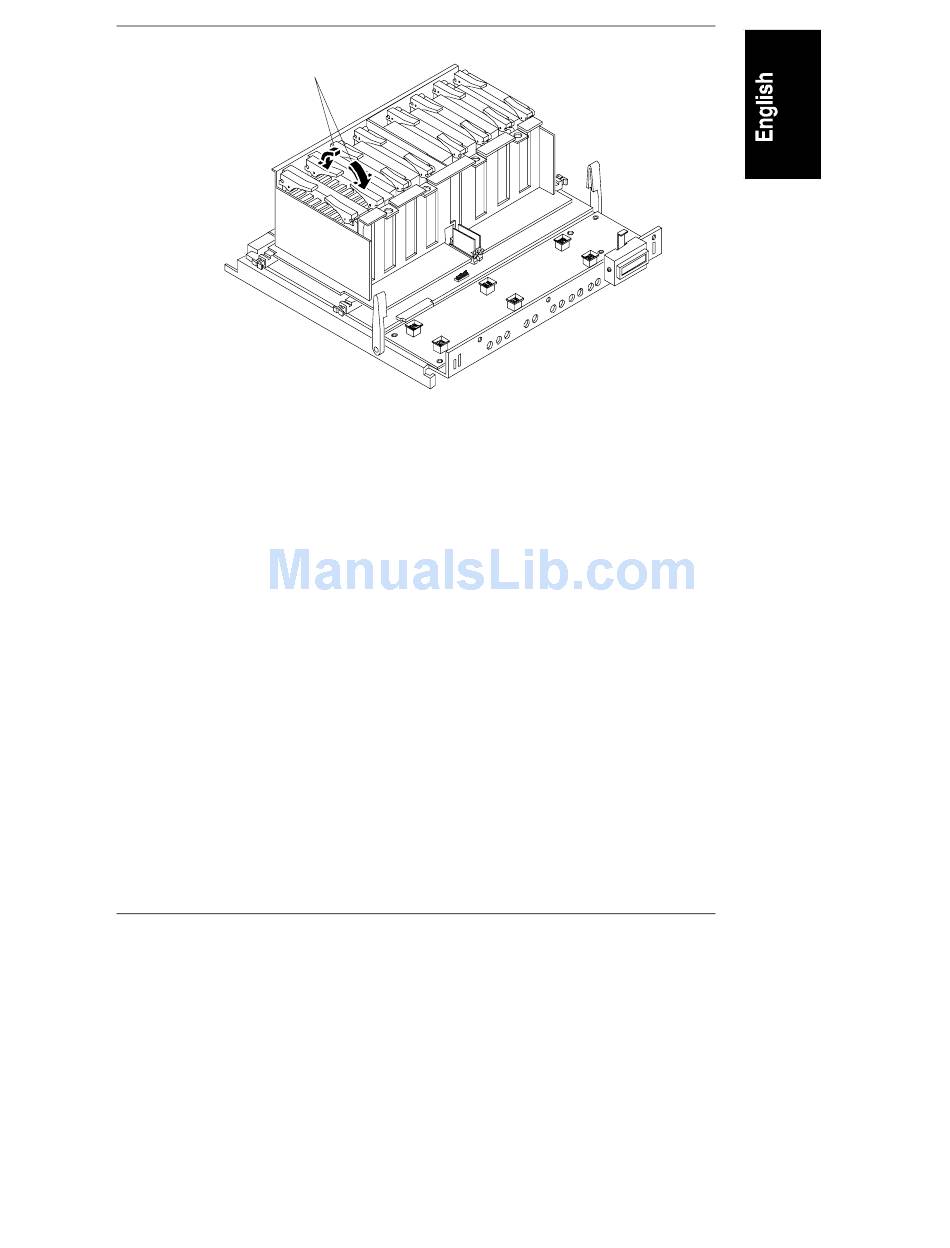

Figure 7-9. Retaining Latches in Closed Position
15. Replace the cover on the processor cage.
a. Position the cover tabs into the matching slots on the rear rim of the
cage. See Figure 7-10.
b. Lower the cover into place and secure the captive screws.
Installing Additional Processors
87
