Chapter 6
CAUTION Do not bend the PCI board to install it into the slot. If the
full-length PCI board has a handle on the end of the board that
prevents its installation, remove the handle before installing
the board.
10. Before installing the PCI board:
Verify there is no handle attached to it, especially if it is a full-length
board.
If it has a handle attached, remove the handle before installing the
board into the slot.
11. Align the board with its slot along its full length and position it into the
slot. See Figure 6-6.
12. Push the PCI board down into its connector in the I/O baseboard.
PCI Board
Guide Latch
Open Latch

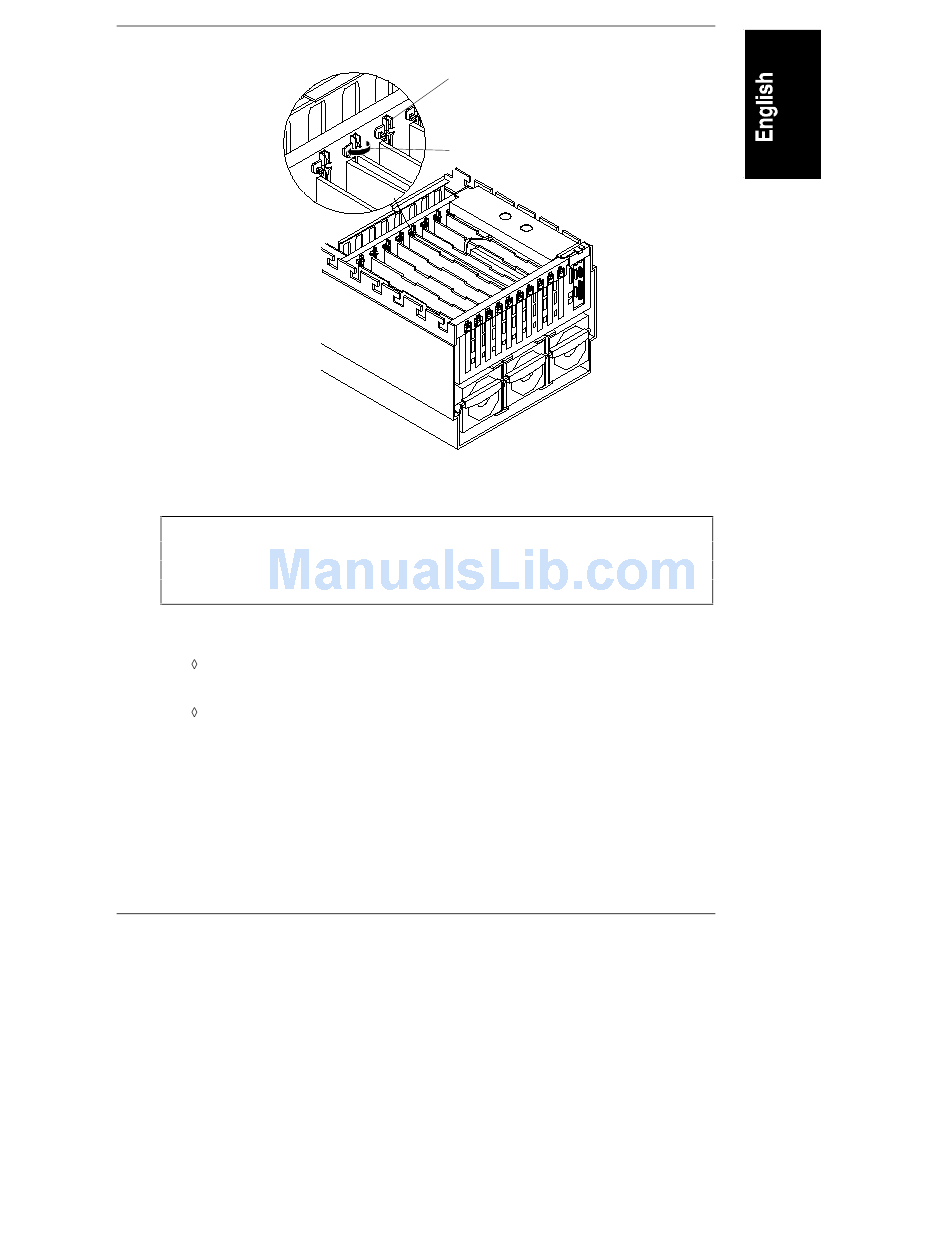

Figure 6-5. PCI Board Guide Latch
Installing Additional Boards
