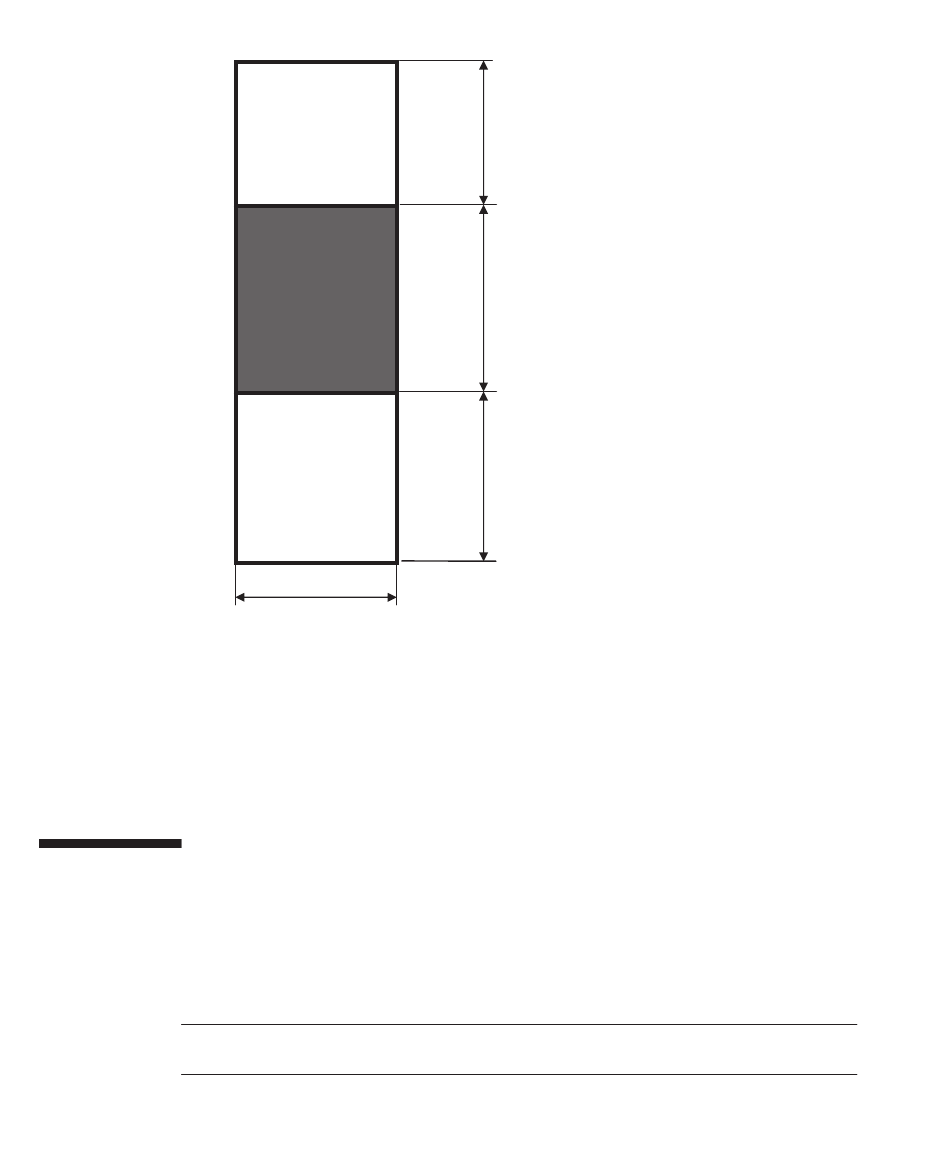

Figure 2-5 Example of service areas for the PCI expansion unit (top view)
(*1)
*1 To mount a chassis on the rack, an area with a depth of 1,200 mm (47.2 in.) is required in front of the rack, and
areas with a width of 600 mm (23.6 in.) are required on both the left and right sides of the front service area. If
there is a possibility that a chassis will be added later, secure an area with a depth of 1,200 mm (47.2 in.) in front
of the rack and areas with a width of 600 mm (23.6 in.) on both the left and right sides of the front service area.
2.5

Checking Environmental Conditions

This section describes the environmental conditions for the SPARC M10 systems. The
server can be installed at locations that meet the environmental conditions listed in
Table
Note - When designing environmental control systems such as air conditioning facilities,
confirm that the air taken in by each chassis meets the requirements specified in this section.
Fujitsu M10-1/SPARC M10-1 Installation Guide ･ March 2019
20
Rear service area
Rack
Front service area
(*1)
700 mm
(27.6 in.)
2-4.
800 mm
(31.5 in.)
105 0 mm
(41.3 in.)
900 mm
(*1)
(35.4 in.)
