3.4

Mounting the Chassis in a Rack

This section describes the procedures for mounting the chassis in an equipment rack.
For rack details, see the manual for the rack used.
If the chassis has already been mounted in the rack, go to
Components."
For the rack mounting procedure of each chassis, see the following sections:

Mounting the SPARC M10-1 in a rack

■
Mounting the PCI expansion unit in a rack
■
3.4.1 Mounting the SPARC M10-1 in a rack
This section describes the procedure for mounting the SPARC M10-1 in an
equipment rack.
The procedure assumes the rack has supporting columns having square holes. The
same procedure can be applied to the rack with supporting columns having M6
screw holes.
1.
Confirm that the rack rail kit supplied with the SPARC M10-1 is complete.

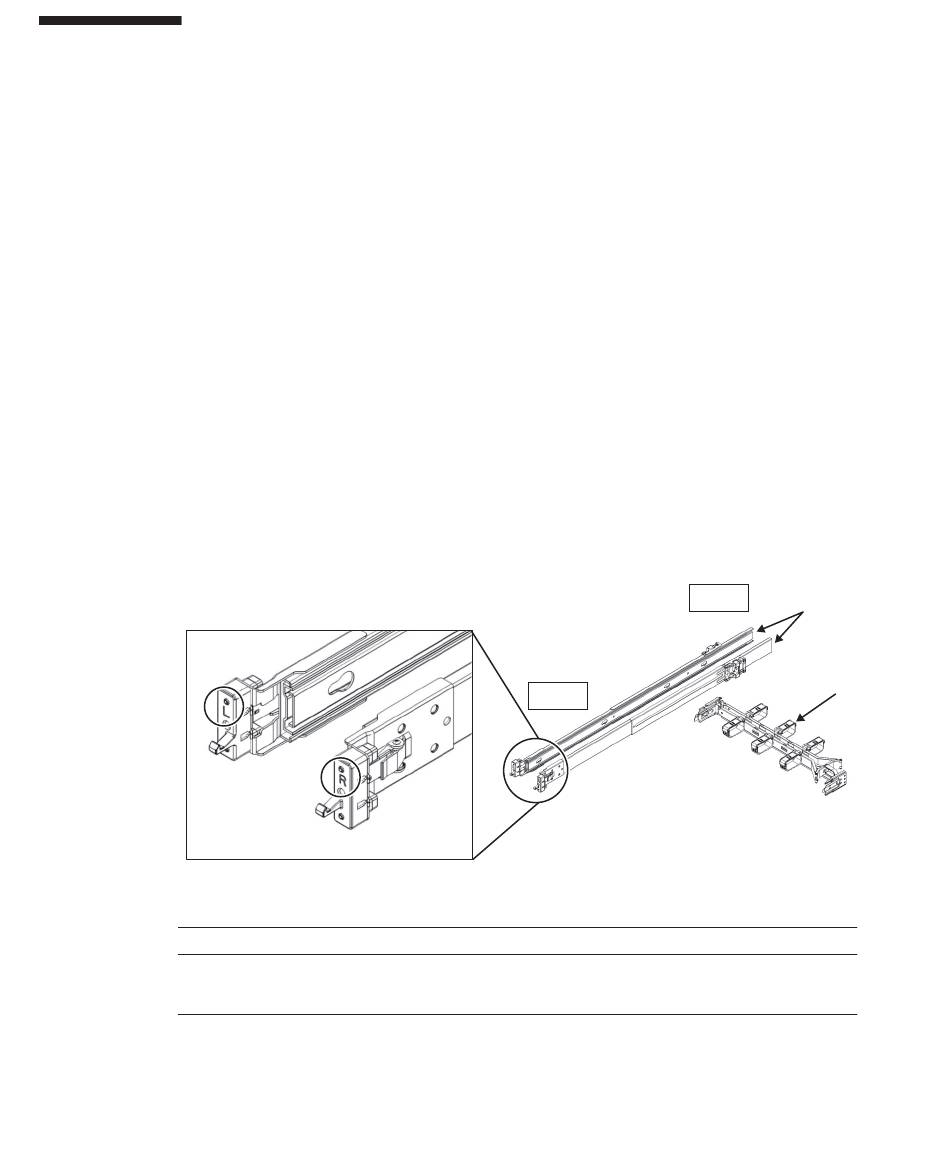

Figure 3-1 Rack rail kit
Number in figure
1
2
2.
Confirm that the rack is fixed in place to prevent the rack from toppling over.
For details, see
Fujitsu M10-1/SPARC M10-1 Installation Guide ･ March 2019
42
Name
Slide rail (left/right)
Cable management arm
"3.3 Confirming the
"3.5 Mounting Optional
FRONT
Quantity
1 per side
1
Rack."
REAR
(1)
(2)
