Working With the Display and the Soft Keys

EasyCoder PD42 Printer User's Guide
The blue Ready-to-Work LED ( )shows the operational status
of the printer. In simple terms, it is turned on when the printer is
operational. The indicator is set to flash when the printer is
receiving data or under certain "mild" error conditions, for
example when the printer is awaiting an IP address from the
network, when the printhead is lifted, or when media is loaded
incorrectly. It also flashes when the printer is in Setup mode,
Testmode, and Extended Testmode (see Chapter 3,
the Printer.").
When more serious errors occur, the indicator turns off
completely, and the red Error LED ( ) turns on or flashes. There
are a number of conditions that can cause this behavior; for help,
see Chapter 4, "Troubleshooting and Maintenance."
The green Ready/Data LED ( ) turns on, off, or flashes
depending on the current state of the printer. A more thorough
description of this behavior can be found in
Printer States" on page
The display communicates detailed information about the
current state of the printer. Using the display, the printer tells you
if a specific error has occurred or if it is waiting for input from
you.
Text or error
messages

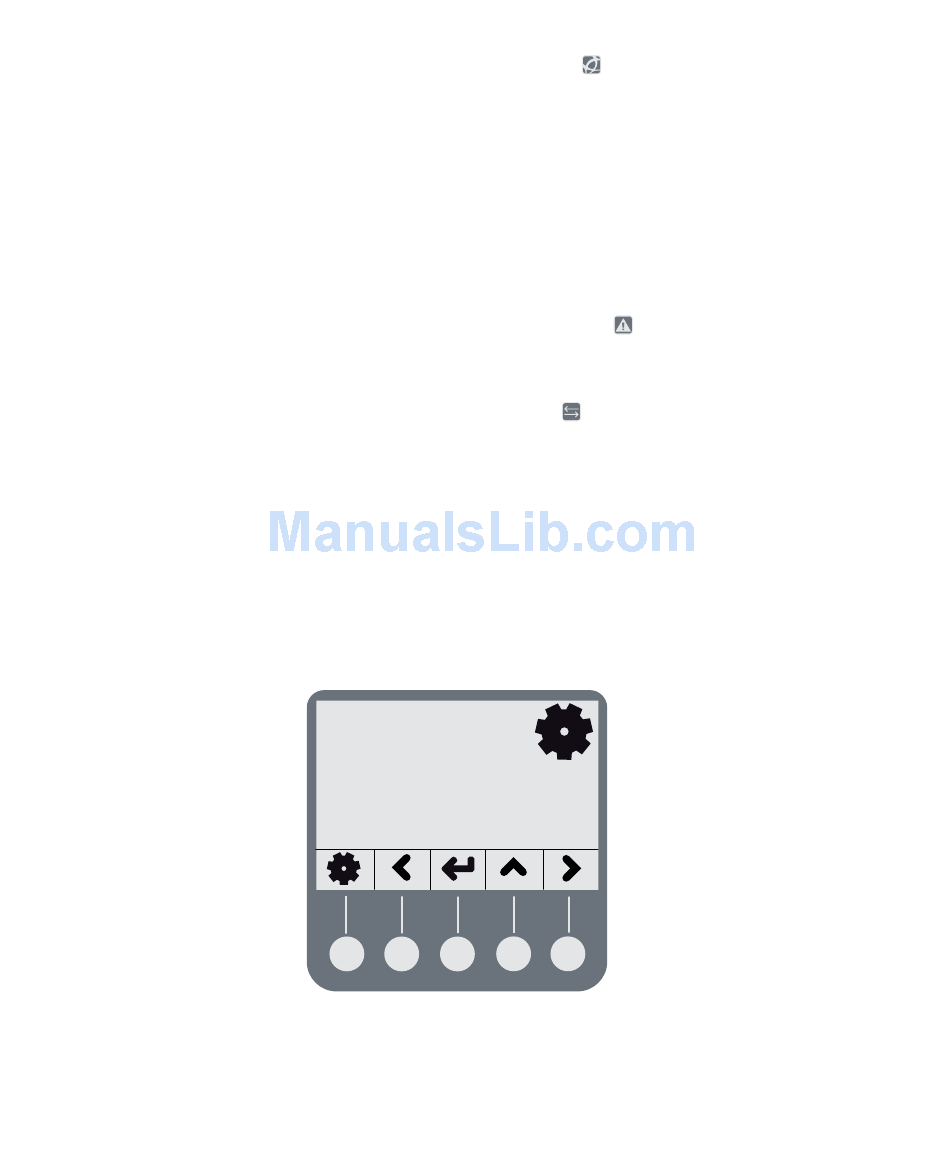

The different areas of the display and the soft keys.
Chapter 1 — Using the Printer
"Understanding
26.
Current state
(Setup)
Active soft keys
"Configuring
7
