A.4.1.3 Manual Configuration and Verification
Use the UT-4579 front panel CONFIG FAULTRECOVERY menu branch to select
fault recovery operation as Manual. In MANUAL mode, the BU can force
switchover of an online unit. This mode also overrides fault status detection of
the online units as performed by the BU. If an online unit is configured to manual
mode and this unit faults, no switchover occurs. The online units report their
status as shown in Figure A-12. The active configuration BU displays each
installed unit as "A" or "M". This example shows Converter #01 configured for
MANUAL (M) operation.

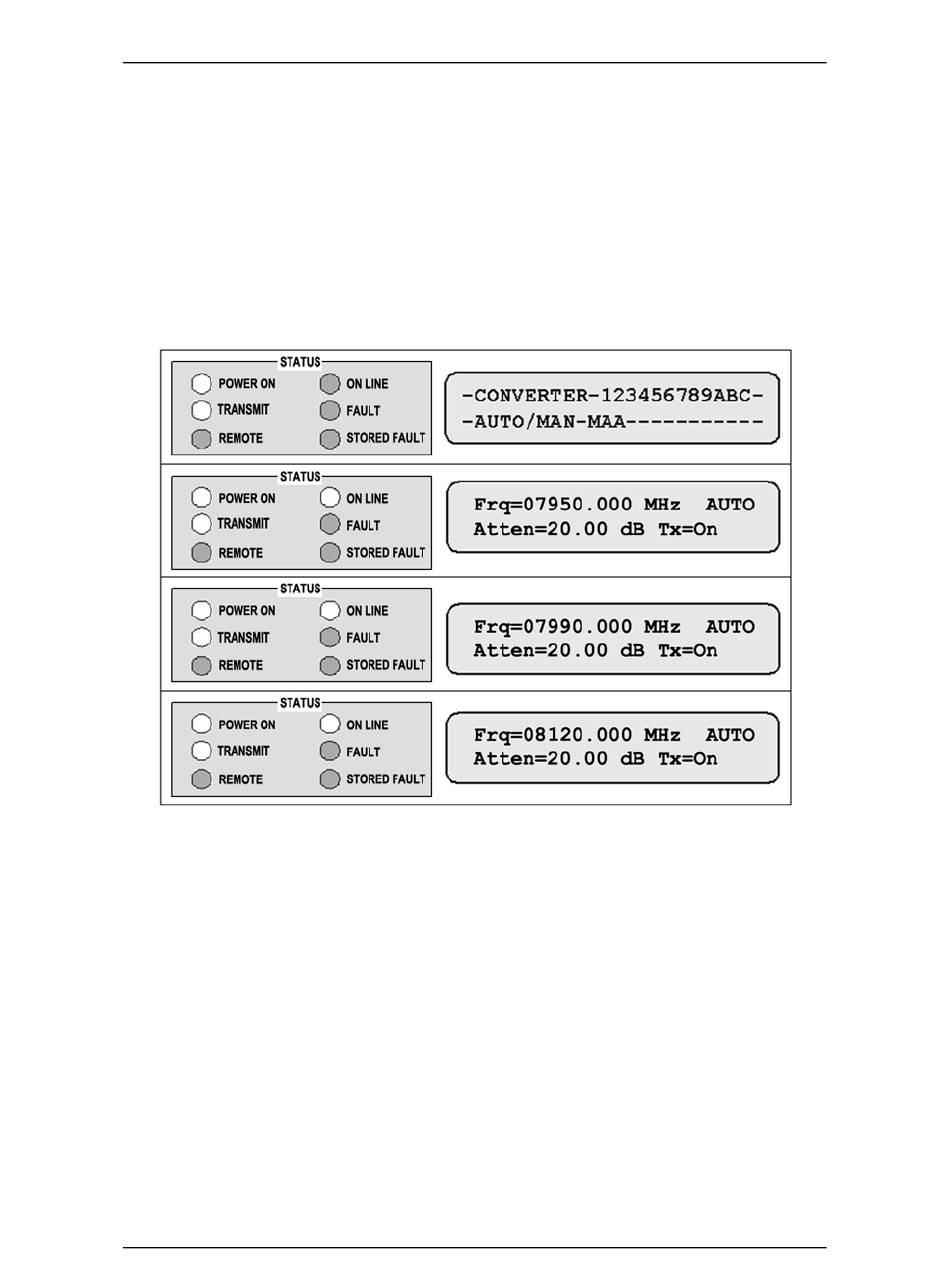

Figure A-12. Front Panel Example – Up Converter #01=MAN, Others=AUTO
