Installing Optional Mini-GBICs

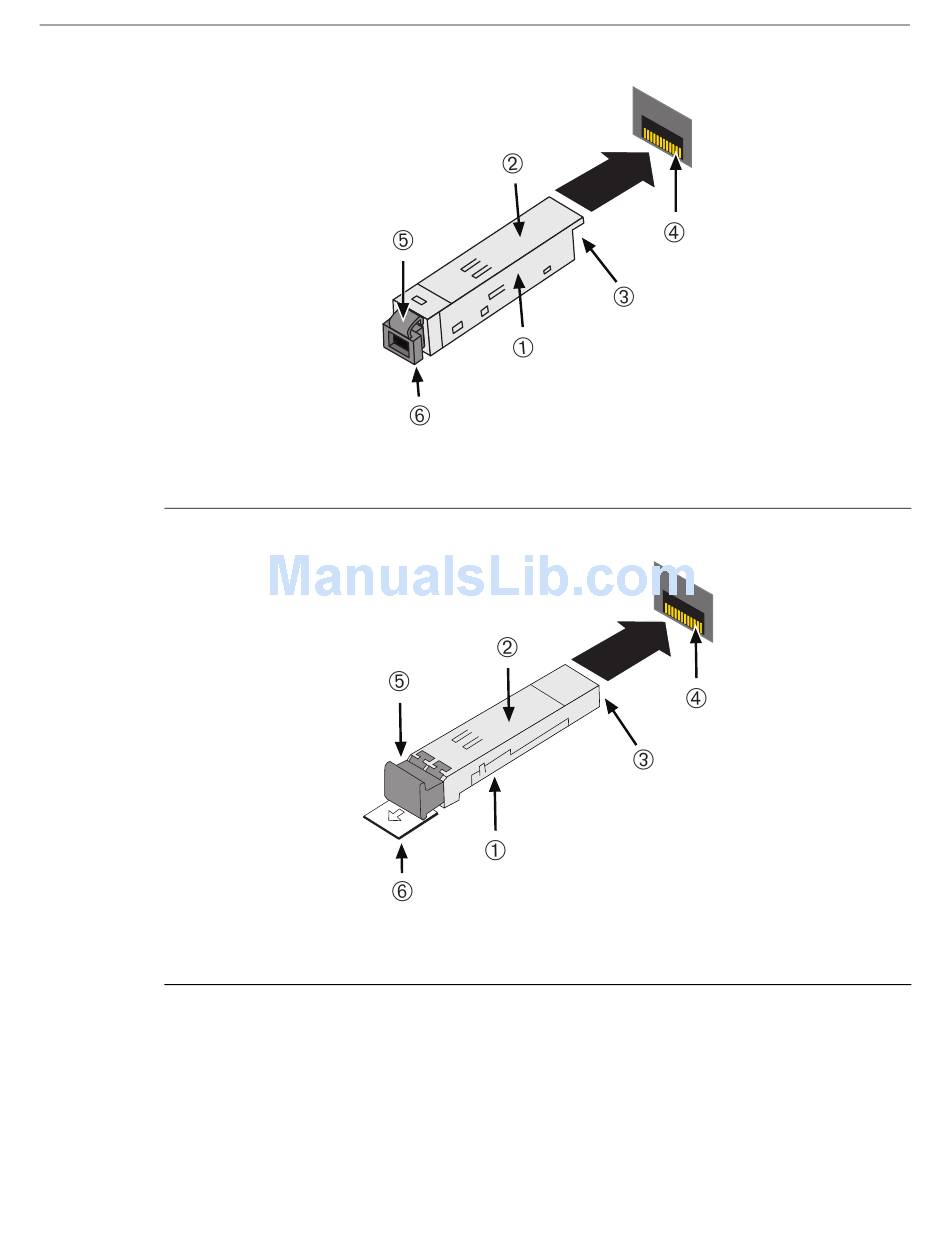

Figure 3-1
1 Mini-GBIC (MGBIC-MT01)
2 Mini-GBIC
3 7-Pin edge connector (insertion side)
Figure 3-2
1 Mini-GBIC (MGBIC-LC01 or MGBIC-LC09)
2 Mini-GBIC
3 7-Pin edge connector (insertion side)
3-4 Installation

Mini-GBIC with MT-RJ Connector

,
top side

Mini-GBIC with LC Connector

,
top sid
4 Port slot
,
5 Mini-GBIC protective dust cover
6 Release tab
4 Port slot
,
5 Mini-GBIC protective dust cover
6 Release tab
