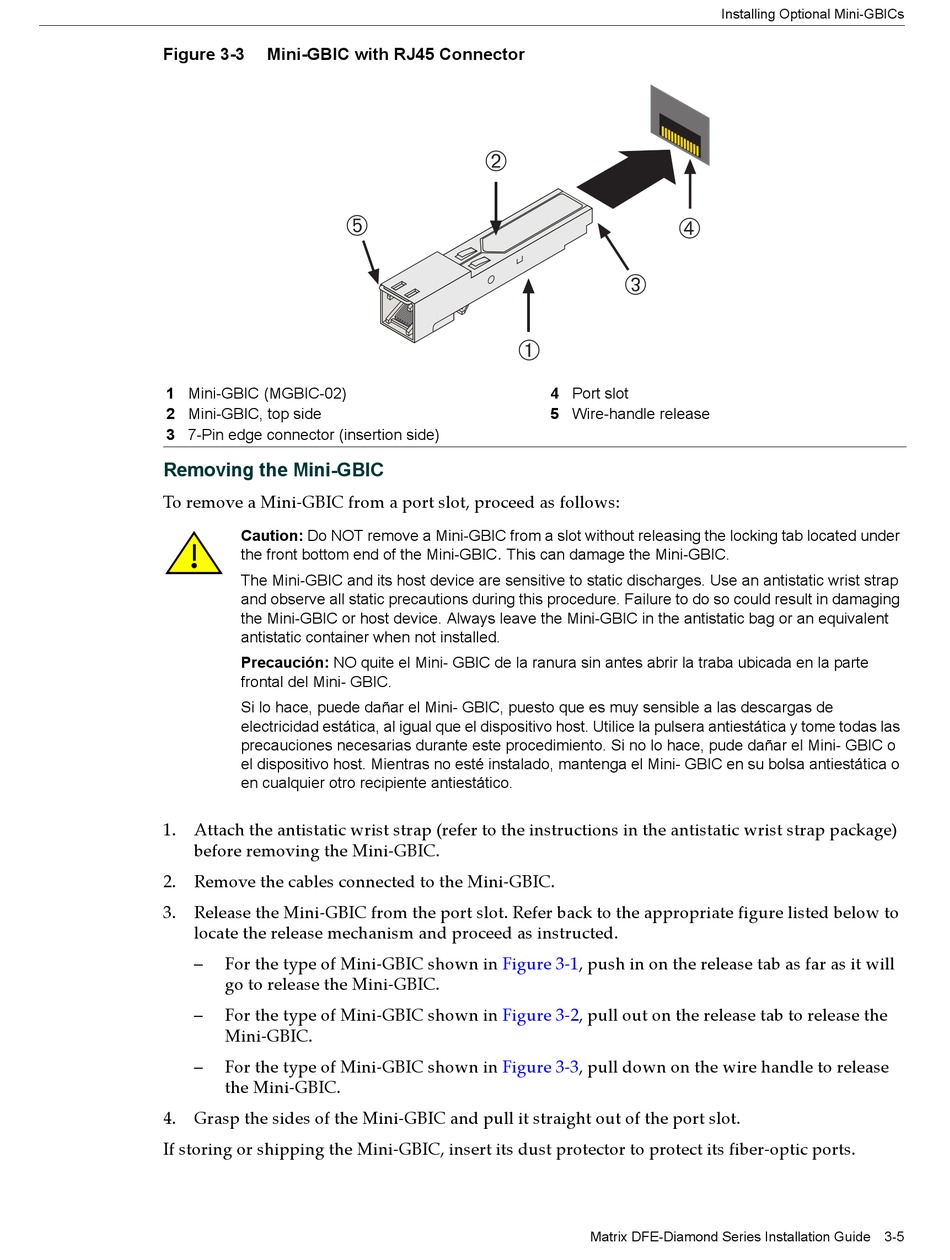

Figure 3-3

Mini-GBIC with RJ45 Connector

1 Mini-GBIC (MGBIC-02)
2 Mini-GBIC, top side
3 7-Pin edge connector (insertion side)
Removing the Mini-GBIC
To remove a Mini‐GBIC from a port slot, proceed as follows:
Caution: Do NOT remove a Mini-GBIC from a slot without releasing the locking tab located under
the front bottom end of the Mini-GBIC
The Mini-GBIC and its host device are sensitive to static discharges. Use an antistatic wrist strap
and observe all static precautions during this procedure. Failure to do so could result in damaging
the Mini-GBIC or host device. Always leave the Mini-GBIC in the antistatic bag or an equivalent
antistatic container when not installed.
Precaución: NO quite el Mini- GBIC de la ranura sin antes abrir la traba ubicada en la parte
frontal del Mini- GBIC.
Si lo hace, puede dañar el Mini- GBIC, puesto que es muy sensible a las descargas de
electricidad estática, al igual que el dispositivo host. Utilice la pulsera antiestática y tome todas las
precauciones necesarias durante este procedimiento. Si no lo hace, pude dañar el Mini- GBIC o
el dispositivo host. Mientras no esté instalado, mantenga el Mini- GBIC en su bolsa antiestática o
en cualquier otro recipiente antiestático.
1. Attach the antistatic wrist strap (refer to the instructions in the antistatic wrist strap package)
before removing the Mini‐GBIC.
2. Remove the cables connected to the Mini‐GBIC.
3. Release the Mini‐GBIC from the port slot. Refer back to the appropriate figure listed below to
locate the release mechanism and proceed as instructed.
– For the type of Mini‐GBIC shown in Figure
go to release the Mini‐GBIC.
– For the type of Mini‐GBIC shown in Figure
Mini‐GBIC.
– For the type of Mini‐GBIC shown in Figure
the Mini‐GBIC.
4. Grasp the sides of the Mini‐GBIC and pull it straight out of the port slot.
If storing or shipping the Mini‐GBIC, insert its dust protector to protect its fiber‐optic ports.
Á
Ä
À
.
This can damage the Mini-GBIC.
Installing Optional Mini-GBICs
Ã
4 Port slot
5 Wire-handle release
3‐1, push in on the release tab as far as it will
3‐2, pull out on the release tab to release the
3‐3, pull down on the wire handle to release
Matrix DFE-Diamond Series Installation Guide 3-5
