Memory Locations and Replacement Procedures

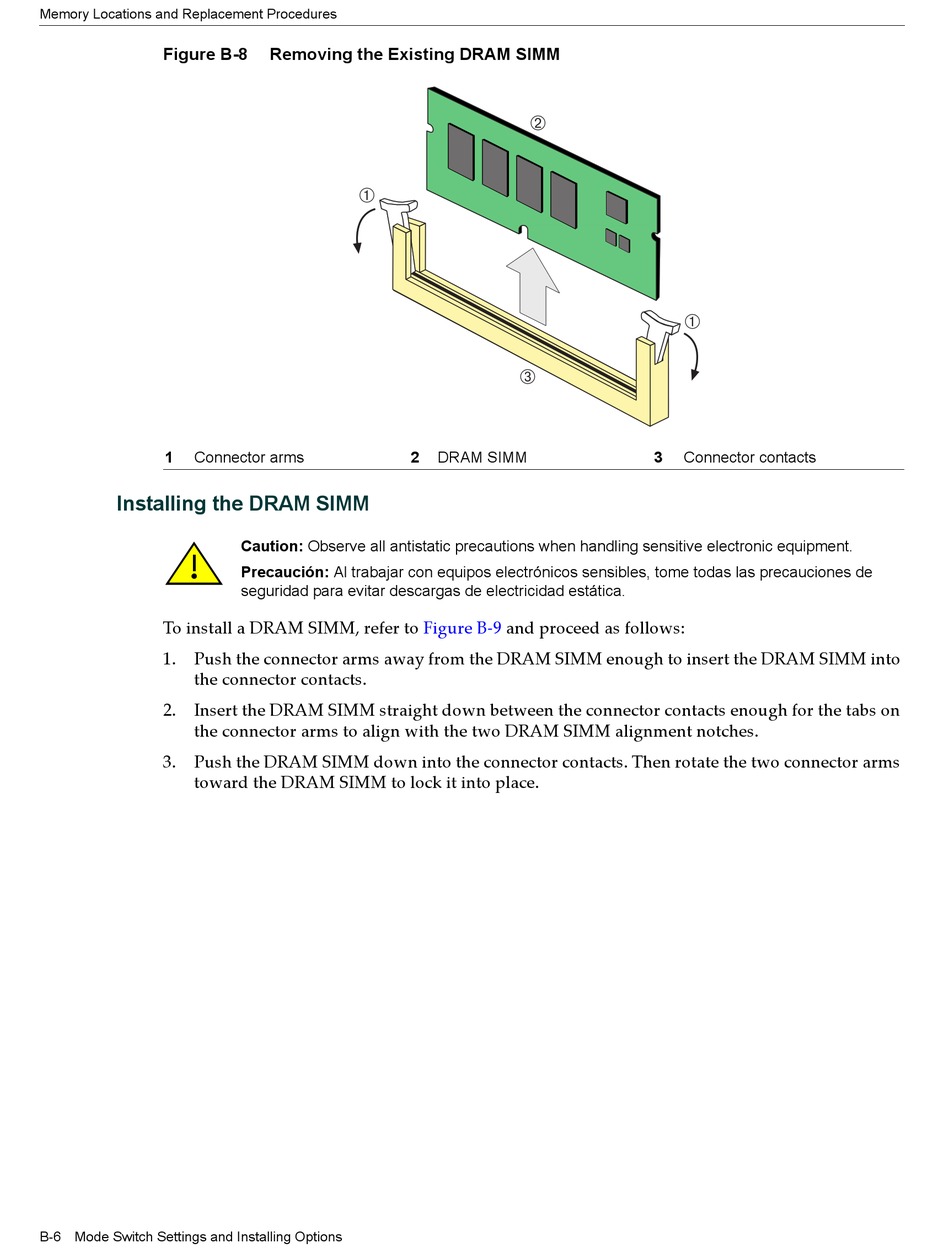

Figure B-8
1
Connector arms
Installing the DRAM SIMM
To install a DRAM SIMM, refer to Figure
1.
Push the connector arms away from the DRAM SIMM enough to insert the DRAM SIMM into
the connector contacts.
2.
Insert the DRAM SIMM straight down between the connector contacts enough for the tabs on
the connector arms to align with the two DRAM SIMM alignment notches.
3.
Push the DRAM SIMM down into the connector contacts. Then rotate the two connector arms
toward the DRAM SIMM to lock it into place.
B-6 Mode Switch Settings and Installing Options
Removing the Existing DRAM SIMM
À
2
Caution: Observe all antistatic precautions when handling sensitive electronic equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones de
seguridad para evitar descargas de electricidad estática.
Á
Â
DRAM SIMM
B‐9 and proceed as follows:
À
3
Connector contacts
