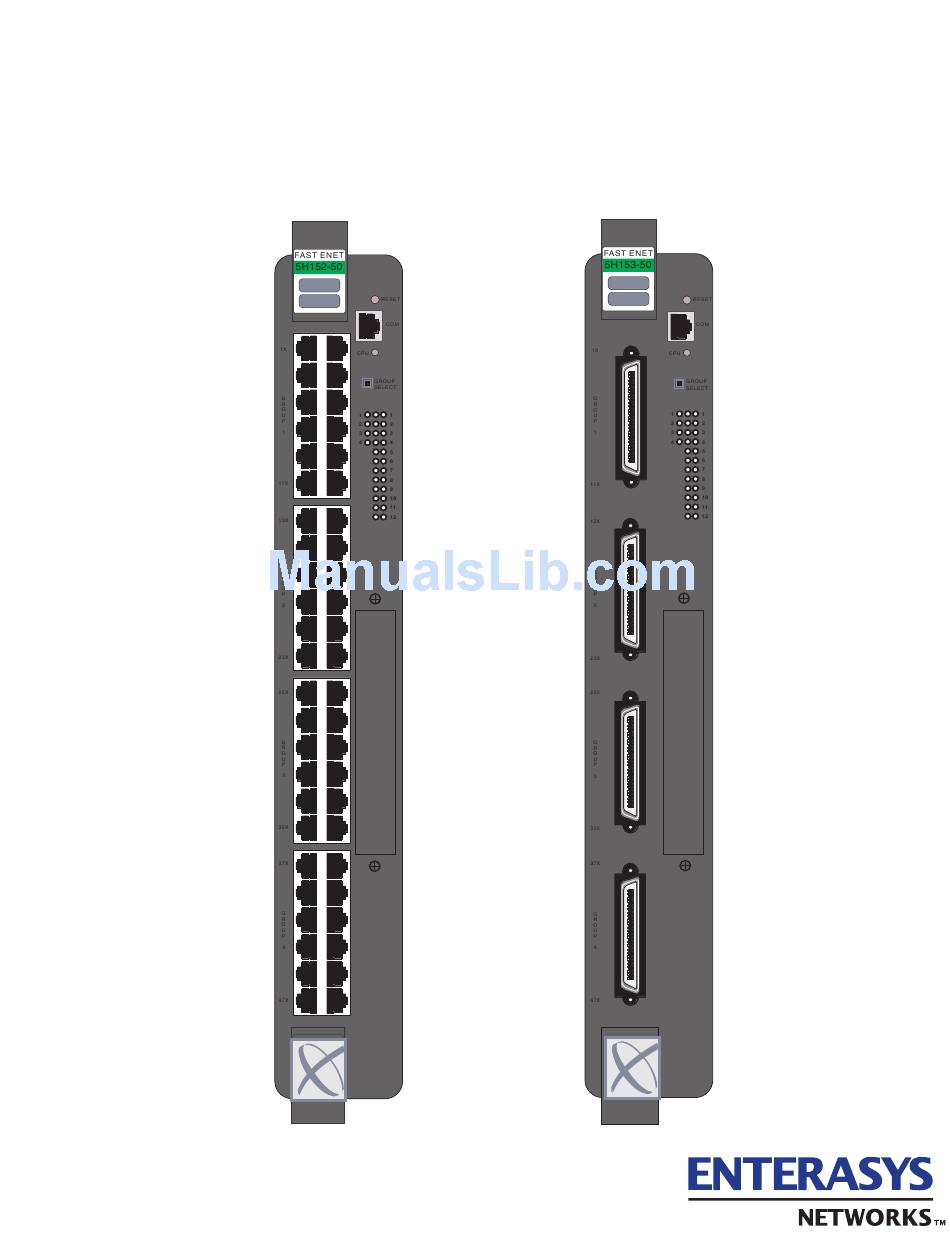

- Page 1 5H152-50 and 5H153-50 Fast Ethernet Modules Installation Guide GROUP GROUP 9033677...
- Page 3 Enterasys Networks and its licensors reserve the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Enterasys Networks to determine whether any such changes have been made.
-
Page 4: Fcc Notice
FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Safety Information
THE GPIM-08 AND GPIM-09 GIGABIT PORT INTERFACE MODULES, USE CLASS 1 LASER TRANSCEIVERS. READ THE FOLLOWING SAFETY INFORMATION BEFORE INSTALLING OR OPERATING THESE MODULES. The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for maintenance checks or adjustments. - Page 6 This document is an agreement (“Agreement”) between You, the end user, and Enterasys Networks, Inc. (“Enterasys”) that sets forth your rights and obligations with respect to the Enterasys software program (“Program”) in the package. The Program may be contained in firmware, chips or other media. UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY.
- Page 7 52.227-19 (a) through (d) of the Commercial Computer Software-Restricted Rights Clause and its successors, and (iii) in all respects is proprietary data belonging to Enterasys and/or its suppliers. For Department of Defense units, the Product is considered commercial computer software in accordance with DFARS section 227.7202-3 and its successors, and use, duplication, or disclosure by the Government is subject to restrictions set forth herein.
-
Page 8: Declaration Of Conformity
European Representative Name: Mr. Jim Sims European Representative Address: Conformance to Directive(s)/Product Standards: Equipment Type/Environment: Networking Equipment, for use in a Commercial Enterasys Networks Inc. declares that the equipment packaged with this notice conforms to the above directives. 73/23/EEC 35 Industrial Way... -
Page 9: Table Of Contents
Figures ...xi Tables...xii ABOUT THIS GUIDE Using This Guide... xiii Structure of This Guide ...xiv Related Documents...xv Document Conventions...xv Getting Help ...xvi INTRODUCTION Connectivity... 1-3 1.1.1 1.1.2 1.1.3 Half-Duplex/Full-Duplex Auto-Negotiation ... 1-4 Port Trunking... 1-5 Remote Monitoring (RMON) ... 1-5 Port/VLAN Redirect Function ... - Page 10 INSTALLATION Unpacking the Module ... 3-2 Installing Optional 5PIMs ... 3-3 3.2.1 3.2.2 Installing Optional GPIMs... 3-6 3.3.1 3.3.2 Installing the Module into the 5C105 Chassis ... 3-13 Connecting to the Network... 3-15 3.5.1 3.5.2 Connecting Fiber Optic Cables to GPIMs ... 3-22 3.6.1 3.6.2 3.6.3...
- Page 11 MODE SWITCH BANK SETTINGS Required Tools...B-1 Setting the Mode Switches...B-2 GPIM SPECIFICATIONS Input/Output Ports (GPIM Options) ... C-1 Gigabit Ethernet Specifications ... C-2 C.2.1 C.2.2 C.2.3 Physical and Environmental Specifications... C-4 INDEX GPIM-01 Specifications (1000BASE-SX) ... C-2 GPIM-08 Specifications (1000BASE-SX) ... C-2...
-
Page 13: Figures
3-14 GPIM-09 Launch Mode Conditioning Cable Connection... 3-23 3-15 Fiber GPIM Connections ... 3-25 3-16 Fiber Port LED Designations... 3-26 LANVIEW LEDs (both modules) ... 4-2 RESET Button (same on both modules) ... 4-7 Mode Switch Location ...B-2 Figures Page... - Page 14 Tables Table GPIM Options ... 1-4 Contents of Module Carton... 3-2 LANVIEW LEDs... 4-3 Troubleshooting Checklist ... 4-5 COM Port Pin Assignments ... A-4 GPIM-01 Optical Specifications ... C-2 GPIM-01 Operating Range ... C-2 GPIM-08 Optical Specifications ... C-2 GPIM-08 Operating Range ... C-3 GPIM-09 Optical Specifications ...
-
Page 15: About This Guide
NOTE: In this document, the 5H152-50 or 5H153-50 may be referred to as either the “switch,” or the “module.” When information applies to a specific module, the module will be referred to by its name. -
Page 16: Structure Of This Guide
5PIM-G02 and 5PIM-G06. Appendix B, Mode Switch Bank Appendix C, GPIM Specifications, lists the specifications and regulatory requirements for the optional Gigabit Port Interface Modules (GPIM-01, GPIM-08, and GPIM-09) and the media they support. Settings, describes how to set the Mode Switch. -
Page 17: Related Documents
Cabling Guide The manuals listed above can be obtained from the World Wide Web in Adobe Acrobat Portable Document Format (PDF) at the following site: http://www.enterasys.com/support/manuals DOCUMENT CONVENTIONS The guide uses the following conventions: NOTE: Calls the reader’s attention to any item of information that may be of special importance. -
Page 18: Getting Help
GETTING HELP For additional support related to the product or this document, contact Enterasys Networks using one of the following methods: World Wide Web http://www.enterasys.com/ Phone (603) 332-9400 Internet mail support@enterasys.com ftp://ftp.enterasys.com Login anonymous Password your email address To send comments or suggestions concerning this document, contact the Technical Writing Department via the following email address: Make sure to include the document Part Number in the email message. -
Page 19: Introduction
This chapter introduces the 5H152-50 and 5H153-50 Fast Ethernet modules. Depending on the firmware version used in the module, some features described in this document may not be supported. Refer to the Release Notes shipped with the module to determine which features are supported. - Page 20 RJ45 Network Ports 1 - 48 ➁ COM Port ➂ System LED Á Â Ã Ä Å Æ Ç ➃ Group Select Switch ➄ Port Status LEDs ➅ Group Select LEDs Á Â Ã Ä Å Ç ➆ RJ21 Network Ports 1 - 48 ➇...
-
Page 21: Connectivity
CONNECTIVITY The 5H152-50 and 5H153-50 modules connect to Ethernet networks or workstations through the front panel connectors. The ports support Unshielded Twisted Pair (UTP) cables with an impedance between 85 and 111 ohms at lengths up to 100 meters. The ports are IEEE 802.3 10BASE-T and 100BASE-TX compliant. -
Page 22: Half-Duplex/Full-Duplex Auto-Negotiation
The GPIM options for the 5PIM-G06 are summarized in Notes for any changes or additions to this information. For more detailed specifications on the GPIMs, refer to Appendix Table 1-1 GPIM Options Part Number Fiber Optic Connection GPIM-01 GPIM-08 GPIM-09 HALF-DUPLEX/FULL-DUPLEX AUTO-NEGOTIATION The fixed front panel ports on the module have the ability to auto-negotiate the ports’... -
Page 23: Port Trunking
History groups are enabled on all ports by default. The Enterasys Networks RMON Actions is a vendor-specific extension of RMON and provides the ability to set an “Action” on any SNMP MIB variable. The Action can be triggered by any RMON Event and/or Alarm. -
Page 24: Flow Control
MANAGEMENT Management of the module can be either in-band or out-of-band. In-band remote management is possible through any SNMP-compliant Network Management Software, such as the Enterasys Networks’ NetSight™ management product. In-band management using Telnet and Enterasys Networks’ Webview™ is also provided. Out-of-band Local Management is provided through the RJ45 COM port on the front panel using a VT100 terminal or a VT100 terminal emulator. -
Page 25: 1.10 Standards Compatibility
The modules support a wide variety of industry standard MIBs including RFC 1213 (MIB II), RFC 1757 (RMON), and RFC 1493 (Bridge MIB). A full suite of Enterasys Networks Enterprise MIBs provide a wide array of statistical information to enhance troubleshooting. For information on how to extract and compile individual MIBs, contact Enterasys Networks. -
Page 27: Network Requirements
Failure to do so will produce poor network performance. NOTE: The MATRIX E5 Series Modules Local Management User’s Guide and Cabling Guide, referred to in the following sections, can be found on the Enterasys Networks World Wide Web site: http://www.enterasys.com/... -
Page 28: 10Base-T Network
10BASE-T NETWORK When connecting a 10BASE-T segment to any of the module ports (1 through 48), ensure that the network meets the Ethernet network requirements of the IEEE 802.3 standard for 10BASE-T. Refer to the Cabling Guide for details. NOTE: If a port is to operate at 100 Mbps, Category 5 cabling must be used. Category 3 cabling does not meet 100 Mbps specifications. -
Page 29: Installation
ELECTRICAL HAZARD: Only qualified personnel should install the module. NOTE: Read the Release Notes shipped with the module to check for any exceptions to the supported features and operation documented in this guide. This chapter provides the instructions to install the 5H152-50 and 5H153-50 modules and optional 5PIM-02 and 5PIM-G06 port interface modules. -
Page 30: Unpacking The Module
Manual Accessory Kit 3. Remove the tape seal on the non-conductive bag to remove the module. 4. Perform a visual inspection of the module for any signs of physical damage. Contact Enterasys Networks if there are any signs of damage. Refer to details. -
Page 31: Installing Optional 5Pims
INSTALLING OPTIONAL 5PIMs NOTE: Install any optional equipment before proceeding to At the time of this printing, two port interface module options (5PIM-G02 and 5PIM-G06) were available for the 5H152-50 and 5H153-50. Refer to your release notes for the latest available optional interfaces. -
Page 32: Removing The Coverplate
3.2.1 Removing the Coverplate Refer to Figure 3-1 and proceed as follows: 1. Attach the antistatic wrist strap (refer to the instructions on the antistatic wrist strap package). ➀ 2. Place the module on an antistatic pad on a sturdy flat surface. Figure 3-1 Removing the Coverplate À... -
Page 33: Installing The 5Pim
3.2.2 Installing the 5PIM Refer to Figure 3-2 and proceed as follows: ➀ 1. Locate the standoff shipped with the 5PIM removed from the board. Tighten the screw. ➁ 2. Position the 5PIM so its front panel is under the edge of the module front panel 3. -
Page 34: Installing Optional Gpims
4. Use the two saved coverplate screws not tighten screws. ➁ 5. Fasten the 5PIM to the standoff 6. Now tighten the two coverplate screws 7. This completes the 5PIM installation. If you installed a 5PIM that accepts GPIMs, proceed to Section 3.3 for the GPIM installation instructions. -
Page 35: Side Clip Gpims
Figure 3-3 Different Physical Styles of GPIMs ➀ Side clip After installing a GPIM, refer to 3.3.1 Side Clip GPIMs This section applies only to side clip GPIMs. Damage can result to the GPIM and host 5PIM if the directions in this section are not followed carefully. Refer to Appendix C for cable specifications for the GPIMs. - Page 36 ➀ 3. Hold the GPIM with the network port ➂ the 5PIM . The 20-pin connector wide part of the 20-pin connector oriented up in relation to the printing on the 5PIM. See Figure 3-4 to orient the GPIM 20-pin connector. 4.
-
Page 37: Removing The Side Clip Gpim
3.3.1.2 Removing the Side Clip GPIM CAUTION: Do NOT remove a GPIM from a slot without unlocking the tabs. This can damage the GPIM. The GPIM, 5PIM and module are sensitive to static discharges. Use an antistatic wrist strap and observe all static precautions during this procedure. Failure to do so could result in damage to the GPIM, 5PIM or module. -
Page 38: Locking Bar Gpims
3.3.2 Locking Bar GPIMs This section describes how to install and remove GPIMs that are equipped with a metal locking bar. Refer to Appendix C for cable specifications for the GPIMs. CAUTION: This section applies only to GPIMs equipped with a metal locking bar. Damage can result to the GPIM and 5PIM if the directions in this manual are not followed carefully. - Page 39 Figure 3-5 GPIM Metal Locking Bar Positions  ➀ GPIM ➁ Top of GPIM ➂ Metal locking bar (up position, unlocked) ➃ Network port ➄ 5PIM (Not installed in chassis) 2. Lift the GPIM metal locking bar ➀ 3. Hold the GPIM with the network port ➅...
-
Page 40: Removing The Locking Bar Gpim
GPIM. Inspect it for any problems with the connectors. If there are any problems, contact Enterasys Networks for technical support (refer to About This Guide). If there are no problems, re-insert the GPIM carefully, and firmly seat the GPIM in the connector of the 5PIM. -
Page 41: Installing The Module Into The 5C105 Chassis
Observe all precautions to prevent damage from Electrostatic Discharge (ESD). 5. Examine the module for damage. If any damage exists, DO NOT install the module. Immediately contact Enterasys Networks. Refer to CAUTION: To prevent damaging the backplane connectors in the following step, take care that the module slides in straight and properly engages the backplane connectors. - Page 42 Figure 3-6 Installing a Module into the 5C105 Chassis ➀ Card guides ➁ Slot number ➂ Module card ➃ Metal back panel 3-14 Æ Á Ã Â À ➄ Upper locking tab ➅ Lower locking tab ➆ Backplane connector Ä Å...
-
Page 43: Connecting To The Network
CONNECTING TO THE NETWORK This section provides the procedures for connecting unshielded twisted pair (UTP) segments from the network or other devices to the 5H152-50 details on how to get manuals, refer to the NOTE: If the module is being installed in a network using Port Trunking, there are rules concerning the network cable and port configurations that must be followed for Port Trunking to operate properly. - Page 44 Figure 3-7 Connecting a Twisted Pair Segment to the 5H152-50 ➀ RJ45 connector 3. Verify that a link exists by checking that the port RX (Receive) LED is ON (flashing amber, blinking green, or solid green). If the RX LED is OFF and the TX (Transmit) LED is not blinking amber, perform the following steps until it is on: a.
- Page 45 (Figure 3-8 Figure Figure 3-8, a crossover cable is normally used between hub devices (e.g., RJ45 switch port and another device port). A straight-through cable is used to connect between switches or hub devices and an end user (computer). Figure 3-8 Crossover Cable RJ45 Pinouts, Connection Between Hub Devices Ã...
-
Page 46: Connecting Utp Cables To The 5H153-50
Ensure that the twisted pair connection meets the dB loss and cable specifications outlined in the Cabling Guide. Refer to obtaining this document. 4. If a link is not established, contact Enterasys Networks. Refer to Guide for details. 5. Repeat all the steps above until all connections have been made. - Page 47 Figure 3-10 Connecting a Twisted Pair Segment to the 5H153-50 À ➀ RJ21 straight connector ➁ RJ21 port connector 3. If using an optional RJ21 angle adapter available from Enterasys Networks, refer to and proceed as follows: a. Insert the angle adapter b. Tighten the two screws ➁ connector Á...
- Page 48 c. Insert the RJ21 right-angled connector ➄ retaining clips snap into place. As shown in the cables to be positioned along the front of the device when using a right-angle RJ21 connector. NOTE: The cable pinouts for a 25-pair cable (RJ21) can be found in the Cabling Guide. Refer to “Related document.
- Page 49 Check that the twisted pair connection meets the specifications in the Cabling Guide. If a link is not established, contact Enterasys Networks. Refer to Guide for details. 5. Repeat all the steps above until all RJ21 connections are made.
-
Page 50: Connecting Fiber Optic Cables To Gpims
The GPIM-01, GPIM-08, and the GPIM-09 have an SC style connector used to connect to the Gigabit Ethernet network. Enterasys Networks offers fiber optic cables that have SC style connectors. These connectors are keyed to ensure proper crossover of the transmit TX and receive... -
Page 51: Gpim-09 Connection Using Multimode Cable
Launch Mode Conditioning cable as detailed in the following procedure. The following procedure is not needed when connecting single-mode fiber optic cable to the GPIM-09. Launch Mode Conditioning cables are available from Enterasys Networks. To connect the GPIM-09 to the network using multimode fiber, refer to follows: 1. -
Page 52: Network Connection Using Fiber Optic Cable
2. Once the Launch Mode Conditioning cable ➃ optic cable , proceed to 3.6.3 Network Connection Using Fiber Optic Cable To connect the module using fiber optic cable to the network, perform the following steps: NOTE: If connecting the module with a GPIM-09 to the network using multimode fiber optic cable, refer to 1. - Page 53 Figure 3-15 Fiber GPIM Connections À ➀ SC cable connector ➁ Latch keys (bottom of SC connector) 3. At the other end of the fiber optic cable, attach the SC connector to the other device. Verify that a link exists by checking that the port Receive LED (RX), shown in (flashing amber, blinking green, or solid green).
-
Page 54: Completing The Installation
Figure 3-16 Fiber Port LED Designations If a link has not been established, refer to “Getting Help” in About This Guide for details on contacting Enterasys Networks if a problem persists. COMPLETING THE INSTALLATION After installing the module and making the connections to the network, proceed as follows: 1. -
Page 55: Troubleshooting
This chapter provides information concerning the following: • Using LANVIEW (Section • Troubleshooting Checklist • Using the RESET Button USING LANVIEW The modules use a built-in visual diagnostic and status monitoring system called LANVIEW. The LANVIEW LEDs (Figure 4-1) allow quick observation of the network status to aid in diagnosing network problems. - Page 56 Port 1, Group 1 LEDs Table 4-1 describes the LED indications and provides recommended actions as appropriate. If the recommended actions suggest contacting Enterasys Networks for technical support, refer to “Getting Help” in About This Guide for directions. NOTE: The terms flashing, blinking, and solid used in Flashing indicates an LED is flashing randomly.
- Page 57 Solid. Diagnostic failure. Recommended Action Ensure chassis has adequate power. If the LED remains red for several minutes, contact Enterasys Networks for technical support. None. If the LED remains amber for more than several minutes, contact Enterasys Networks for technical support.
- Page 58 Solid. Port is in 100 Mbps (100BASE-TX). Recommended Action 1. Ensure that the STA is enabled and that there is a valid link. 2. Contact Enterasys Networks for technical support. None. 1. Ensure that the port is not disabled. 2. Contact Enterasys Networks for technical support.
-
Page 59: Troubleshooting Checklist
Community Names Table setup. 2. If the Community Names have been forgotten, refer to Section B.2 instructions on how to set the mode switch to reset the Community Names to their default values. 3, and that the host Section B.2... - Page 60 1. Verify that all network connections between the network management station and the module are valid and operating. 2. If the problem continues, contact Enterasys Networks for technical support. 1. Verify that Spanning Tree is enabled. Refer to the MATRIX E5 Series Modules Local Management User’s Guide for the...
-
Page 61: Using The Reset Button
USING THE RESET BUTTON The RESET button shown in CAUTION: Pressing the RESET button resets the device, and all current switching being performed by the module is halted. A network downtime of up to two minutes will result from this action for any devices connected to the module. Figure 4-2 RESET Button (same on both modules) ➀... -
Page 63: Module Specifications (5H152-50 And 5H153-50
Optional GPIM input/output port specifications • COM port pinout assignments • Regulatory compliance (Section Enterasys Networks reserves the right to change the specifications at any time without notice. MODULE SPECIFICATIONS (5H152-50 AND 5H153-50) Processor: Dynamic Random Access Memory (DRAM): FLASH Memory: A.1.1... -
Page 64: Environmental Requirements
A.1.2 Environmental Requirements Operating Temperature: Storage Temperature: Operating Relative Humidity: A.1.3 Input/Output Ports 5H152-50: Ports 1 through 48: Ports 49 and 50 5H153-50: Ports 1 through 48: Ports 49 and 50 5PIM SPECIFICATIONS A.2.1 Input/Output Ports (5PIM-G02 and 5PIM-G06 Options) 5PIM-G02: Ports 1 and 2: 5PIM-G06:... -
Page 65: 5Pim Physical Properties
A.2.2 5PIM Physical Properties Dimensions: Approximate Weight (Unit): MTBF (Predicted): 5PIM-02 5PIM-06 INPUT/OUTPUT PORTS (GPIM OPTIONS) NOTE: For the GPIM-01, GPIM-08, and GPIM-09 fiber optic port transmission and operating range specifications, refer to GPIM-01 Provides one, 1000BASE-SX compliant SC fiber optic connection. Supports multimode fiber optic cabling. -
Page 66: Com Port Pinout Assignments
COM PORT PINOUT ASSIGNMENTS The COM port is a serial communications port that supports Local Management. the COM port pin assignments. Table A-1 COM Port Pin Assignments Signal Name Transmit Data (XMT) Data Carrier Detect (DCD) Data Set Ready (DSR) Receive Data (RCV) Signal Ground (GND) Data Terminal Ready (DTR) -
Page 67: Mode Switch Bank Settings
CAUTION: An antistatic wrist strap is required (provided with the module) to perform the procedures in this appendix. Use the antistatic wrist strap when performing any of the procedures in this appendix to minimize ESD damage to the devices involved. Mode Switch Bank Settings B.1) (Section B.2) -
Page 68: Setting The Mode Switches
Switch definitions and positions are as follows: • Switches 1 through 4 – For Enterasys Networks use only. • Switch 5 – If the boot up diagnostics have been disabled, changing the position of this switch will enable them. Figure B-1 Mode Switch Location ➀... - Page 69 Switch 6 – No function. • Switch 7 – Clear NVRAM. Changing the position of this switch resets NVRAM on the next power-up of the device. All user-entered parameters, such as the IP address, device names, etc., are reset to the factory default settings. Once the module resets, you can either use the factory default settings or reenter your own parameters.
-
Page 71: Gpim Specifications
The optional 5PIM-G06 can support any combination of two GPIMs (GPIM-01, GPIM-08, and GPIM-09). This appendix lists the input/output port specifications and regulatory requirements for the GPIMs and the media they use. Enterasys Networks reserves the right to change these specifications at any time without notice. -
Page 72: Gigabit Ethernet Specifications
Gigabit Ethernet Specifications GIGABIT ETHERNET SPECIFICATIONS The following specifications for the GPIMs meet or exceed the IEEE 802.3z specification. C.2.1 GPIM-01 Specifications (1000BASE-SX) Table C-1 GPIM-01 Optical Specifications Item Transmit Power (minimum) Receive Sensitivity Link Power Budget Table C-2 GPIM-01 Operating Range Item 62.5 µm MMF 62.5 µm MMF... -
Page 73: Gpim-09 Specifications (1000Base-Lx
Table C-4 GPIM-08 Operating Range Item 10 µm SMF (1550 nm Wavelength) C.2.3 GPIM-09 Specifications (1000BASE-LX) Table C-5 GPIM-09 Optical Specifications Item Transmit Power (minimum) Receive Sensitivity Link Power Budget Table C-6 GPIM-09 Operating Range Item 62.5 µm MMF 50 µm MMF 50 µm MMF 10 µm SMF To obtain the distance of 550 m for the GPIM-09 using multimode fiber, Launch Mode Conditioning cable must be used. -
Page 74: Physical And Environmental Specifications
Physical and Environmental Specifications PHYSICAL AND ENVIRONMENTAL SPECIFICATIONS Physical Dimensions: Weight: Environmental Operating Temperature: Storage Temperature: Operating Humidity: GPIM Specifications 1.2 H x 3.4 W x 6.5 D (cm) 0.47 H x 1.34 W x 2.56 D (in) 25 g (0.88 oz) 5°C to 40°C (41°F to 104°F) -30°C to 90°C (-22°F to 194°F) 5% to 90% (non-condensing) - Page 75 Numerics 1000BASE-FL requirements for 1000BASE-SX/LX network connections requirements for 1000BASE-T network connections requirements for 100BASE-TX requirements for 10BASE-T connection 3-15, 3-18 requirements 5C105 Chassis module installation into 3-13 5H152-50 and 5H153-50 environmental requirements physical properties 5H152-50 module introduction to 5H153-50 module introduction to 5PIM-G02 about the...
