Setting the Mode Switches
• Switch 7 – Clear Persistent Data. Changing the position of this switch clears Persistent Data on
the next power‐up of the module. All user‐entered parameters (such as the IP address, module
names, and so forth) are reset to the factory default settings. Once the module resets, you can
either use the factory default settings or reenter your own parameters.
• Switch 8 – Clear Admin Password. Changing the position of this switch clears the admin
password, and restores the factory default password on the next power‐up of the module.
Once the module resets, you can either use the factory default settings or reenter your own
password.

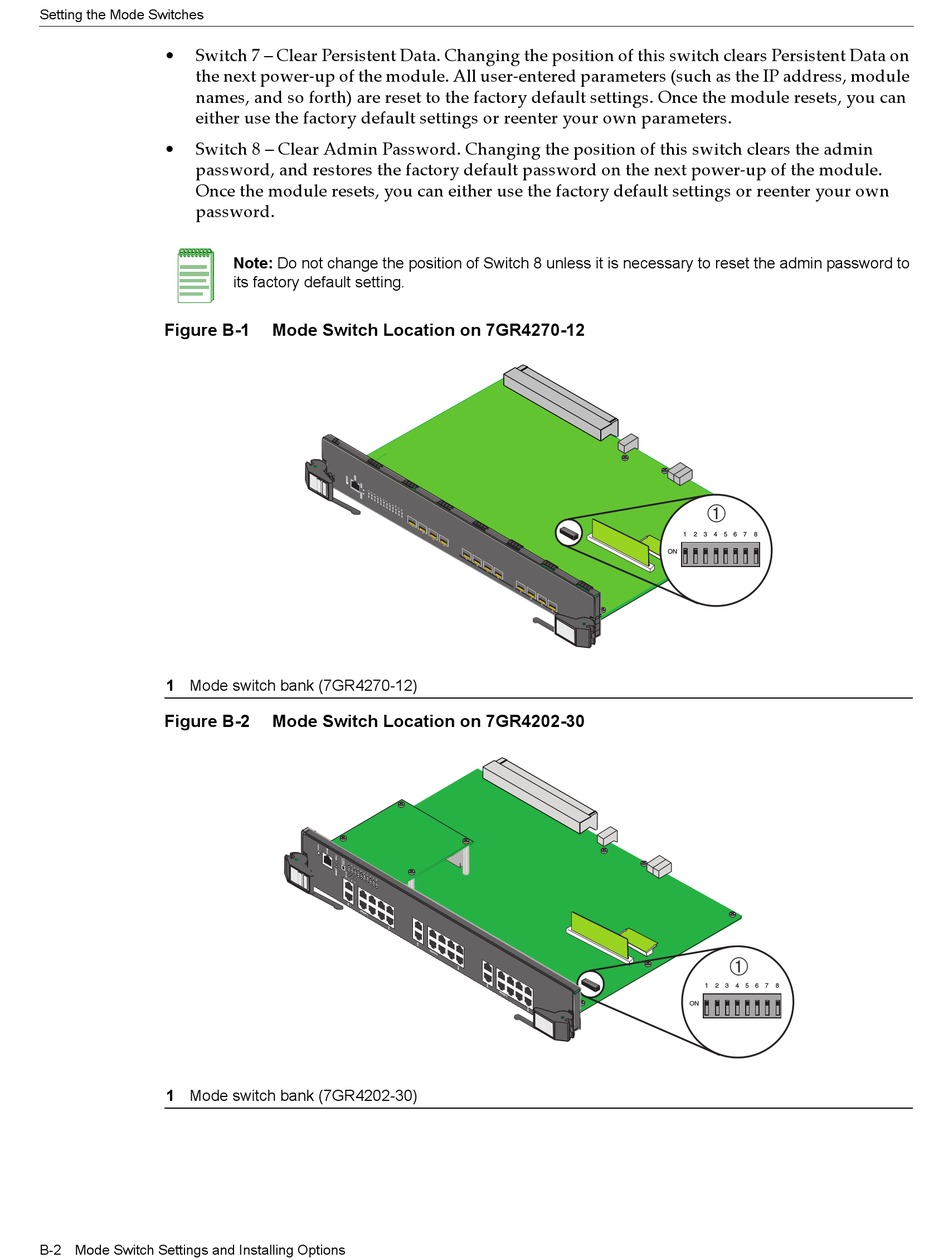

Figure B-1
1 Mode switch bank (7GR4270-12)
Figure B-2
1 Mode switch bank (7GR4202-30)
B-2 Mode Switch Settings and Installing Options
Note: Do not change the position of Switch 8 unless it is necessary to reset the admin password to
its factory default setting.

Mode Switch Location on 7GR4270-12

Mode Switch Location on 7GR4202-30

À
➀
1 2 3 4 5 6 7 8
ON
