Using LANVIEW

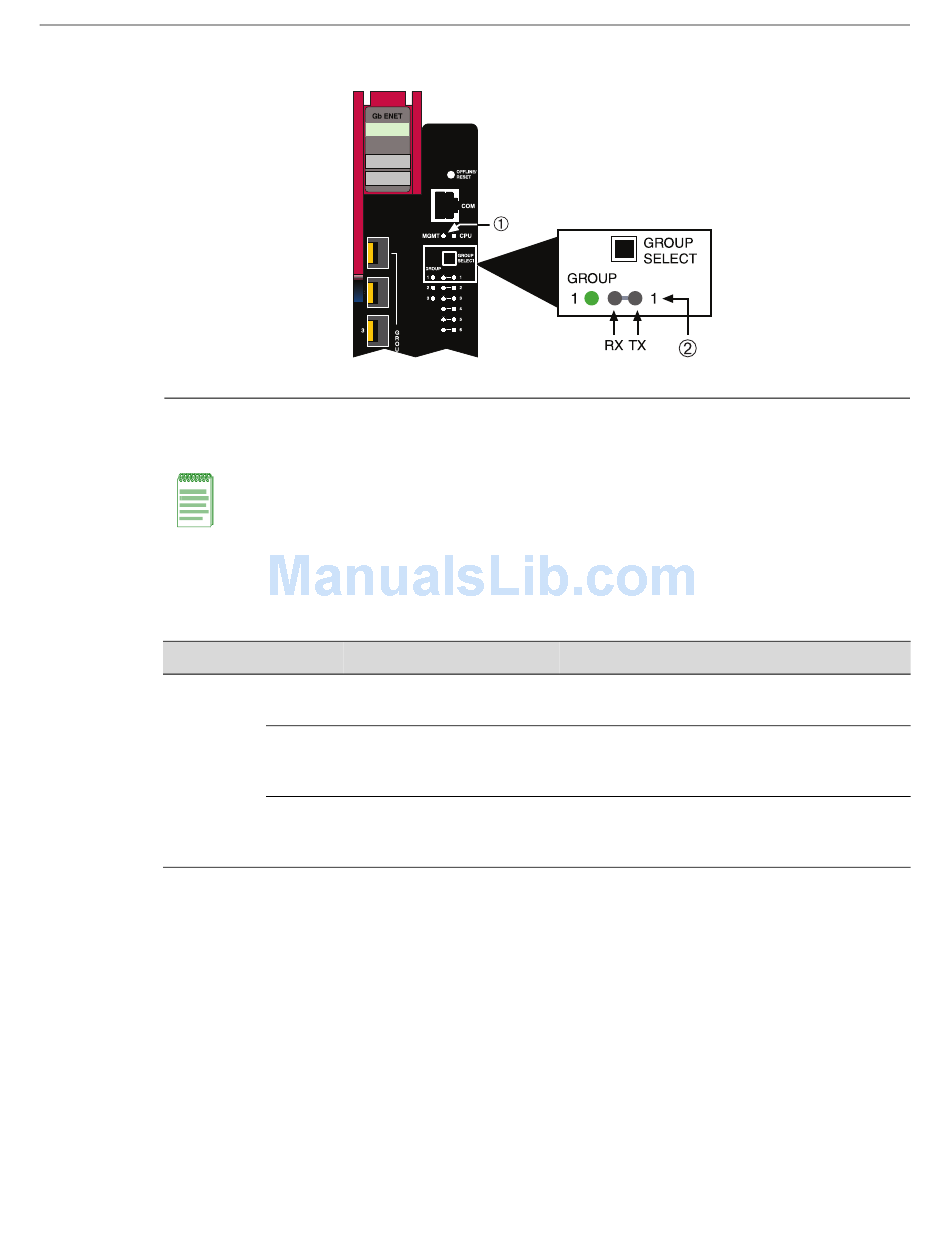

Figure 4-1
1 MGMT LED
Table 4‐1 describes the LED indications and provides recommended actions as appropriate.
Table 4-1 LANVIEW LEDs
LED
MGMT
4-2 Troubleshooting

LANVIEW LEDs

7GR4280-19
Note: The terms flashing, blinking, and solid used in
Flashing indicates an LED is flashing randomly.
Blinking indicates an LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid indicates a steady LED light. No pulsing.
Alternate indicates an LED is flashing in a steady rate other than 50% on, 50% off.
Color State
None Off. This module is NOT the
Management Module.
Green Solid. This module is the
designated Management
Module.
Amber Flashing. This is a
temporary indication that the
module is saving data.
2 Group 1, Port 1 LEDs
Table 4-1 indicate the following:
Recommended Action
None.
None.
None.
