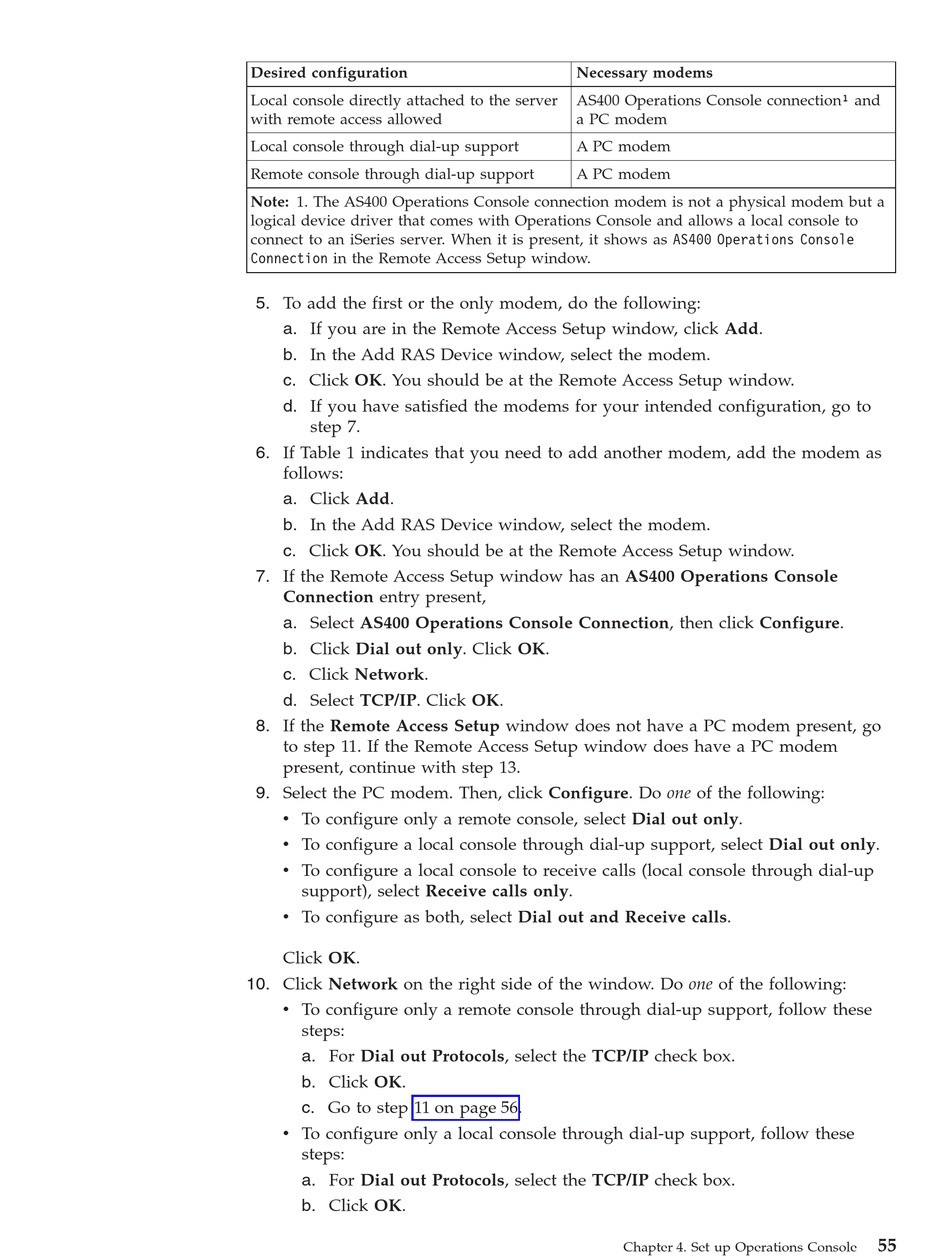

Desired configuration
Local console directly attached to the server
with remote access allowed
Local console through dial-up support
Remote console through dial-up support
Note: 1. The AS400 Operations Console connection modem is not a physical modem but a
logical device driver that comes with Operations Console and allows a local console to
connect to an iSeries server. When it is present, it shows as AS400 Operations Console
Connection in the Remote Access Setup window.
5. To add the first or the only modem, do the following:
a. If you are in the Remote Access Setup window, click Add.
b. In the Add RAS Device window, select the modem.
c. Click OK. You should be at the Remote Access Setup window.
d. If you have satisfied the modems for your intended configuration, go to
step 7.
6. If Table 1 indicates that you need to add another modem, add the modem as
follows:
a. Click Add.
b. In the Add RAS Device window, select the modem.
c. Click OK. You should be at the Remote Access Setup window.
7. If the Remote Access Setup window has an AS400 Operations Console
Connection entry present,
a. Select AS400 Operations Console Connection, then click Configure.
b. Click Dial out only. Click OK.
c. Click Network.
d. Select TCP/IP. Click OK.
8. If the Remote Access Setup window does not have a PC modem present, go
to step 11. If the Remote Access Setup window does have a PC modem
present, continue with step 13.
9. Select the PC modem. Then, click Configure. Do one of the following:
v To configure only a remote console, select Dial out only.
v To configure a local console through dial-up support, select Dial out only.
v To configure a local console to receive calls (local console through dial-up
support), select Receive calls only.
v To configure as both, select Dial out and Receive calls.
Click OK.
10. Click Network on the right side of the window. Do one of the following:
v To configure only a remote console through dial-up support, follow these
steps:
a. For Dial out Protocols, select the TCP/IP check box.
b. Click OK.
c. Go to step 11 on page 56.
v To configure only a local console through dial-up support, follow these
steps:
a. For Dial out Protocols, select the TCP/IP check box.
b. Click OK.
Necessary modems
AS400 Operations Console connection¹ and
a PC modem
A PC modem
A PC modem
Chapter 4. Set up Operations Console
55
