SiUS331708EA
6.2.2 With Optional Infrared Presence/Floor Sensor
The relationship between remote controller set temperature and control target temperature is described below.
The temperature difference for cooling ⇔ heating mode switching is 5°C (9°F).
•
• When using the floor temperature as the control target, the remote controller set temperature is equal to the
actual control target temperature in heating operation.
• The above also applies to automatic operation.

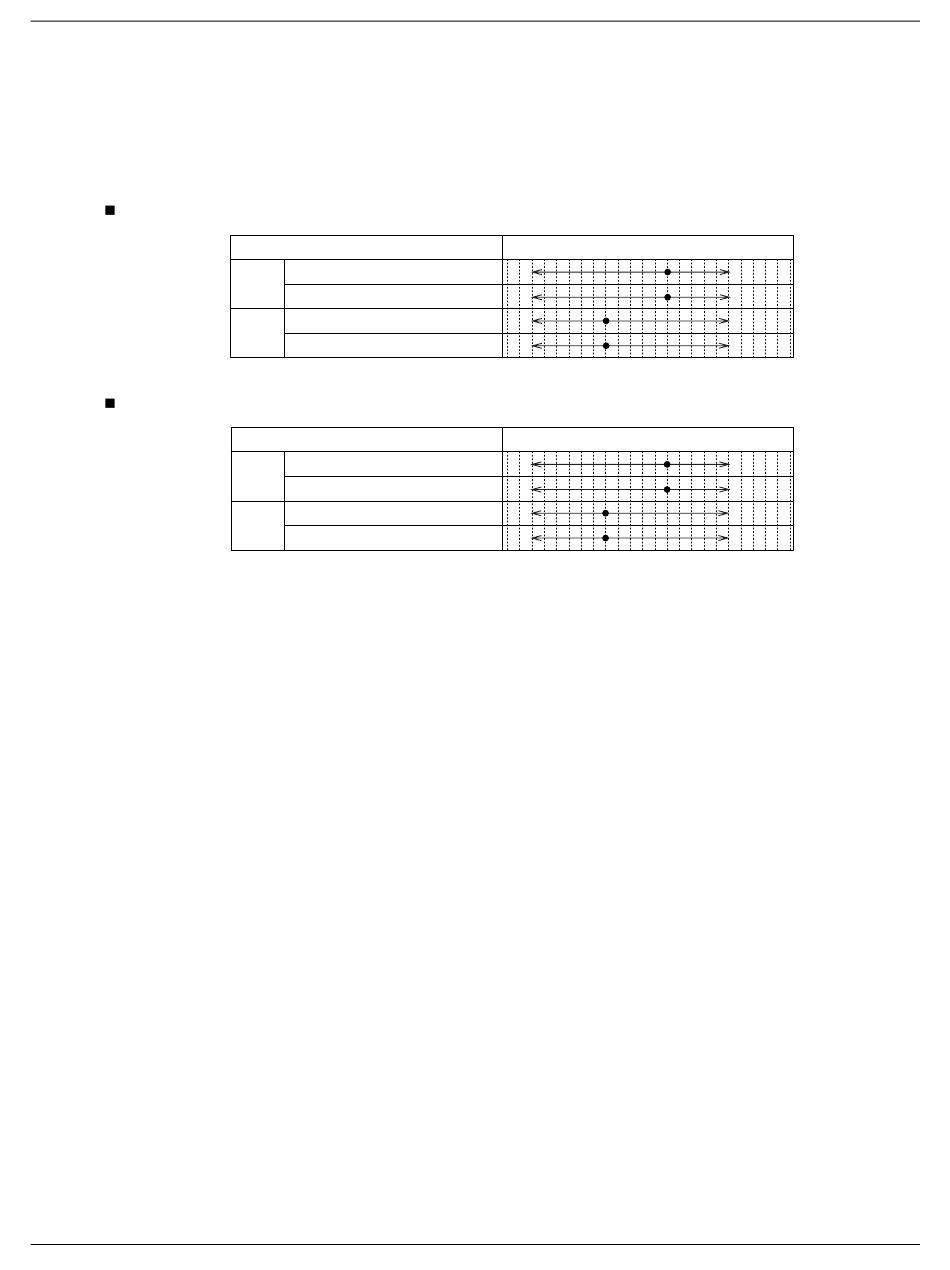

When setting the suction air thermistor (Default setting)
When using the remote controller thermistor (Field setting is required)
Examples are given to illustrate a control target temperature that satisfies the remote controller set temperature.
Regarding control target temperature
When using the infrared floor sensor, the temperature around people will be treated as the control target
temperature for operation.
What is the temperature around people?
The temperature around people refers to the temperature of the living space, obtained from the temperature
around the ceiling and the temperature underfoot. The temperature is calculated using the detected values of the
suction air thermistor and the infrared floor sensor.
It is difficult to use only suction air temperature control for underfoot air conditioning.
Functions and Control
Temperature
Remote controller set temperature
Cooling
Control target temperature
Remote controller set temperature
Heating
Control target temperature
Temperature
Remote controller set temperature
Cooling
Control target temperature
Remote controller set temperature
Heating
Control target temperature
14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
57.2 59 60.8 62.6 64.4 66.2 68 69.8 71.6 73.4 75.2 77 78.8 80.6 82.4 84.2
14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
57.2 59 60.8 62.6 64.4 66.2 68 69.8 71.6 73.4 75.2 77 78.8 80.6 82.4 84.2
Outline of Control (Indoor Unit)
29 30 31 32 33 34 35 36˚C
86 87.8 89.6 91.4 93.2 95 96.8 ˚F
29 30 31 32 33 34 35 36˚C
86 87.8 89.6 91.4 93.2 95 96.8 ˚F
