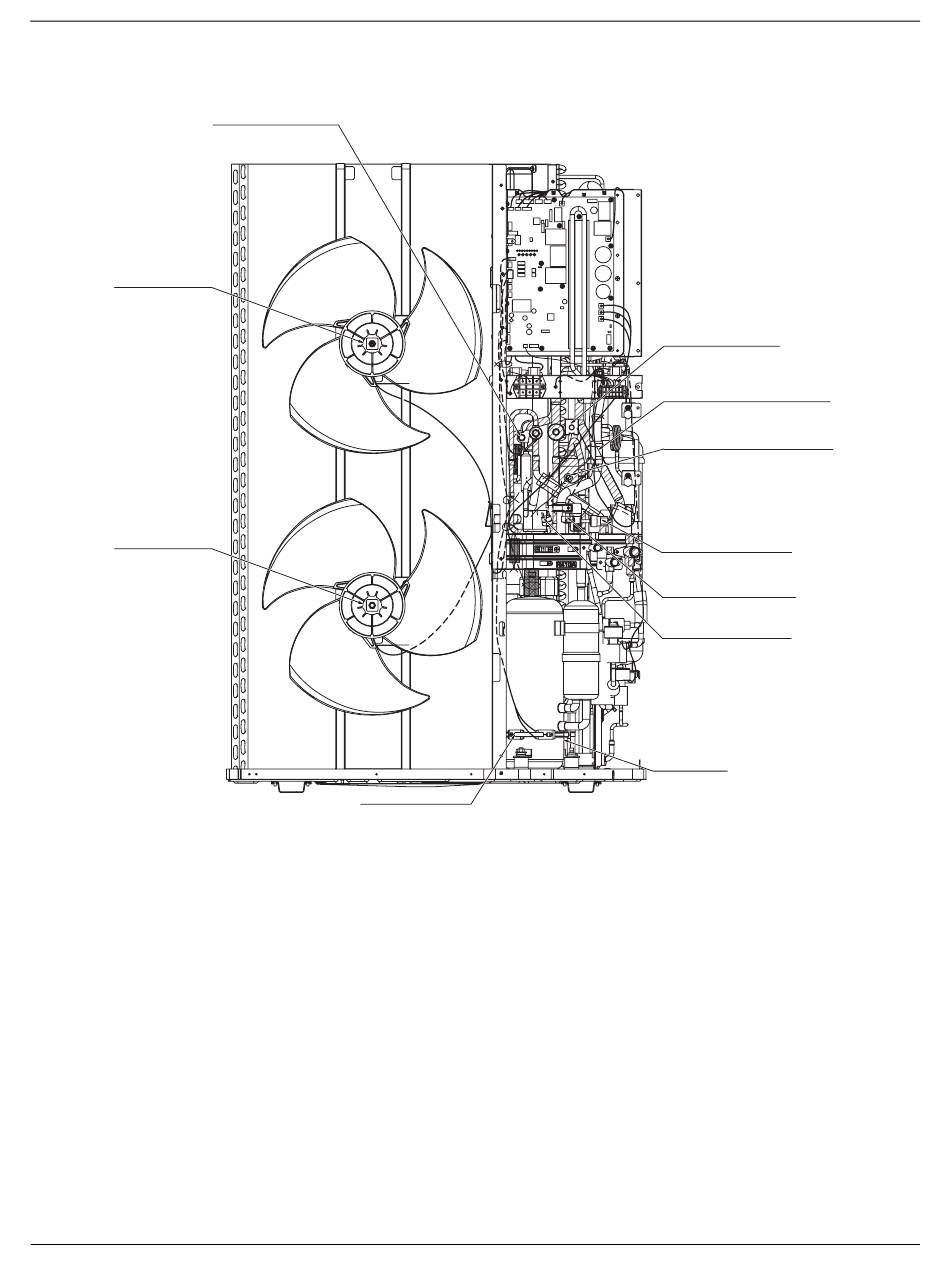

Functional Parts Layout
2.3
RXSQ60TAVJU
Front view
Inverter fan
(M1F)
Inverter fan
(M2F)
21
Four way valve coil
Crankcase heater
(E1HC)
SiUS331708EA
Four way valve coil
(Y1S)
Thermistor (Suction pipe 2)
(R5T)
Thermistor (Discharge pipe)
(R2T)
Low pressure sensor
(S1NPL)
High pressure sensor
(S1NPH)
High pressure switch
(S1PH)
Compressor
(M1C)
C: 1P441643F
