Setting for wireless remote controller
The address for the wireless remote controller is set to 1 at the factory. To change the setting, proceed as
follows:
1. Press FILTER SIGN RESET button and INSPECTION/TEST button at the same time for 4 seconds to enter
field setting mode. (SETTING is indicated on the display.)
2. Press FAN button and select A or b. Each time the button is pressed, the display switches between A and b.
3. Press UP button or DOWN button to select an address from 1-3 as same as the receiver.
Address can be set from 1-6, but the receiver does not work with addresses 4-6.)
4. Press RESERVE button to confirm the setting.
5. Press INSPECTION/TEST button for 1 second to return to normal mode.
Multiple Settings A/b
The command such as operation mode or temperature setting by this remote controller will be rejected when the
target indoor unit operation is restricted as by an external control such as centralized control.
Since the setting acceptance is hard to discriminate with such circumstances there are two setting options
provided to enable discriminating by a beeping sound according to the operation: "A: Standard" or "b: Multi
System". Set the setting according to the customer's intention.
Remote Controller
Multiple setting
A: Standard
(factory set)
b: Multi
System
Remote Controller
Field setting mode
Address
Multiple setting
Indoor Unit
Display on remote Behavior to the remote controller operation when
controller the functions are restricted as by an external
control.
Accepts the functions except restricted. (Sounds
All items displayed. one long beep or three short beeps)
There may be a difference from the indoor unit
status with remote controller display.
<When some restricted functions are included
in the transmitted items>
Accepts the functions except restricted. (Sounds
Display only items one long beep or three short beeps)
transmitted for a There may be a difference from the indoor unit
while. status with remote controller display.
<When no restricted function is included>
Accepts all items transmitted (Sounds two short
beeps)
The remote controller display agrees with the
indoor unit status.

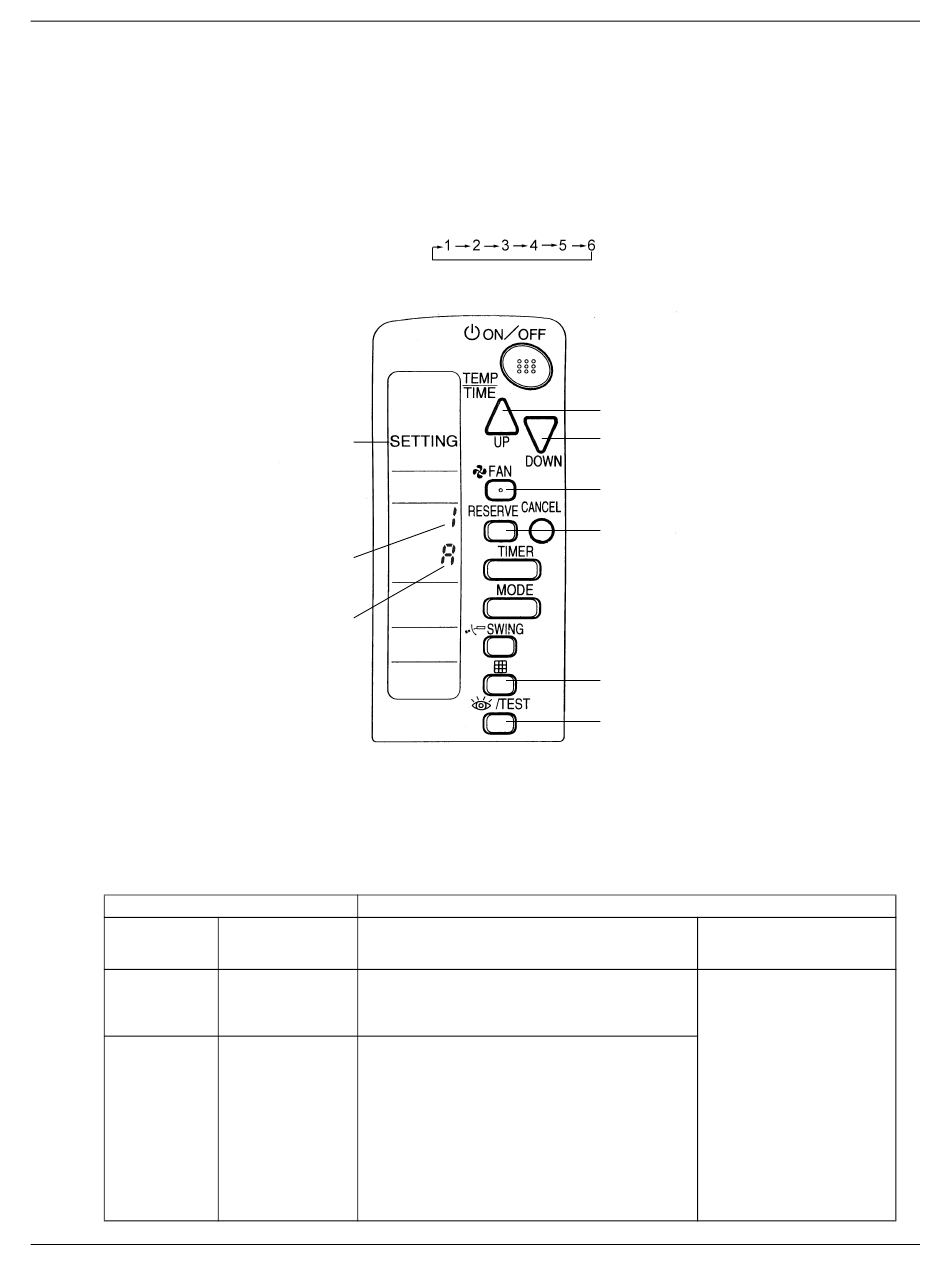

Address Setting for Wireless Remote Controller
UP button
DOWN button
FAN button
RESERVE button
FILTER SIGN RESET button
INSPECTION/TEST button
Other than the left
Accepts all items transmitted
(Sounds two short beeps)
The remote controller
display agrees with the
indoor unit status.
