Wiring Diagrams; Outdoor Unit - Daikin RXSQ24TAVJU Service Manual

60 hz
Hide thumbs Also See for RXSQ24TAVJU:
Table of Contents

Advertisement

SiUS331708EA

Wiring Diagrams

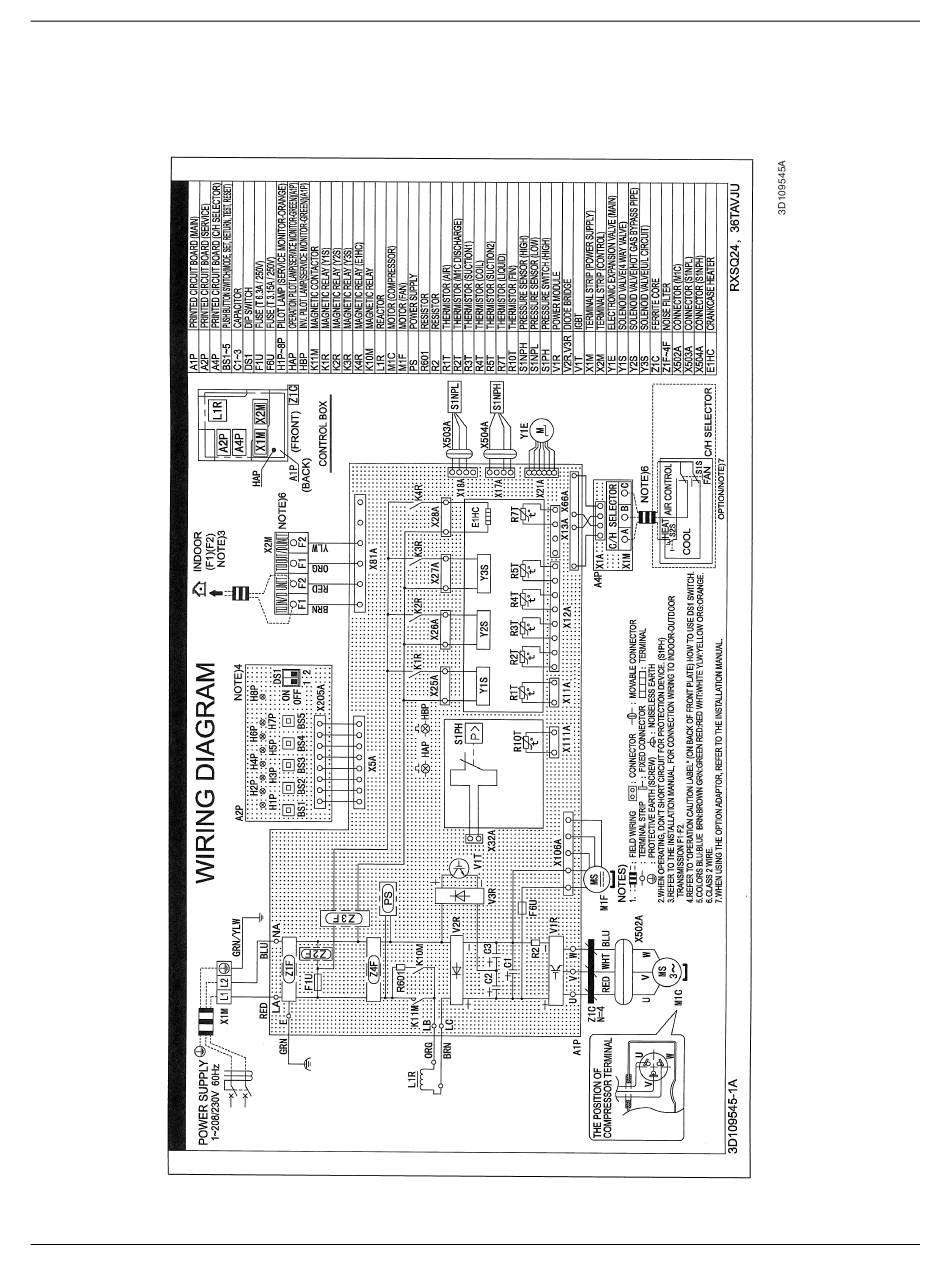

1. Wiring Diagrams
1.1

Outdoor Unit

RXSQ24/36TAVJU
