Functional Parts Layout
2.2

RXSQ48TAVJU

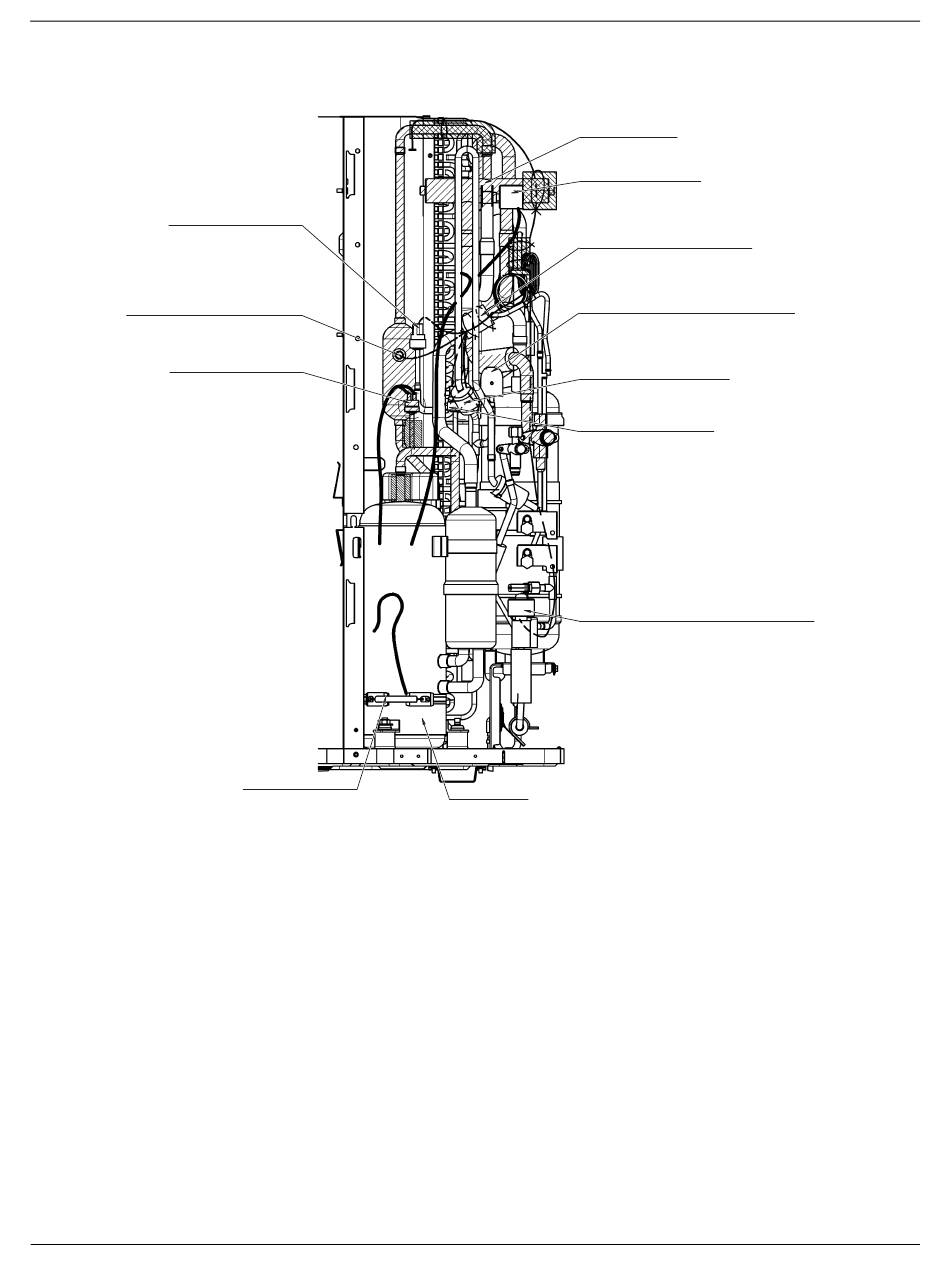

Front view
Low pressure sensor
(S1NPL)
Thermistor (Discharge pipe)
(R2T)
High pressure switch
(S1PH)
19
Crankcase heater
(E1HC)
Four way valve
(Y1S)
Four way valve coil
(Y1S)
Thermistor (Suction pipe 2)
(R5T)
Solenoid valve (Unload circuit) coil
(Y3S)
Thermistor (Liquid pipe)
(R7T)
High pressure sensor
(S1NPH)
Electronic expansion valve/coil (Main)
(Y1E)
Compressor
(M1C)
SiUS331708EA
C: 1P374828Q
Refrigerant Circuit
