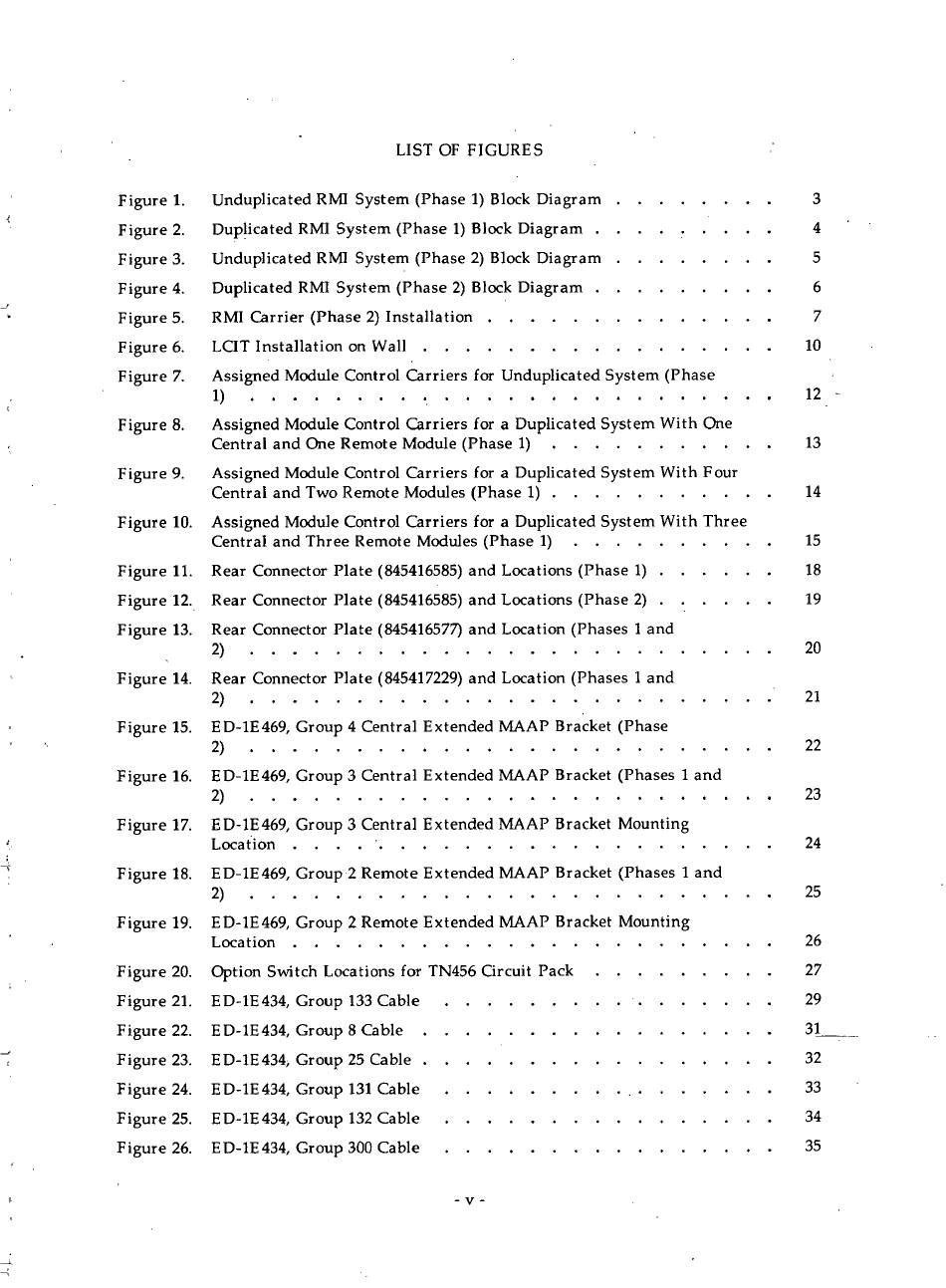

LIST OF FIGURES
Figure 1.
Unduplicated RMI System (Phase 1) Block Diagram 3
Figure 2.
Duplicated RMI System (Phase 1) Block Diagram
4
Figure 3.
Unduplicated RMI System (Phase 2) Block Diagram 5
Figure 4.
Duplicated RMI System (Phase 2) Block Diagram 6
Figure 5.
RMI Carrier (Phase 2) Installation
7
Figure 6.
LOT Installation on Wall
10
Figure 7.
Assigned Module Control Carriers for Unduplicated System (Phase
1)
12 -
Figure 8.
Assigned Module Control Carriers for a Duplicated System With One
Central and One Remote Module (Phase 1)
13
Figure 9.
Assigned Module Control Carriers for a Duplicated System With Four
Central and Two Remote Modules (Phase 1) 14
Figure 10.
Assigned Module Control Carriers for a Duplicated System With Three
Central and Three Remote Modules (Phase 1) 15
Figure 11. Rear Connector Plate (845416585) and Locations (Phase 1) 18
Figure 12. Rear Connector Plate (845416585) and Locations (Phase 2) 19
Figure 13. Rear Connector Plate (845416577) and Location (Phases 1 and
2)
20
Figure 14.
Rear Connector Plate (845417229) and Location (Phases 1 and
2)
21
Figure 15. ED-1E469, Group 4 Central Extended MAAP Bracket (Phase
2)
22
Figure 16. ED -1E469, Group 3 Central Extended MAAP Bracket (Phases 1 and
2)
23
Figure 17. ED-1E469, Group 3 Central Extended MAAP Bracket Mounting
Location
24
Figure 18. ED -1E469, Group 2 Remote Extended MAAP Bracket (Phases 1 and
2)
25
Figure 19. ED -1E469, Group 2 Remote Extended MAAP Bracket Mounting
Location
26
Figure 20.
Option Switch Locations for TN456 Circuit Pack
27
Figure 21. ED-1E434, Group 133 Cable
29
Figure 22. ED-1E434, Group 8 Cable
31
Figure 23. ED-1E434, Group 25 Cable
32
Figure 24. ED-1E434, Group 131 Cable
33
Figure 25. ED -1E434, Group 132 Cable
34
Figure 26. ED-1E434, Group 300 Cable
35
