Security Guide for ProCurve 9300/9400 Series Routing Switches
Sample 802.1X Configurations
This section illustrates a sample point-to-point configuration and a sample hub configuration that use 802.1X port
security.
Point-to-Point Configuration
Figure 4.6 illustrates a sample 802.1X configuration with Clients connected to three ports on the HP device. In a
point-to-point configuration, only one 802.1X Client can be connected to each port.

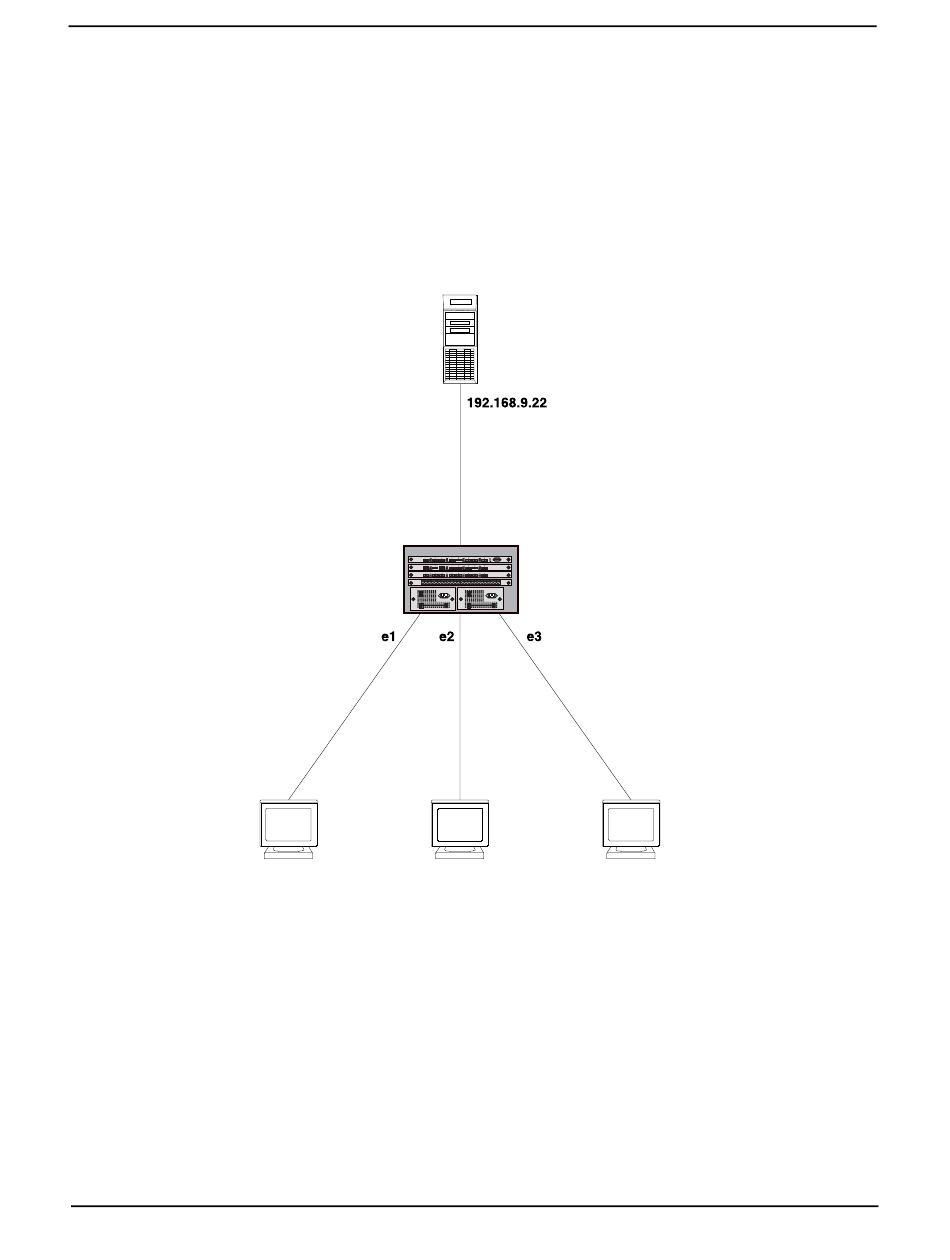

Figure 4.6 Sample point-to-point 802.1X configuration
The following commands configure the HP device in Figure 4.6:
ProCurveRS(config)# aaa authentication dot1x default radius
ProCurveRS(config)# radius-server host 192.168.9.22 auth-port 1812 acct-port 1813
default key mirabeau dot1x
ProCurveRS(config)# dot1x-enable e 1 to 3
ProCurveRS(config-dot1x)# re-authentication
ProCurveRS(config-dot1x)# timeout re-authperiod 2000
ProCurveRS(config-dot1x)# timeout quiet-period 30
ProCurveRS(config-dot1x)# timeout tx-period 60
ProCurveRS(config-dot1x)# max-req 6
ProCurveRS(config-dot1x)# exit
4 - 28
Clients/Supplicants running 802.1X-compliant client software
RADIUS Server
(Authentication Server)
HP Device
(Authenticator)
