Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
9 - 10

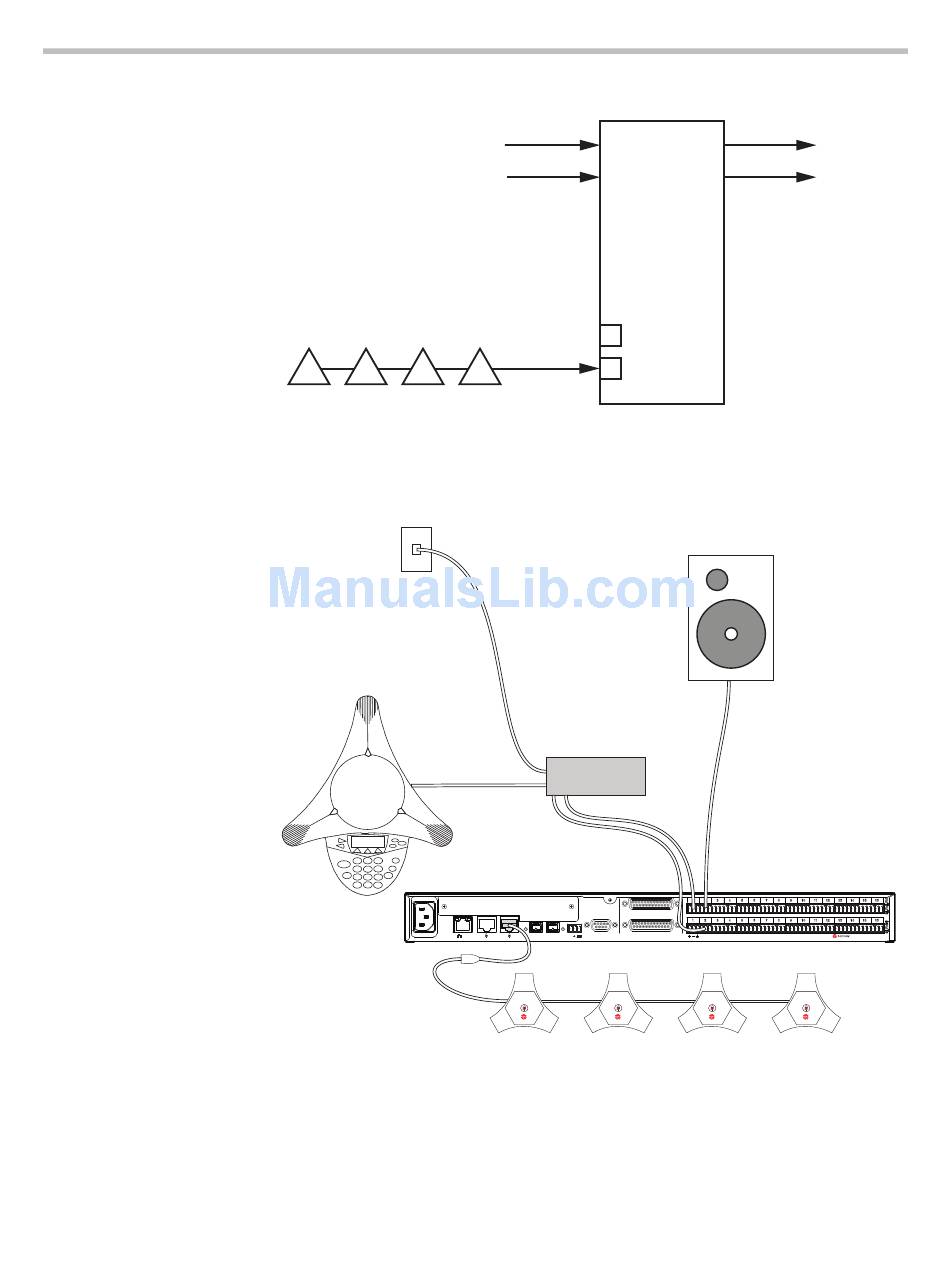

The block diagram of this system is shown in the following figure.
Program Audio
VTX1000 In
HDX Microphones
The From VTX1000 and To VTX10000 signals are wired to the VTX1000 power
module as shown in the following figure.
POTS
Interface
SoundStation
VTX1000
SoundStructure
CLink2 (L)
CLink2 (R)
SoundStation
VTX1000
Power Supply
Aux In
Aux Out
SoundStructure
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
REMOTE CONTROL 1
RS-232
IN OUT 12V REMOTE CONTROL 2
LAN C-LINK2 OBAM IR
POLYCOM POLYCOM
VTX1000 Out
Amplifier
C16
Powered
Loudspeaker
1 2 3 4 5 6 7 8 9 10 11 12
1 2 3 4 5 6 7 8 9 10 11 12
POLYCOM POLYCOM
13 14 15 16
13 14 15 16
SoundStructure C16 TM
