Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
3 - 18

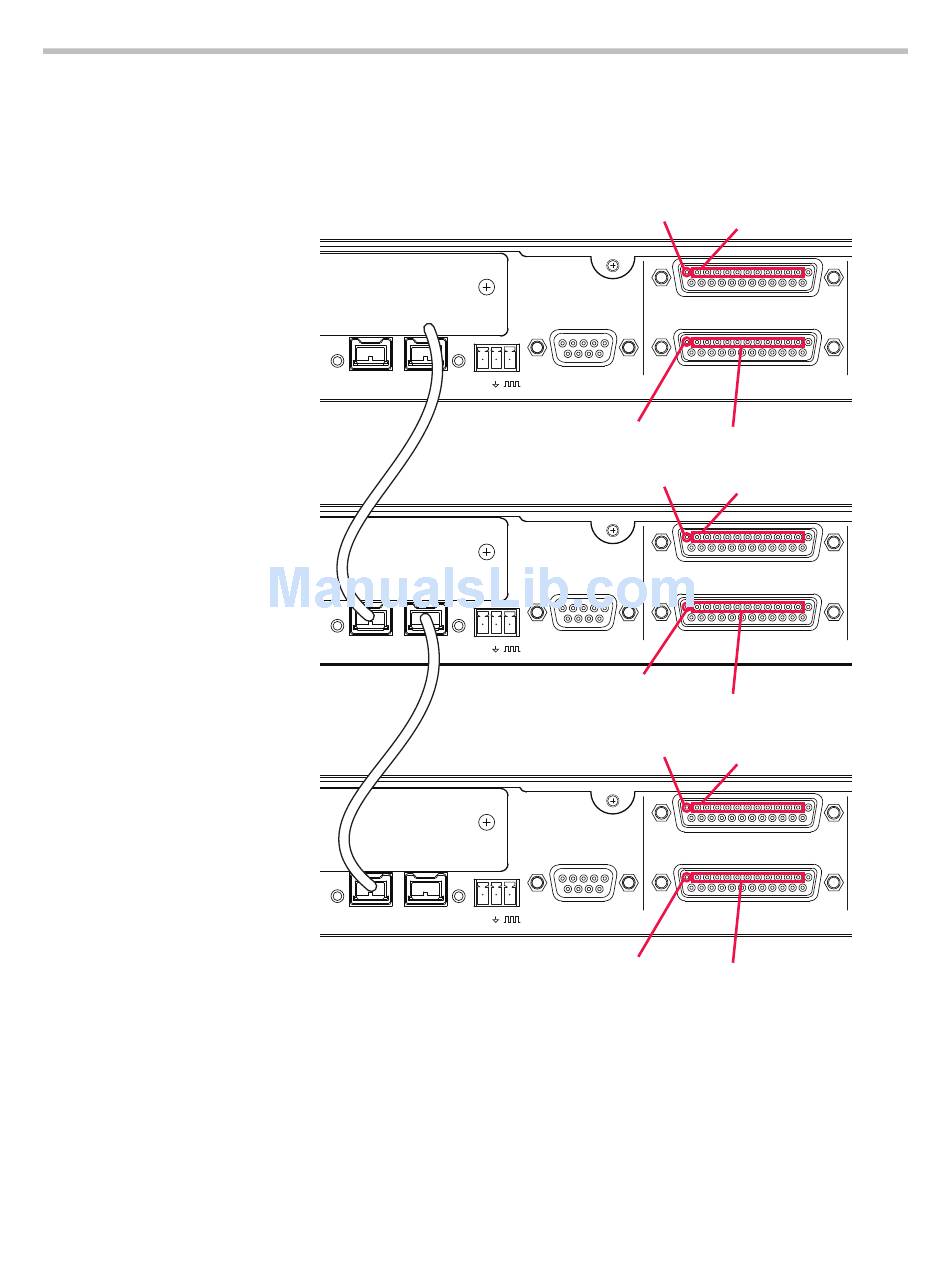

When multiple devices are OBAM linked as shown in the next figure, the logic
inputs and outputs on the first device will be numbered 1 - 22 and the logic
inputs and outputs on the second device (device B) will be numbered 23 - 44,
and so on. The analog gain inputs will be numbered 1 and 2 on the first device,
3 and 4 on the second device, and so on.
IN OUT
OBAM
IN OUT
OBAM
IN OUT
OBAM
Due to the one large system design philosophy, logic input pins on any device
can be used to control features on any SoundStructure device - not just provide
control on the device the logic inputs are on. Similarly logic outputs can be
used to provide status on signals on any SoundStructure device - not just
status on a physical channel on that particular device.
Analog Gain Input 1
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
12V
IR
Analog Gain Input 2
Analog Gain Input 3
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
12V
IR
Analog Gain Input 4
Analog Gain Input 5
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
RS-232
12V
IR
Analog Gain Input 6
Logic Outputs 1 - 11
REMOTE CONTROL 1
REMOTE CONTROL 2
Logic Outputs 12 - 22
Logic Outputs 23 - 33
REMOTE CONTROL 1
REMOTE CONTROL 2
Logic Outputs 23 - 33
Logic Outputs 34 - 44
REMOTE CONTROL 1
REMOTE CONTROL 2
Logic Outputs 34 - 44
