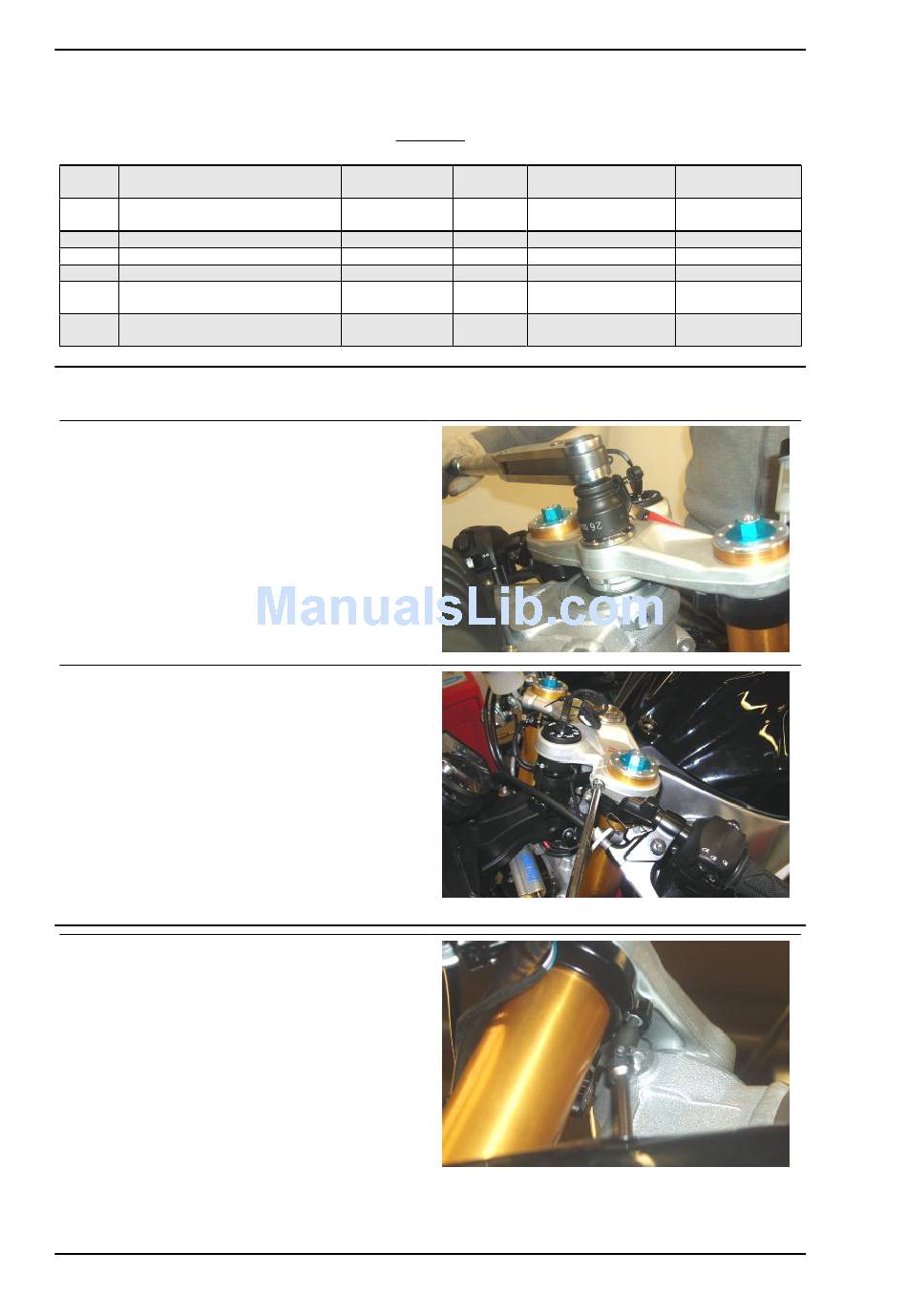

Suspensions
pos. Description
1 Screws fastening upper yoke to stan-
chions
2 Screws fastening lower yoke to stan-
chions
3 Headstock lock ring
4 Headstock counter-lock ring
5 Upper yoke fixing cap
6 Screw fastening shock absorber to
frame
7 Screw fastening shock absorber to
lower yoke

Adjusting play

•
Unscrew and remove the upper plate
fixing cover on the headstock and col-
lect the washer.
•
Loosen the screws fixing the fork stan-
chions to the upper yoke.
•
Working from both sides, unscrew and
remove the semi-handlebar screws.
SUSP - 382
S
TEERING
Type Quantity
M8 2 25 Nm (18.44 lbf ft)
M8 4 25 Nm (18.44 lbf ft)
M35x1 1 40 Nm (29.50 lbf ft)
M35x1 1
- 1 100 Nm (73.76 lbf ft)
M6 1 10 Nm (7.37 lbf ft)
M6 1 10 Nm (7.37 lbf ft)
RSV4 R
Torque Notes
-
-
-
- Manually close
-
-
-
