Rear Stop Switch And Speed Sensor Cable Harness Routing On The Right Side; Rear Saddle Mounting Area - APRILIA RSV4 R Service Station Manual

Electrical system

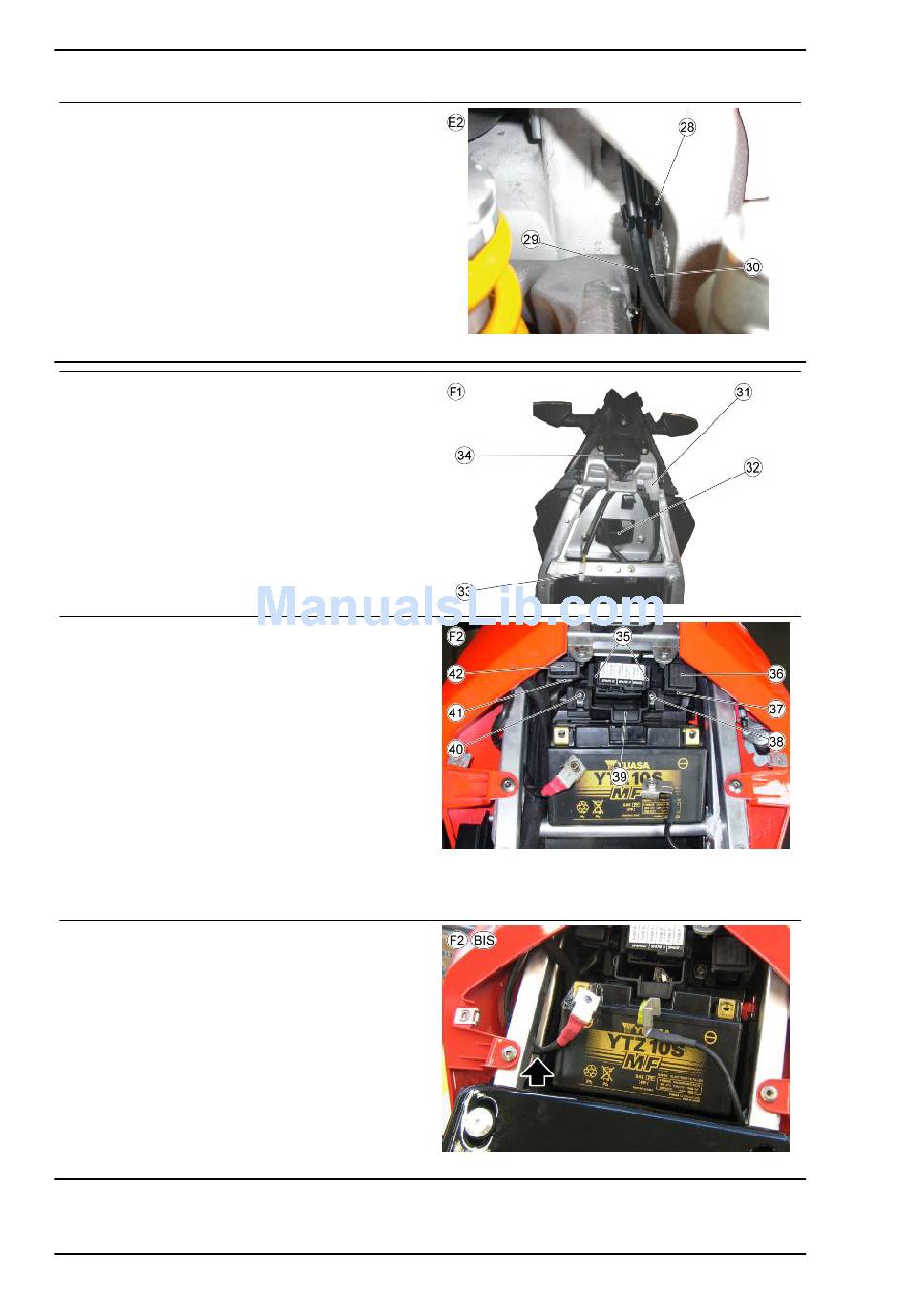

TABLE E2 - REAR STOP SWITCH AND SPEED
SENSOR CABLE HARNESS ROUTING ON THE
RIGHT SIDE
28. Cable grommet
29. Speed sensor cable harness
30. Rear brake switch cable harness
TABLE F1 - REAR SADDLE MOUNTING AREA
31. License plate frame cable harness connector
32. License plate frame cable harness routing
33. Taillight connector
34. Taillight
TABLE F2
35. Insert the fuse-box in the two tongues on the
battery mounting bracket
36. Protection relay and relay socket rubber ring
37. Insert the relay in the plastic tongue on the left
38. TBEI M5x16 screw
39. Battery mounting bracket
40. TBEI M5x16 screw
41. Insert the relay in the plastic tongue on the right
42. Relay and relay socket rubber ring
TABLE F2 BIS
•
Pass the positive battery cable under
the top of the frame.
