Electrical system
garding the control unit serial number and the serial number of the Axone or Navigator that
has carried out the download is also included in the file
Saved data file deletion
Error cause
•
Deletion enabled only if the file is downloaded after setting KEY ON

NEW CONTROL UNIT ACTIVATION PROCEDURE and REPROGRAMMING

After installing the control unit for the first time, or after REPROGRAMMING the control unit with a
different or more updated mapping, turn the key to ON and wait 3 seconds; during this time the control
unit carries out throttle position acquisition. Connect to diagnosis instrument and check that the statuses
"Front throttle automatic self-acquisition" and "Rear throttle automatic self-acquisition" are "Carried out"
and "Throttle grip self-acquisition" is "Not carried out" (this last status entails Urgent service being dis-
played on the instrument panel). If front and rear throttle automatic self-acquisition indicate "Not carried
out" go to phase 1, if indicate "Carried out" go to phase 2. Phase 1: current errors have probably been
detected by the control unit: solve these malfunctions and check the two statuses. Throttle Self-learning
can also be checked from the Parameter adjustment (screwdriver and hammer) screen page. Stage 2:
Carry out the Throttle Self-learning from the Parameter adjustment (screwdriver and hammer) screen
page and check that Throttle Self-learning status is Carried out. If not OK the voltage detected on the
throttle is out of scale (check with diagnosis instrument) or current errors have been probably detected
by the control unit: solve these malfunctions and repeat the procedure

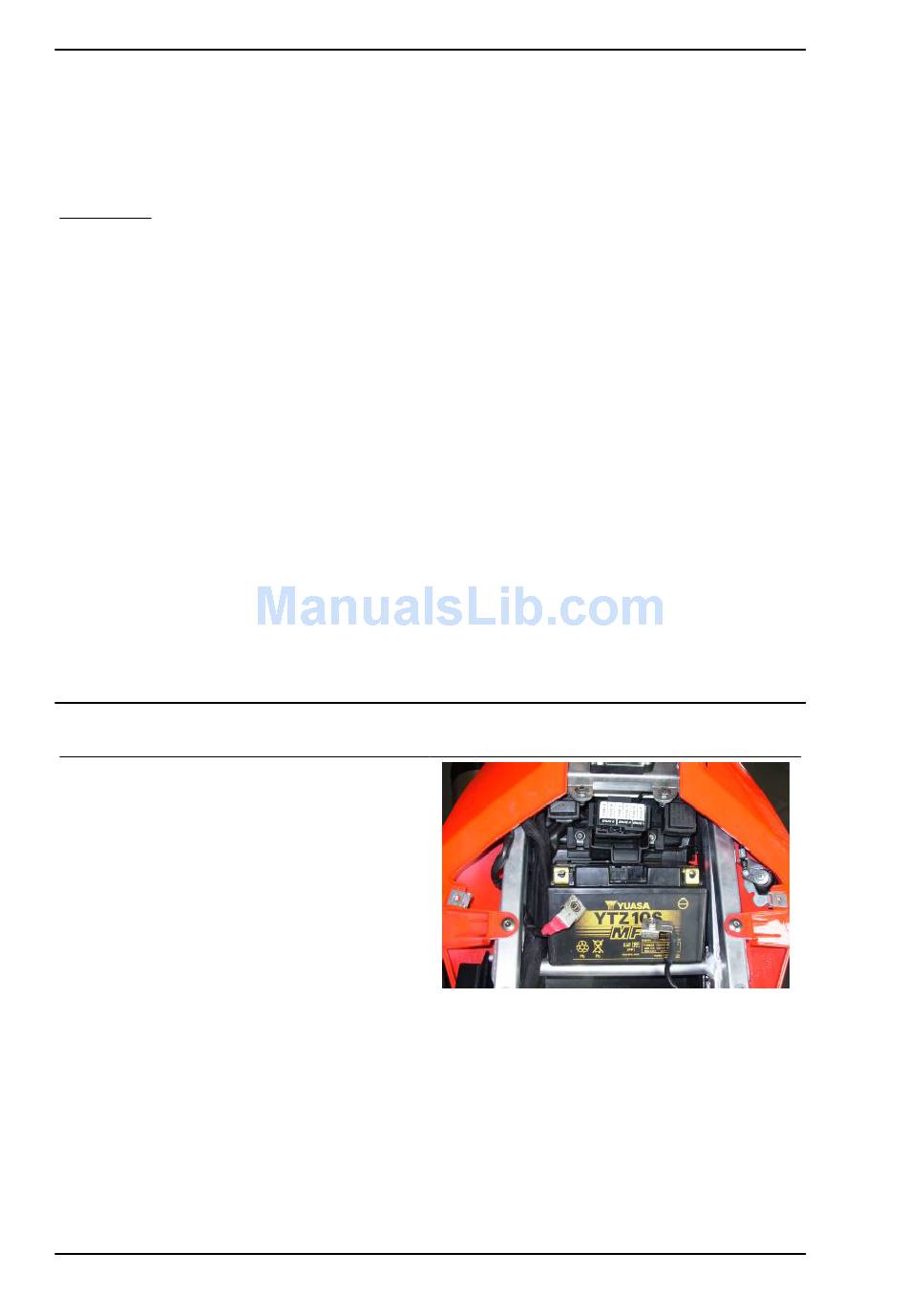

Battery

Function
Electrically supply the vehicle: battery YTZ 10 S
MF is already activated, loaded and sealed; or, al-
ternatively, battery YT 12A - BS, which must be
activated and loaded.
Level in wiring diagram:
Battery recharge
Location:
•
on the vehicle: under the saddle
•
connector: on the battery
Electrical characteristics:8.6 Ah
Pin out:
1. Positive pole (red): approx. 12.6 V
2. negative pole (black): ground connection
DIAGNOSIS INSTRUMENT: PARAMETERS
ELE SYS - 148
RSV4 R
