Instrument Cluster Support; Front Mudguard - APRILIA RSV4 R Service Station Manual

RSV4 R

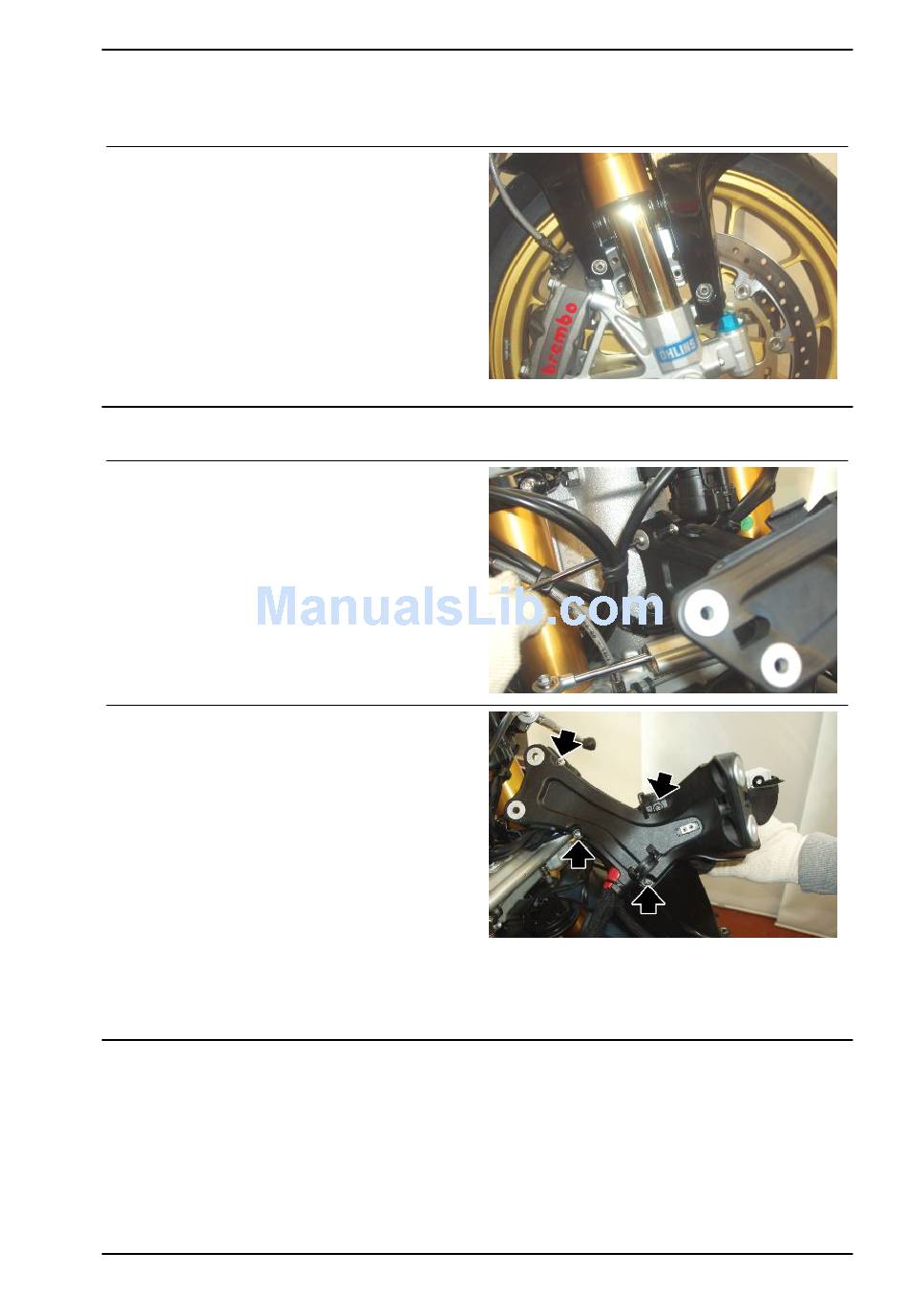

Front mudguard

•
Working from both sides, unscrew and
remove the two screws.
•
Remove the front mudguard.

Instrument cluster support

REMOVAL
•
Remove the instrument panel.
•
Working on both sides, unscrew and
remove the two screws fastening the
arch brace to the headstock.
•
Retrieve the cable grommet.
•
Unscrew and remove the five semi-
arch brace fixing screws.
See also
Instrument panel
Bodywork
BODYW - 463
