Generator Side - APRILIA RSV4 R Service Station Manual

RSV4 R

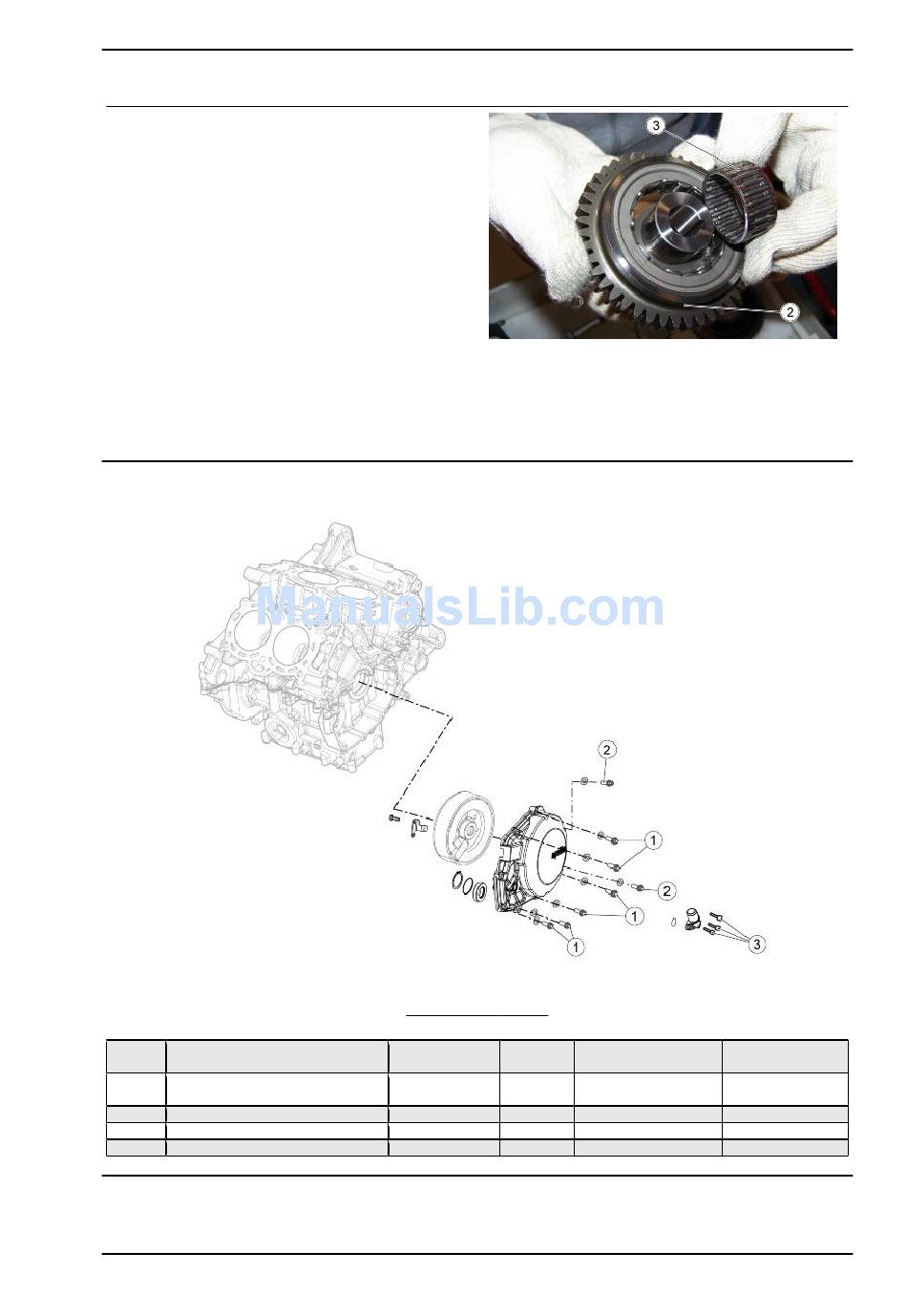

If deformations or broken material are found on the
sliding surface, replace the freewheel gear (2).
Check the freewheel sliding surface (2) for wear.
Make sure that the woodruff key slot is in perfect
condition.
Remove the needle cage (3) and the roller cage (4) from their housings on the freewheel (2) and check
the rollers/needles for wear.
Check for wear on the freewheel sliding surface (2).

Generator side

pos. Description
1 Screws fastening cover onto centre
pins
2 Cover fastener screws, alternator
side
3 Blow-by union fastener screws
- Stator fixing screw UNI 5931 CL8.8
- Flanged screw
A
LTERNATOR COVER
Type Quantity
M6x25 6
M6x40 2
M5x16 3
M6x25 3
M5x12 1
Torque
12 Nm (8.85 lbf ft)
12 Nm (8.85 lbf ft)
7 Nm (5.16 lbf ft)
10 Nm (7.37 lbf ft) Loct. 243
6 Nm (4.42 lbf ft) Loct. 243
Engine
Notes
-
-
-
ENG - 257
