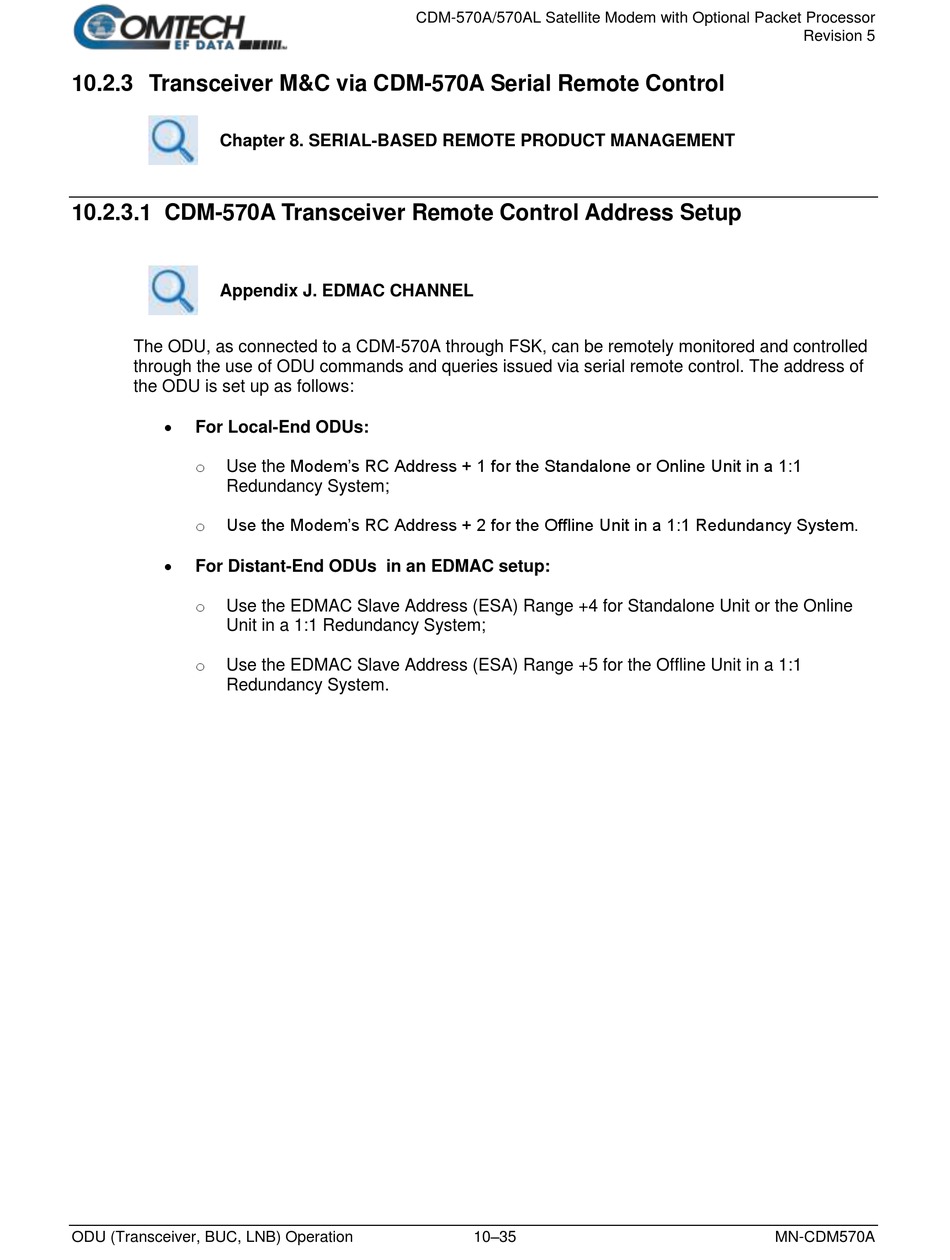

10.2.3 Transceiver M&C via CDM-570A Serial Remote Control
Chapter 8. SERIAL-BASED REMOTE PRODUCT MANAGEMENT
10.2.3.1

C DM-570A Transceiver Remote Control Address Setup

3 B 3 B
Appendix J. EDMAC CHANNEL
The ODU, as connected to a CDM-570A through FSK, can be remotely monitored and controlled
through the use of ODU commands and queries issued via serial remote control. The address of
the ODU is set up as follows:

For Local-End ODUs:
Use the Modem's RC Address + 1 for the Standalone or Online Unit in a 1:1
o
Redundancy System;
Use the Modem's RC Address + 2 for the Offline Unit in a 1:1 Redundancy System.
o

For Distant-End ODUs in an EDMAC setup:
o
Use the EDMAC Slave Address (ESA) Range +4 for Standalone Unit or the Online
Unit in a 1:1 Redundancy System;
o
Use the EDMAC Slave Address (ESA) Range +5 for the Offline Unit in a 1:1
Redundancy System.
ODU (Transceiver, BUC, LNB) Operation
CDM-570A/570AL Satellite Modem with Optional Packet Processor
10–35
Revision 5
MN-CDM570A
