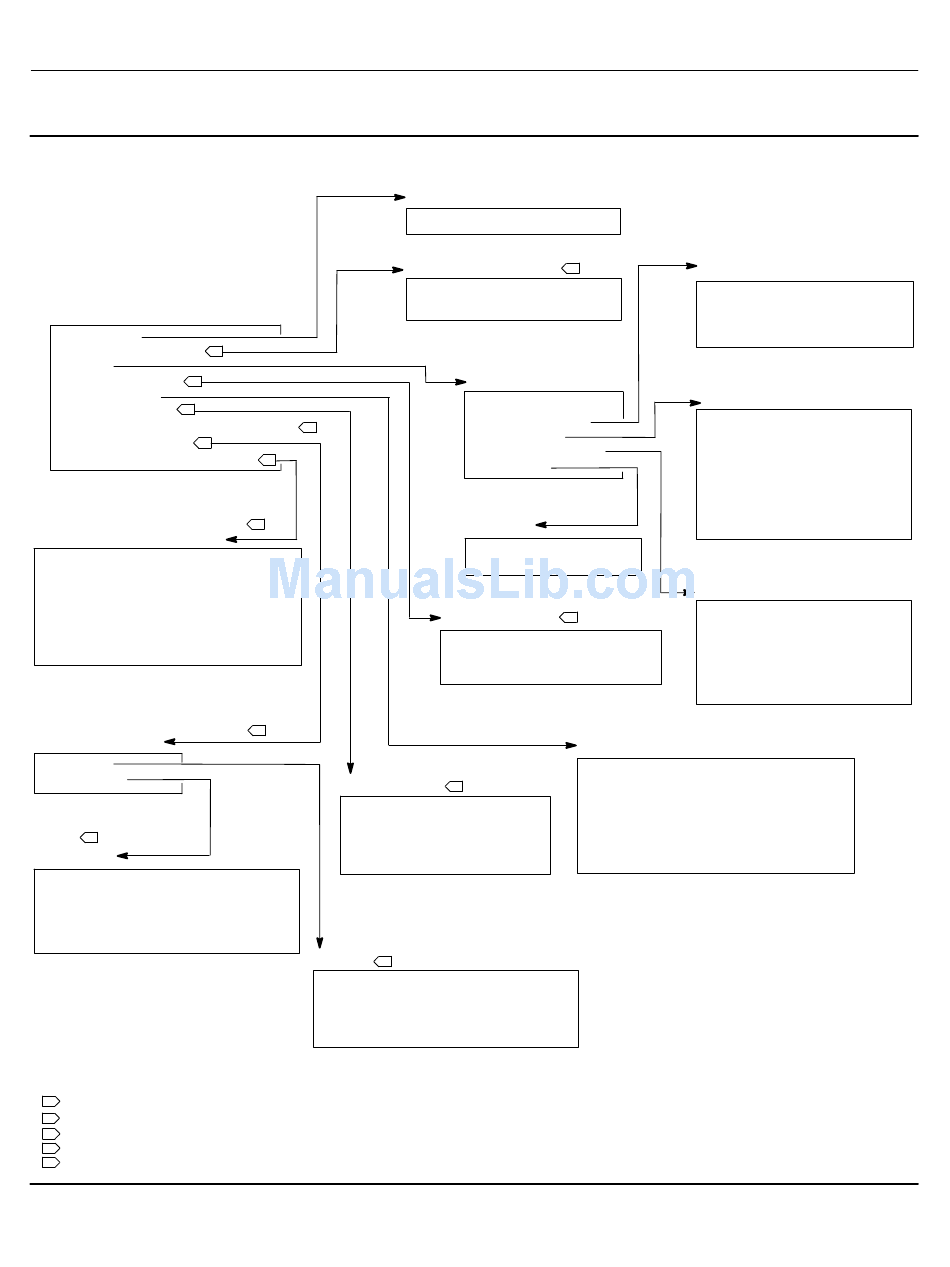

Figure B-8. Alert Setup (2-3)
Alert Setup
1 Electronics
2 Supply Pressure Alert
1
3 Travel
4 Pressure Fallback
2
5 Travel History
3
6 EPPC Deviation
7 Output Circuit Comm Failure Enable
8 Shutdown On Alert
5
9 Alert Record/Instrument Time
2-3-5 (HC)
2-3-7 (AD, PD)
2-3-9 (ODV)
Alert Record/Instrument Time
1 Alert Record Not Empty Enable
2 Alert Record Full Enable
3 View Alert Records
4 Clear Records
5 Instrument Alert Record
6 Instrument Time is Approximate Enable
7 Edit Instrument Time
2-3-4 (HC)
2-3-6 (AD, PD)
2-3-8 (ODV)
Shutdown On Alert
1 Sensors
2 Electronics
2-3-4-1 (HC)
2-3-6-1 (AD, PD)
5
2-3-8-1 (ODV)
Electronics
1 Drive Current Failure Shutdown
2 Critical NVM Failure Shutdown
3 Non-Critical NVM Failure Shutdown
4 Flash Integrity Failure Shutdown
5 Reference Voltage Failure Shutdown
NOTES:
1 SUPPLY PRESSURE LO ALERT IS AVAILABLE FOR INSTRUMENT LEVEL AD, PD, AND ODV.
2 PRESSURE FALLBACK IS AVAILABLE FOR INSTRUMENT LEVEL AD, PD, AND ODV.
3 EPPC DEVIATION IS AVAILABLE FOR INSTRUMENT LEVEL ODV.
4 OUTPUT CIRCUIT COMM FAILURE ENABLE IS AVAILABLE WHEN THE TRANSMITTER FUNCTION IS CONFIGURED.
5 FAST KEY SEQUENCES FOR THESE MENUS DROP ONE MENU SEQUENCE WHEN THE TRANSMITTER FUNCTION IS NOT CONFIGURED.
2-3-1
Electronics
1 Drive Signal Alert Enable
2-3-2 (AD, PD, ODV)
Supply Pressure Lo Alert
1 Supply Pressure Lo Alert Enable
2 Supply Pressure Lo Alert Point
4
5
5
5
2-3-6 (ODV)
EPPC Deviation
1 EPPC Deviation Alert Enable
2 EPPC Set Point
3 EPPC Deviation Alert Point
4 EPPC Deviation Time
2-3-4-2 (HC)
2-3-6-2 (AD, PD)
2-3-8-2 (ODV)
Sensors
5
1 Travel Sensor Failure Shutdown
2 Temp Sensor Failure Shutdown
3 Minor Loop Sensor Failure Shutdown
4 Pressure Sensor Failure Shutdown
1
2-3-2 (HC)
2-3-3 (AD, PD, ODV)
Travel
1 Travel Alert DB
2 Travel Deviation
3 Travel Limit
4 Travel Limit/Cutoff
5 Integrator
2-3-2-5 (HC)
2-3-3-5 (AD, PD, ODV)
Integrator
1 Integrator Sat Hi Enable
2 Integrator Sat Lo Enable
2-3-4 (AD, PD, ODV)
Pressure Fallback
2
1 Pressure Fallback Active Enable
2 Travel/Pressure Select
3 Fallback Recovery
2-3-3 (HC)
2-3-5 (AD, PD, ODV)
Travel History
1 Cycle Count/Travel Accum Deadband
2 Cycle Count Alert Enable
3
3 Edit Cycle Counts
4 Cycle Count Alert Point
5 Travel Accumulator Alert Enable
6 Edit Travel Accumulator
7 Travel Accumulator Alert Point
Field Communicator Menu Trees
February 2017
2-3-2-2 (HC)
2-3-3-2 (AD, PD, ODV)
Travel Deviation
1 Travel Deviation
2 Travel Deviation Alert Enable
3 Travel Deviation Alert Point
4 Travel Deviation Time
2-3-2-3 (HC)
2-3-3-3 (AD, PD, ODV)
Travel Limit
1 Travel Alert Hi Hi Enable
2 Travel Alert Hi Hi Point
3 Travel Alert Lo Lo Enable
4 Travel Alert Lo Lo Point
5 Travel Alert Hi Enable
6 Travel Alert Hi Point
7 Travel Alert Lo Enable
8 Travel Alert Lo Point
2-3-2-4 (HC)
2-3-3-4 (AD, PD, ODV)
Travel Limit/Cutoff
1 Travel Limit/Cutoff Hi Enable
2 Hi Limit/Cutoff Point
3 Hi Limit/Cutoff Select
4 Travel Limit/Cutoff Lo Enable
5 Lo Limit/Cutoff Point
6 Lo Limit/Cutoff Select
